Facade Lighting Solutions

Architectural Illumination with Precision and Purpose

Unilamp engineers premium facade lighting solutions that reveal the architectural character of buildings after dark transforming exteriors, landmarks, and structural elements into compelling nighttime experiences. A well-illuminated facade defines a building's identity, reinforces its design intent, and creates a visual presence that extends naturally from day into night.

With over 33 years of outdoor lighting manufacturing expertise, every Unilamp facade luminaire is designed, manufactured, and tested in Thailand validated through Unilab, Unilamp's in-house testing laboratory accredited to ISO/IEC 17025 under ILAC-MRA and engineered to perform in the most demanding architectural environments worldwide.

What Facade Lighting Achieves

Effective facade lighting does far more than illuminate a building exterior. It reveals texture, depth, and material quality that daylight flattens. It defines the hierarchy of architectural elements distinguishing columns, reveals, cornices, and surface details with precision. It creates visual landmarks that contribute to the identity of a city, development, and brand. And when it is engineered with the right combination of optics, color rendering, and control, it does all of this without glare, light pollution, or premature maintenance.

Unilamp's Facade Lighting Portfolio

Unilamp offers a comprehensive range of luminaire types for facade and architectural applications covering wall surface lights, inground uplighters, on-ground uplighters, linear lights, and spotlights. Luminaire is engineered to IEC 60598, manufactured from LM6 die-cast aluminum with Unishield coating, and available in five standard colors plus custom RAL finishes.

LuxBeat — Linear Light

Architectural edge lighting, building reveals, step details, and fine linear accent applications require a miniature linear luminaire that delivers uniform, shadow-free output from every angle including at connection points where conventional linear systems produce visible dark zones.

LuxBeat's patented optical system eliminates dark angles at both ends and at every connection point providing homogeneous linear illumination regardless of viewing angle. Top-bendable and cuttable on-site for precise installation fitting. LuxBeat XL extends the family with an aluminum housing, dedicated wiring channel, and multiple mounting configurations. LuxBeat L provides a new flexible mounting solution. Available in standard and RGBW versions.

• LuxBeat: 680–2,030 lm/m | 7–20W/m | 3000K, 4000K, RGBW
• LuxBeat L 500/1000/2000: 210–1,540 lm | 7–28W | 3000K, RGBW
• LuxBeat XL 500/1000/2000: 210–3,920 lm | 9–36W | 3000K, RGBW

LuxBeat: OD-8101
LuxBeat L: OD-8117, OD-8118, OD-8119
LuxBeat XL: OD-8111, OD-8112, OD-811
Click here to explore LuxBeat



ALPHA — Spotlight

Precise accent lighting for facades, columns, signage, landscape features, and architectural details requires a compact spotlight that delivers accurate beam control across a wide range of mounting configurations from ground spikes and tree straps to pole clamps and wall arms.

ALPHA is engineered from scratch for architectural outdoor applications — high-quality polycarbonate optics delivering accurate beam control across narrow, medium, wide, elliptical H, and elliptical V distributions. Available in Micro, Mini Round, Mini Square, and Mini Round Arm configurations with an extensive modular accessory system including honeycombs, glare shields, snoots, earth spikes, tree straps, pole clamps, and mounting arms.

• Micro ALPHA: 100–390 lm | 3.3–3.9W | 12/24Vdc | Color temperatures: 2700K, 3000K, 4000K
• Mini ALPHA Round: 260–1,620 lm | 5–15W | On-Off, 1-10V, DALI | Color temperatures: 2700K, 3000K, 4000K
• Mini ALPHA Square: 470–1,270 lm | 8–15W | On-Off, 1-10V, DALI | Color temperatures: 2700K, 3000K, 4000K

Micro ALPHA: OD-5914, OD-5915, OD-5927, OD-5928
Mini ALPHA Round: OD-5921, OD-5922, OD-5972, OD-5973
Mini ALPHA Square: OD-5943, OD-5945, OD-5960, OD-5943, OD-5945, OD-5960
Click here to explore ALPHA

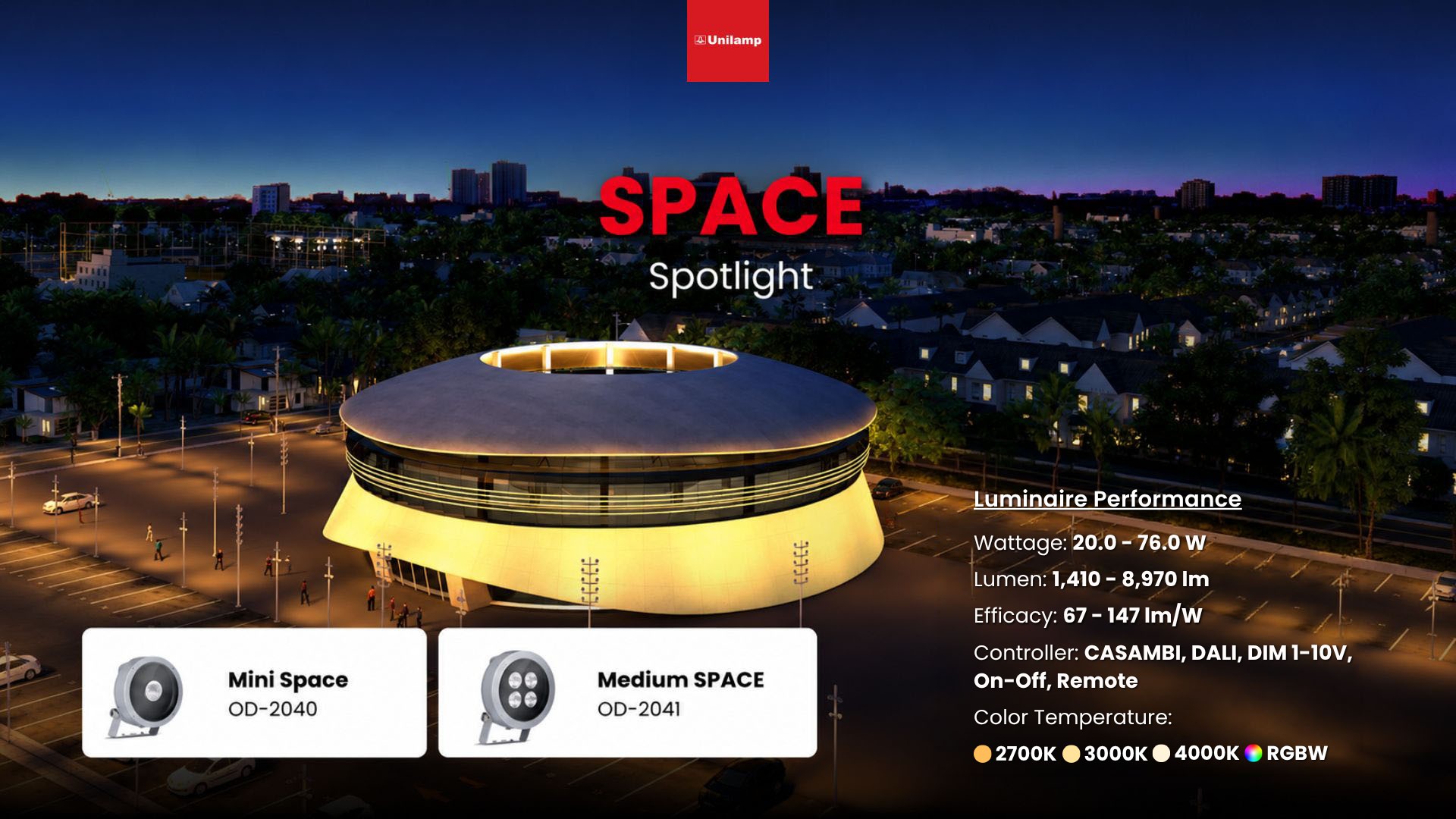

SPACE — Spotlight

Demanding facade, landmark, and large-scale architectural floodlighting applications require a next-generation floodlight with the highest lumen output, the most precise beam distributions including ultra-narrow beams for tall structures and full smart control integration for sophisticated lighting management.

SPACE is a range of next-generation floodlights with six tailored light engine options covering the full range of architectural floodlighting demands. High-efficacy 3-step SDCM COB LEDs deliver up to 8,970 lm. Ultra-narrow beam down to 8° enables precise illumination of tall architectural features at distance. RGBW version with optics-based color mixing for impactful dynamic lighting. Tunable white available for tasteful color temperature variation. CASAMBI wireless control, DALI2, and built-in photocell options for full smart integration.

• Mini SPACE: 1,410–4,980 lm | 20–35W | 2700K, 3000K, 4000K, RGBW | Controller: On-Off, 1-10V, DALI, CASAMBI, Remote
• Medium SPACE: 3,430–8,970 lm | 38–76W | 2700K, 3000K, 4000K | OD-2041 | Controller: On-Off, 1-10V, DALI, CASAMBI, Remote

Mini SPACE: OD-2040
Medium SPACE: OD-2041
Click here to explore SPACE



AGAR — Wall Surface Light

Entrance columns, boundary walls, and architectural surfaces in public and residential environments require lighting that delivers even, symmetrical distribution without glare without dominating the visual quality of the space it occupies.

AGAR provides perfectly symmetrical light distribution illuminating both walls and ground surfaces evenly, with vandal-resistant polycarbonate diffusers in prismatic or opal finishes that minimize glare. The E27 holder option supports LED retrofit flexibility. Available in three color temperatures with high CRI for seamless integration into professional and architectural environments.

• Lumen: 190–210 lm | 10–12W | 17–21 lm/W
• Color temperatures: 3000K, 4000K | Controller: On-Off

Mini AGAR Wall Light: OD-7019
Click here to explore AGAR

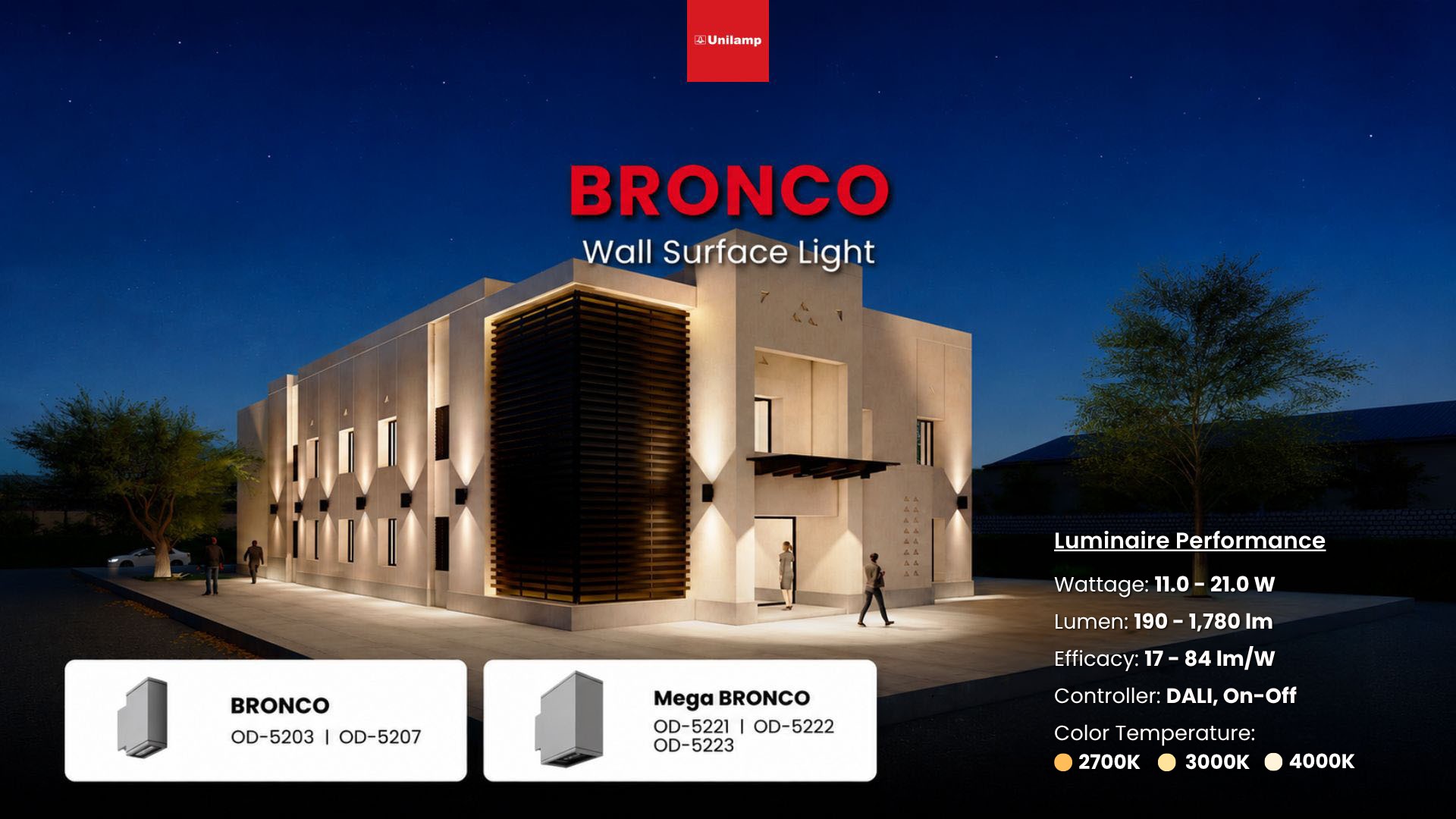

BRONCO — Wall Surface Light

Building facades, high ceilings, and columns require versatile wall-mounted luminaires that deliver controlled, directional light across multiple architectural applications while maintaining reliable performance in high-ambient-temperature outdoor conditions.

BRONCO is engineered for both wall surface and ceiling mount configurations, offering wide-range optical distributions: narrow, wide, asymmetric, and sharp elliptica in up, down, and up/down configurations. Available with DALI control and RGBW for dynamic applications. The Mega BRONCO extends capability to larger architectural scales.

• Lumen: 190–1,780 lm | 11–21W | 17–84 lm/W Color temperatures: 2700K, 3000K, 4000K | Controller: On-Off, DALI

BRONCO: OD-5203 to OD-5215
Mega BRONCO: OD-5221, OD-5222, OD-5223
Click here to explore BRONCO



SHOOTER — On Ground Light

Traditional inground uplighters are not always viable installation depth limitations, hard surfaces, or cost constraints on certain projects require a ground-surface alternative that delivers equivalent uplighting performance without recess installation.

SHOOTER is engineered from the outset as an IP67-rated ground-surface uplighter,  not a standard luminaire adapted for the role. Pre-wired with a factory-fitted cable, high-specular reflectors, and a nano-ceramic coated LM6 aluminum housing with double-layer coating. Available with RGBW for dynamic color applications. Mini SHOOTER provides a more compact option for constrained installations.

• Lumen: 190–4,200 lm | 11–41W | 16–127 lm/W | Color temperatures: 2700K, 3000K, 4000K, RGBW | Controller: On-Off, 1-10V, DALI

SHOOTER: OD-9900
Mini SHOOTER: OD-9901
Click here to explore SHOOTER



ARC — Inground Light

Uplighting columns, building bases, and architectural features from ground level requires a walkover-rated inground luminaire that allows precise aiming without disrupting the IP rating — a combination that standard inground products rarely deliver without opening the fixture and compromising the seal.

ARC's innovative external aiming mechanism allows precise directional adjustment with a standard screwdriver or hex key without opening the fixture — preserving the IP rating through final commissioning. Pre-wired with anti-humidity protection and internal potting, ARC incorporates COB single-source illumination for smooth, consistent uplighting and a 4-in-1 RGBW chip for dynamic color applications.

• Lumen: 610–2,700 lm | 19–27W | 27–103 lm/W | Color temperatures: 2700K, 3000K, 4000K, RGBW | Controller: On-Off, 1-10V, DALI, Remote

ARC: OD-9060
Mini ARC: OD-9059
Click here to explore ARC



QUARK — Inground Light

Walkover-rated uplighting for facades, columns, planting, and architectural features at pedestrian level requires a shallow-housing inground luminaire one that fits within constrained installation depths while delivering high-quality illumination with flexible beam distributions.

QUARK's shallow housing minimizes recess depth requirements while delivering 1,440–3,010 lm with multiple beam options including narrow, medium, wide, and asymmetric distributions. Available in round and square formats, internally potted to prevent humidity and condensation. Honeycomb louver, softening lens, and gel-filled IP68 connector available as accessories.

• Mini QUARK Round: 1,470–3,010 lm | 19–32W | 2700K, 3000K, 4000K, RGBW
• Mini QUARK Square: 1,440–2,860 lm | 19–32W | 2700K, 3000K, 4000K, RGBW

Mini QUARK Round: OD-9035
Mini QUARK Square: OD-9045
Click here to explore QUARK

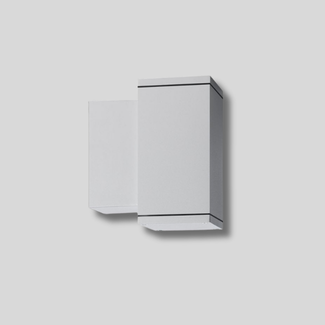

CORE — Wall Surface Light

Square and geometric architectural languages require luminaires whose form complements rather than disrupts the visual composition while delivering optical precision across multiple mounting orientations.

CORE's clean square design is available in Mini and Maxi sizes, with precision-engineered parabolic reflectors and directional lenses developed through CAD providing narrow, medium, wide, asymmetric, and sharp elliptical beam options in up, down, and up/down configurations. Maxi CORE reaches up to 9,400 lm at 72W for large-scale facade applications.

• Mini CORE: 160–1,580 lm | 10–15W | Controller: On-Off, 1-10V, DALI
• Maxi CORE: 1,350–9,400 lm | 20–72W | Controller: On-Off, 1-10V, DALI
• Color temperatures: 2700K, 3000K, 4000K

Mini CORE: OD-5111, OD-5112, OD-5144
Maxi CORE: OD-5101, OD-5102, OD-5145
Click here to explore CORE

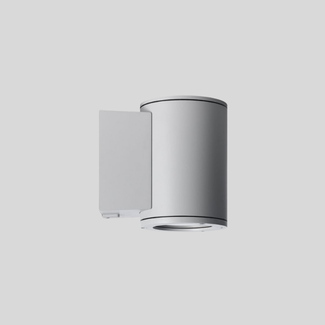

TUBE — Wall Surface Light

Cylindrical columns, curved architectural surfaces, and structural elements that demand a luminaire whose form echoes the geometry it illuminates requiring both aesthetic alignment and optical flexibility.

TUBE's classic cylindrical design is available in Mini, Medium, and Maxi sizes, with narrow, medium, wide, asymmetric, and sharp elliptical beam options in up, down, and up/down configurations. Maxi TUBE supports RGBW and DMX for dynamic color applications. The innovative lever clamping system simplifies installation with a single tool.

• Mini TUBE: 160–3,520 lm | 10–28W | Controller: On-Off, 1-10V, DALI
• Medium TUBE: 1,120–4,520 lm | 19–40W | Controller: On-Off, 1-10V, DALI
• Maxi TUBE: 880–9,160 lm | 20–72W | Controller: On-Off, 1-10V, DALI, DMX, RGBW
• Color temperatures: 2700K, 3000K, 4000K

Mini TUBE: OD-5001, OD-5004, OD-5044 | Medium TUBE: OD-5002, OD-5005, OD-5045 | Maxi TUBE: OD-5003, OD-5006, OD-5046
Click here to explore TUBE

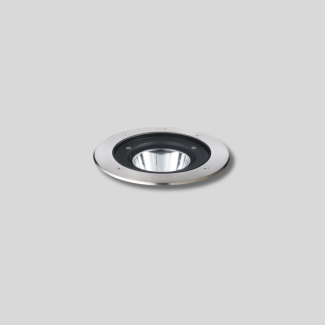

GRAVITON — Inground Light

High-output uplighting for tall columns, flagpoles, large trees, and landmark architectural features requires a load-bearing inground luminaire that delivers powerful illumination with glare control in environments where access for maintenance must be minimized.

GRAVITON built to withstand loads up to 1,000kg, internally potted against humidity and condensation, with a deep-set light source that minimizes glare. A split light glare cut-off accessory is available for further controlled illumination. Supporting CASAMBI wireless control for smart lighting integration.

• Lumen: 1,960–3,390 lm | 19–28W | 96–130 lm/W | Color temperatures: 2700K, 3000K, 4000K | Controller: On-Off, 1-10V, DALI, CASAMBI

GRAVITON Round: OD-9091
Click here to explore GRAVITON

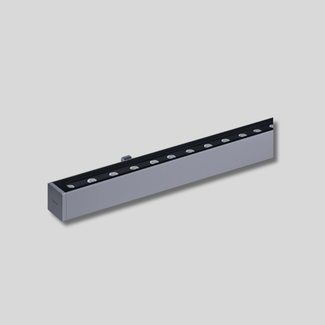

SIRIUS — Linear Light

Continuous linear illumination of facades, glazing systems, architectural edges, and building envelopes requires a linear luminaire versatile enough to install in multiple orientations wall-mounted, ceiling-mounted, inground, and underwater without compromising optical performance or visual consistency.

SIRIUS is available in 300mm, 600mm, and 1200mm lengths across wall surface, ceiling mount, inground, and underwater configurations with narrow, medium, wide, asymmetric, and elliptical beam options including dedicated asymmetric wall washer and wash glazing distributions. Screw-less, clean-cut design integrates seamlessly into architectural surfaces. A comprehensive range of connecting accessories enables fully customized linear installations.

• Lumen: 370–4,900 lm | 5–46W | 60–128 lm/W | Color temperatures: 2700K, 3000K, 4000K | Controller: On-Off, 1-10V, DALI, Remote

SIRIUS Wall: OD-8033, OD-8031, OD-8032
SIRIUS Ceiling: OD-4233, OD-4231, OD-4232
SIRIUS Inground: OD-9068, OD-9066, OD-9067
Click here to explore SIRIUS

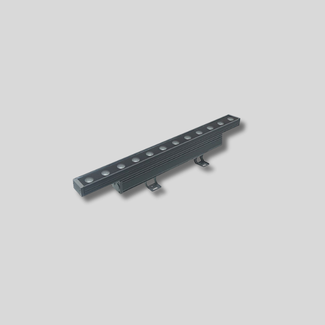

ALESSA — Linear Light

Low-voltage wall washing applications on facades, niches, and architectural surfaces require a compact, adjustable linear luminaire — one that installs discreetly in confined spaces while delivering precise, even wall washing performance with full control system integration.

ALESSA's small overall dimensions enable unobtrusive installation in niches and on varied surfaces. Adjustable mounting brackets allow fine-tuning of light direction on-site. The RGBW version supports DMX-RDM control for full dynamic color. The monochromatic version supports optional DALI for building automation integration. High-corrosion-resistant aluminum housing with low copper content.

• Lumen: 330–2,640 lm | 12–36W | 27–110 lm/W | Color temperatures: 3000K, RGBW | Controller: Remote, DMX | Input: 24Vdc

ALESSA 500-CV: OD-8018
ALESSA 1000-CV: OD-8019
ALESSA/1 500-CV: OD-8050
ALESSA/1 500 DMX-CV: OD-8055
ALESSA/1 1000-CV: OD-8051
ALESSA/1 1000 DMX-CV: OD-8056
Click here to explore ALESSA

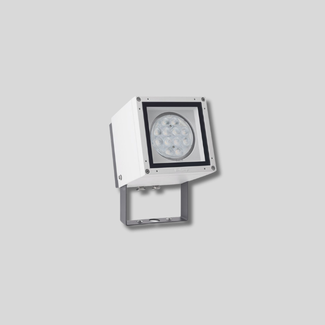

KUBIK — Spotlight

Geometric architectural environments require a spotlight whose form reflects the design language of the space — a cubic profile that integrates naturally into contemporary architecture while delivering high-efficiency accent illumination across a wide range of mounting applications.

KUBIK's cube and rectangular forms are available in Micro and Mini sizes, with flush glass covers that prevent dust and water accumulation. High-efficiency lenses and reflectors with a graduated aiming scale allow precise directional adjustment. Full modular accessory system including tree straps, earth spikes, pole clamps, and ground mounts. Available in two-tone color options for distinctive architectural integration.

• Micro KUBIK: 220–330 lm | 3.3–3.9W | 12/24Vdc | OD-5948, OD-5949 | Color temperatures: 2700K, 3000K, 4000K
• Mini KUBIK: 220–1,740 lm | 8–14W | On-Off, DALI | OD-5940, OD-5941| Color temperatures: 2700K, 3000K, 4000K

Click here to explore KUBIK

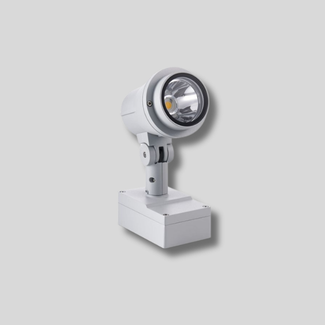

SONIC — Spotlight

Medium to large-scale accent and floodlighting of facades, trees, sculptures, and open spaces requires a versatile spotlight family with a wide range of output levels, mounting options, and accessories. One that adapts to the full complexity of large architectural and landscape projects.

SONIC is available in Mini, Medium, and Mega sizes across Spike, Stand, and Arm configurations — providing lumen output from 200 to 8,160 lm with narrow, medium, wide, sharp elliptical H, and sharp elliptical V beam options. COB LED with 3-step SDCM and high CRI ensures consistent color quality. Glare shield caps, ring louvers, earth spikes, tree straps, pole clamps, and wall arrays are all available as standard accessories.

• Lumen: 200–8,160 lm | 10–57W | 18–143 lm/W | Color temperatures: 2700K, 3000K, 4000K | Controller: On-Off, 1-10V, DALI

Mini SONIC: OD-5931
Medium SONIC: OD-5933
Mega SONIC: OD-5935
SONIC Stand: OD-5831, OD-5833, OD-5835
SONIC Arm: OD-5932, OD-5934, OD-5936
Click here to explore SONIC



VISTA — Spotlight

Residential and boutique commercial environments require a compact, clean-profile spotlight that delivers reliable optical performance with minimal visual intrusion without the complexity of larger architectural spotlight families.

VISTA's compact cylindrical form and die-cast aluminum housing integrate naturally into residential and commercial environments. Advanced molded PC lens with adjustable aiming mechanism and graduated scale provides precise beam targeting. On-Off operation simplifies installation. Honeycomb louver, glare shield cap, and short snoot available as accessories for enhanced visual comfort.

• Lumen: 400–480 lm | 5W | 80–96 lm/W | Color temperature: 3000K | Controller: On-Off

VISTA: OD-5930
Click here to explore VISTA



Facade Lighting Applications

Unilamp facade luminaires are specified across commercial towers, luxury hotels and resorts, residential condominiums and villas, cultural and worship buildings, retail developments, educational institutions, civic landmarks, and public infrastructure worldwide including landmark projects such as One Bangkok, RIU Hotel Dubai, St. Raphael Catholic Church Thailand, and Mjøstårnet Norway.

Specification Support

Complete technical documentation including IES and LDT photometric files, 2D drawings, installation manuals, and compliance certificates is available for every facade luminaire. Unilamp's Lighting Design Center provides photometric analysis, DIALux simulation support, and product samples for project evaluation. Headquarters and regional teams across Thailand, SAARC, the Middle East, and ASEAN and Hong Kong provide on-site technical support throughout specification and installation.

For projects requiring tailored facade lighting solutions, Unimodification delivers customized optics, finishes, controls, and mounting configurations without compromising quality, compliance, or delivery timeline.

To explore Unilamp's facade lighting portfolio or request technical support for your project, visit www.unilamp.co.th or contact online@unilamp.co.th
