UniShield16



Unilamp provides a cutting-edge 16-stage color coating process that guarantees enhanced chemical, weather, corrosion, and mechanical protection for all its luminaires. Our commitment to long-lasting and vibrant color is unmatched while ensuring minimal environmental impact.







16 Stages of the Color Coating Process



• Loading Station to begin the 16 stages

• Stage 1 - Degreasing Station 1

• Stage 2 - Degreasing Station 2

• Stage 3 - RO Water Rinse Station 1

• Stage 4 - RO Water Rinse Station 2

• Stage 5 - Deoxidizing Station

• Stage 6 - RO Water Rinse Station 3

• Stage 7 - RO Water Rinse Station 4

• Stage 8 - Nano Ceramic Coating Station

• Stage 9 - RO Water Rinse Station 5

• Stage 10 - DI Water Rinse Station 1

• Stage 11 - Drying Chamber Station

• Stage 12 - Primary Coating Station

• Stage 13 - Curing Chamber Station

• Stage 14 - Top Coating Station 1

• Stage 15 - Top Coating Station 2

• Stage 16 - Final Cure Oven Station

• Unload Station and pass to Quality Control Station



As the first stage in the specialized UniShield16 coating journey, each fixture receives an exhaustive surface refinement treatment.

Utilizing a fully automatic high-pressure sand-blasting chamber ensures that all fixtures are thoroughly prepared to provide a highly reliable, consistent, and durable finish.



Degreasing

At the initial pretreatment stage, close attention is paid to completely removing all dirtparticles, oil, and other foreign contaminants.



RO Water Rinse

Reverse osmosis is a water purification process that uses a semipermeable membrane to remove impurities, contaminants, and unwanted substances. Rinsing RO water through 5 stations ensures that the luminaires are thoroughly cleaned to provide a superior-quality product that meets the highest standards of performance and aesthetics.





Coating technology from the world-leading electrostatic powder coating material manufacturer. Powder coating requires a perfect combination of nozzle design and high voltage supply to achieve a homogeneous powder cloud. The high voltage field plays a critical role in ensuring perfect powder atomisation and charging.





Nano Ceramic Coating

The zirconium-based surface conversion comprises Nano-Ceramics and is free of nickel, phosphates, VOCs, and regulated chemicals.



DI Water Rinse

Applying De-Ionised water in the upcoming stage to provide stability, purity, and sanitation as a processing element before passing along to the heart of our surface conversion stage, "Nano-Ceramic coating".



Drying Curing Chamber

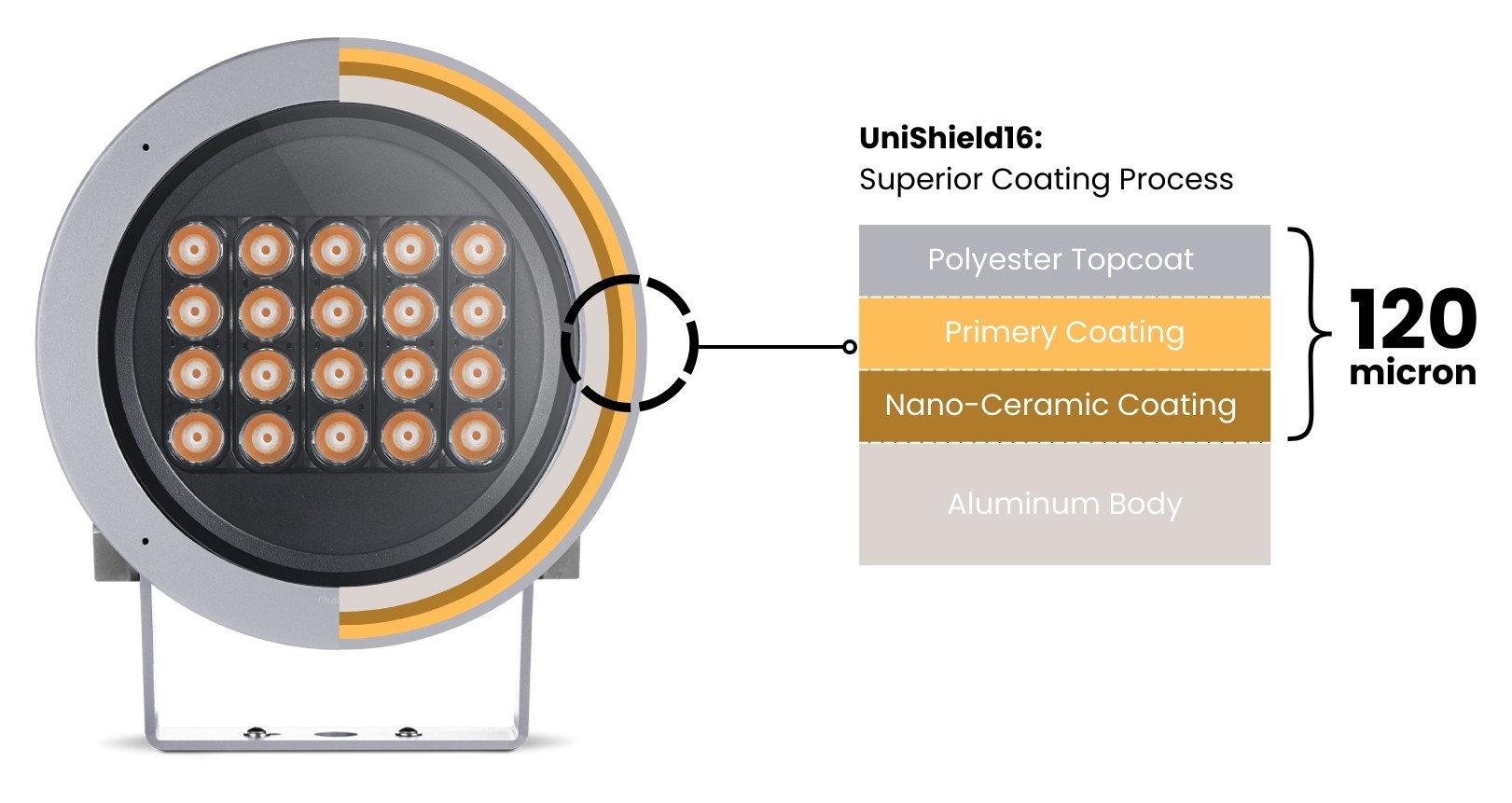

A long-lasting and durable color finish is achieved through numerous coating layers that offer outstanding protection.



Primer Coating

A dry finishing process that uses finely ground particles of pigment and resin that are electrostatically charged and sprayed onto electrically grounded parts.

The charged powder particles form a powerful surface bond area and are held until melted and fused into a uniform coating in a curing oven.

Specially formulated epoxy-polyester resin-based is applied as a primer coat on aluminium alloys. The coating enhances the corrosion resistance property of aluminium when exposed to severe climatic conditions like coastal and snowy areas.

It also helps reduce blistering and other surface defects that may occur during the curing process.



Curing Chamber Station

At this stage, the primer is partially cured to gain excellent inter-coating adhesion with the top coat.



Top Coating Station

The final top coat process combines protective properties with excellent weather resistance with a long-lasting exterior grade Polyester powder with UV-Stabilised additives, giving exceptional color rendering on the products' surfaces.



Painting Gun

The painting line is fully equipped with both automatic and manual machine guns.



Final Cure Oven

In the final process of the 16 stages, the cure oven provides heat to promote chemical reactions that result in a hardened, durable, and fully cured coating.





Premium Quality Control

Ensuring the coating surface is second to none with several tests.



☑ Flexibility ☑ Film thickness ☑ Uniformity ☑ Adhesion ☑ Corrosion resistant ☑ Chemical resistant
