Mini TUBE - Surface Downlight

TUBE a family of cylindrical shaped wall light, ceiling light and Area light. The body components are made from extruded and LM6 aluminium which make them highly corrosion resistant to any extreme environment. TUBE is protected from the ingress of dust and water and are used in both outdoor and indoor environments. Fitted with COB LED in three color temperature from 2700K, 3000K or 4000K with high CRI. HID light source and retrofit solution for E27 Led lamps are also available. TUBE can solve many lighting tasks in modern architectural surrounds and are generally used in illuminating columns and facades. The pole lights give a great level of downward light with symmetric wide beam, asymmetric forward throw or side throw light distributions. Catenary mounting of luminaires is great option for tasteful illumination of outdoor spaces. Flexible arrangement of the luminaire position enables lighting designers to set the light mood to a multitude of use cases. The innovative lever clamping system utilizes a single common tool for a trouble free easy installation. All commonly used catenary wires with a diameter of 4...8mm are suitable. Wire slope of up to 20° can be easily compensated. Catenary mount luminaires are equipped with a single prewired cable of 2000mm length. Double prewired cable for looping is available upon request.


Ordering Code : 4001-Q-3-646-XX
Lamp : LED Socket : N/A Wattage : 10 W Beam : Sharp Elliptical V Lumen : 200 lm CCT : 2700 K Controller : On-Off Specsheet :
Ordering Code : 4001-Q-4-646-XX
Lamp : LED Socket : N/A Wattage : 10 W Beam : Sharp Elliptical V Lumen : 200 lm CCT : 2700 K Controller : DIM 1-10V Specsheet :
Ordering Code : 4001-Q-5-646-XX
Lamp : LED Socket : N/A Wattage : 10 W Beam : Sharp Elliptical V Lumen : 200 lm CCT : 2700 K Controller : DALI Specsheet :
Ordering Code : 4001-5-3-503-XX
Lamp : LED Socket : N/A Wattage : 15 W Beam : 13° Lumen : 1590 lm CCT : 2700 K Controller : On-Off Specsheet :
 Phase Out Ordering Code : 4001-5-4-503-XX
Lamp : LED Socket : N/A Wattage : 15 W Beam : 13° Lumen : 1590 lm CCT : 2700 K Controller : DIM 1-10V Specsheet :
 Phase Out Ordering Code : 4001-5-5-503-XX
Lamp : LED Socket : N/A Wattage : 15 W Beam : 13° Lumen : 1590 lm CCT : 2700 K Controller : DALI Specsheet :
Ordering Code : 4001-6-3-503-XX
Lamp : LED Socket : N/A Wattage : 15 W Beam : 26° Lumen : 1540 lm CCT : 2700 K Controller : On-Off Specsheet :
 Phase Out Ordering Code : 4001-6-4-503-XX
Lamp : LED Socket : N/A Wattage : 15 W Beam : 26° Lumen : 1540 lm CCT : 2700 K Controller : DIM 1-10V Specsheet :
 Phase Out Ordering Code : 4001-6-5-503-XX
Lamp : LED Socket : N/A Wattage : 15 W Beam : 26° Lumen : 1540 lm CCT : 2700 K Controller : DALI Specsheet :
Ordering Code : 4001-7-3-503-XX
Lamp : LED Socket : N/A Wattage : 15 W Beam : 48° Lumen : 1500 lm CCT : 2700 K Controller : On-Off Specsheet :
 Phase Out Ordering Code : 4001-7-4-503-XX
Lamp : LED Socket : N/A Wattage : 15 W Beam : 48° Lumen : 1500 lm CCT : 2700 K Controller : DIM 1-10V Specsheet :
Ordering Code : 4001-7-5-503-XX
Lamp : LED Socket : N/A Wattage : 15 W Beam : 48° Lumen : 1500 lm CCT : 2700 K Controller : DALI Specsheet :
Ordering Code : 4001-Q-3-630-XX
Lamp : LED Socket : N/A Wattage : 15 W Beam : Sharp Elliptical V Lumen : 290 lm CCT : 2700 K Controller : On-Off Specsheet :
Ordering Code : 4001-Q-4-630-XX
Lamp : LED Socket : N/A Wattage : 15 W Beam : Sharp Elliptical V Lumen : 290 lm CCT : 2700 K Controller : DIM 1-10V Specsheet :
Ordering Code : 4001-Q-5-630-XX
Lamp : LED Socket : N/A Wattage : 15 W Beam : Sharp Elliptical V Lumen : 290 lm CCT : 2700 K Controller : DALI Specsheet :
Ordering Code : 4001-Q-3-647-XX
Lamp : LED Socket : N/A Wattage : 10 W Beam : Sharp Elliptical V Lumen : 200 lm CCT : 3000 K Controller : On-Off Specsheet :
Ordering Code : 4001-Q-4-647-XX
Lamp : LED Socket : N/A Wattage : 10 W Beam : Sharp Elliptical V Lumen : 200 lm CCT : 3000 K Controller : DIM 1-10V Specsheet :
Ordering Code : 4001-Q-5-647-XX
Lamp : LED Socket : N/A Wattage : 10 W Beam : Sharp Elliptical V Lumen : 200 lm CCT : 3000 K Controller : DALI Specsheet :
Ordering Code : 4001-5-3-901-XX
Lamp : LED Socket : N/A Wattage : 15 W Beam : 13° Lumen : 1680 lm CCT : 3000 K Controller : On-Off Specsheet :
 Phase Out Ordering Code : 4001-5-4-901-XX
Lamp : LED Socket : N/A Wattage : 15 W Beam : 13° Lumen : 1680 lm CCT : 3000 K Controller : DIM 1-10V Specsheet :
 Phase Out Ordering Code : 4001-5-5-901-XX
Lamp : LED Socket : N/A Wattage : 15 W Beam : 13° Lumen : 1680 lm CCT : 3000 K Controller : DALI Specsheet :
Ordering Code : 4001-6-3-901-XX
Lamp : LED Socket : N/A Wattage : 15 W Beam : 26° Lumen : 1620 lm CCT : 3000 K Controller : On-Off Specsheet :
 Phase Out Ordering Code : 4001-6-4-901-XX
Lamp : LED Socket : N/A Wattage : 15 W Beam : 26° Lumen : 1620 lm CCT : 3000 K Controller : DIM 1-10V Specsheet :
Ordering Code : 4001-6-5-901-XX
Lamp : LED Socket : N/A Wattage : 15 W Beam : 26° Lumen : 1620 lm CCT : 3000 K Controller : DALI Specsheet :
Ordering Code : 4001-7-3-901-XX
Lamp : LED Socket : N/A Wattage : 15 W Beam : 48° Lumen : 1580 lm CCT : 3000 K Controller : On-Off Specsheet :
 Phase Out Ordering Code : 4001-7-4-901-XX
Lamp : LED Socket : N/A Wattage : 15 W Beam : 48° Lumen : 1580 lm CCT : 3000 K Controller : DIM 1-10V Specsheet :
Ordering Code : 4001-7-5-901-XX
Lamp : LED Socket : N/A Wattage : 15 W Beam : 48° Lumen : 1580 lm CCT : 3000 K Controller : DALI Specsheet :
Ordering Code : 4001-Q-3-644-XX
Lamp : LED Socket : N/A Wattage : 15 W Beam : Sharp Elliptical V Lumen : 290 lm CCT : 3000 K Controller : On-Off Specsheet :
Ordering Code : 4001-Q-4-644-XX
Lamp : LED Socket : N/A Wattage : 15 W Beam : Sharp Elliptical V Lumen : 290 lm CCT : 3000 K Controller : DIM 1-10V Specsheet :
Ordering Code : 4001-Q-5-644-XX
Lamp : LED Socket : N/A Wattage : 15 W Beam : Sharp Elliptical V Lumen : 290 lm CCT : 3000 K Controller : DALI Specsheet :
Ordering Code : 4001-Q-3-648-XX
Lamp : LED Socket : N/A Wattage : 10 W Beam : Sharp Elliptical V Lumen : 210 lm CCT : 4000 K Controller : On-Off Specsheet :
Ordering Code : 4001-Q-4-648-XX
Lamp : LED Socket : N/A Wattage : 10 W Beam : Sharp Elliptical V Lumen : 210 lm CCT : 4000 K Controller : DIM 1-10V Specsheet :
Ordering Code : 4001-Q-5-648-XX
Lamp : LED Socket : N/A Wattage : 10 W Beam : Sharp Elliptical V Lumen : 210 lm CCT : 4000 K Controller : DALI Specsheet :
Ordering Code : 4001-5-3-904-XX
Lamp : LED Socket : N/A Wattage : 15 W Beam : 13° Lumen : 1760 lm CCT : 4000 K Controller : On-Off Specsheet :
 Phase Out Ordering Code : 4001-5-4-904-XX
Lamp : LED Socket : N/A Wattage : 15 W Beam : 13° Lumen : 1760 lm CCT : 4000 K Controller : DIM 1-10V Specsheet :
 Phase Out Ordering Code : 4001-5-5-904-XX
Lamp : LED Socket : N/A Wattage : 15 W Beam : 13° Lumen : 1760 lm CCT : 4000 K Controller : DALI Specsheet :
Ordering Code : 4001-6-3-904-XX
Lamp : LED Socket : N/A Wattage : 15 W Beam : 26° Lumen : 1700 lm CCT : 4000 K Controller : On-Off Specsheet :
 Phase Out Ordering Code : 4001-6-4-904-XX
Lamp : LED Socket : N/A Wattage : 15 W Beam : 26° Lumen : 1700 lm CCT : 4000 K Controller : DIM 1-10V Specsheet :
 Phase Out Ordering Code : 4001-6-5-904-XX
Lamp : LED Socket : N/A Wattage : 15 W Beam : 26° Lumen : 1700 lm CCT : 4000 K Controller : DALI Specsheet :
Ordering Code : 4001-7-3-904-XX
Lamp : LED Socket : N/A Wattage : 15 W Beam : 48° Lumen : 1660 lm CCT : 4000 K Controller : On-Off Specsheet :
 Phase Out Ordering Code : 4001-7-4-904-XX
Lamp : LED Socket : N/A Wattage : 15 W Beam : 48° Lumen : 1660 lm CCT : 4000 K Controller : DIM 1-10V Specsheet :
 Phase Out Ordering Code : 4001-7-5-904-XX
Lamp : LED Socket : N/A Wattage : 15 W Beam : 48° Lumen : 1660 lm CCT : 4000 K Controller : DALI Specsheet :
Ordering Code : 4001-Q-3-645-XX
Lamp : LED Socket : N/A Wattage : 15 W Beam : Sharp Elliptical V Lumen : 300 lm CCT : 4000 K Controller : On-Off Specsheet :
Ordering Code : 4001-Q-4-645-XX
Lamp : LED Socket : N/A Wattage : 15 W Beam : Sharp Elliptical V Lumen : 300 lm CCT : 4000 K Controller : DIM 1-10V Specsheet :
Ordering Code : 4001-Q-5-645-XX
Lamp : LED Socket : N/A Wattage : 15 W Beam : Sharp Elliptical V Lumen : 300 lm CCT : 4000 K Controller : DALI Specsheet :
Ordering Code : 4001-0-2-221-XX
Lamp : QPAR51 Socket : GU10 Wattage : 50 W Beam : 25°,50° Lumen : 600 lm CCT : 2900 K Controller : On-Off Specsheet :
Ordering Code : 4001-0-2-261-XX
Lamp : PAR20 Socket : E27 Wattage : 50 W Beam : 10°,30° Lumen : 550 lm CCT : 2900 K Controller : On-Off Specsheet :

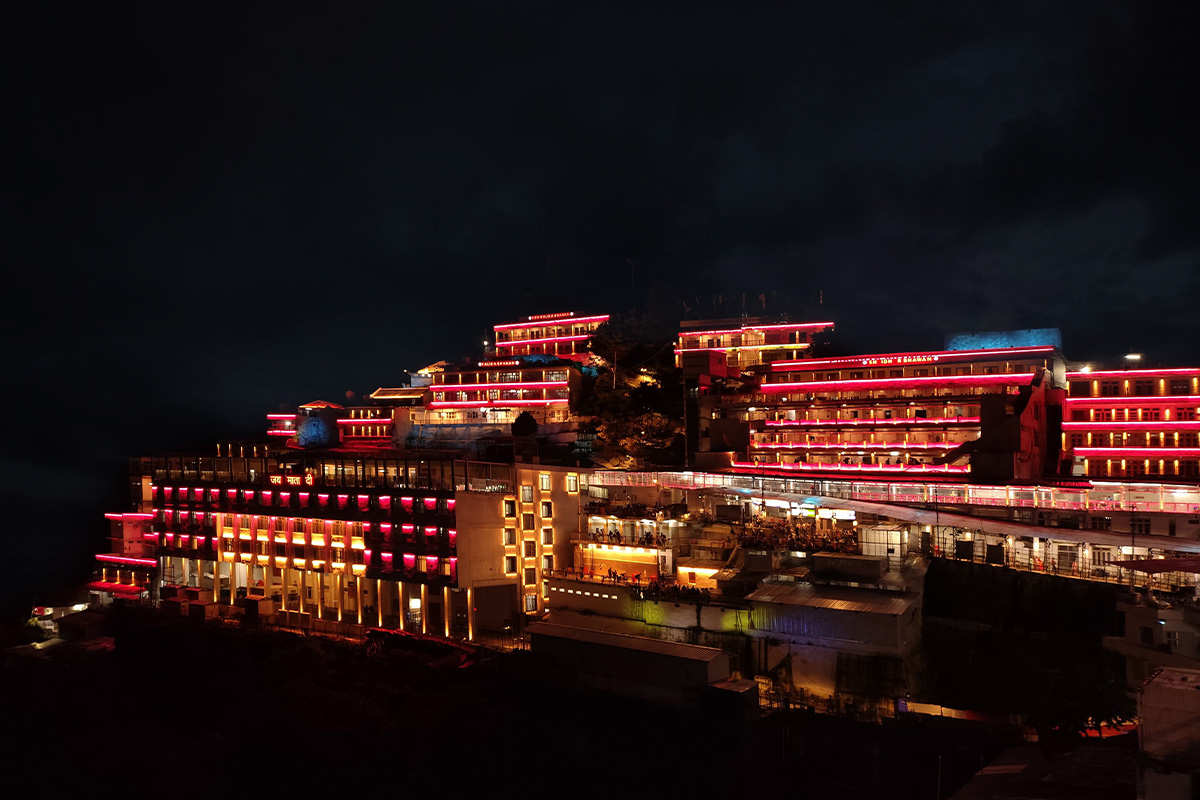

Project Reference
