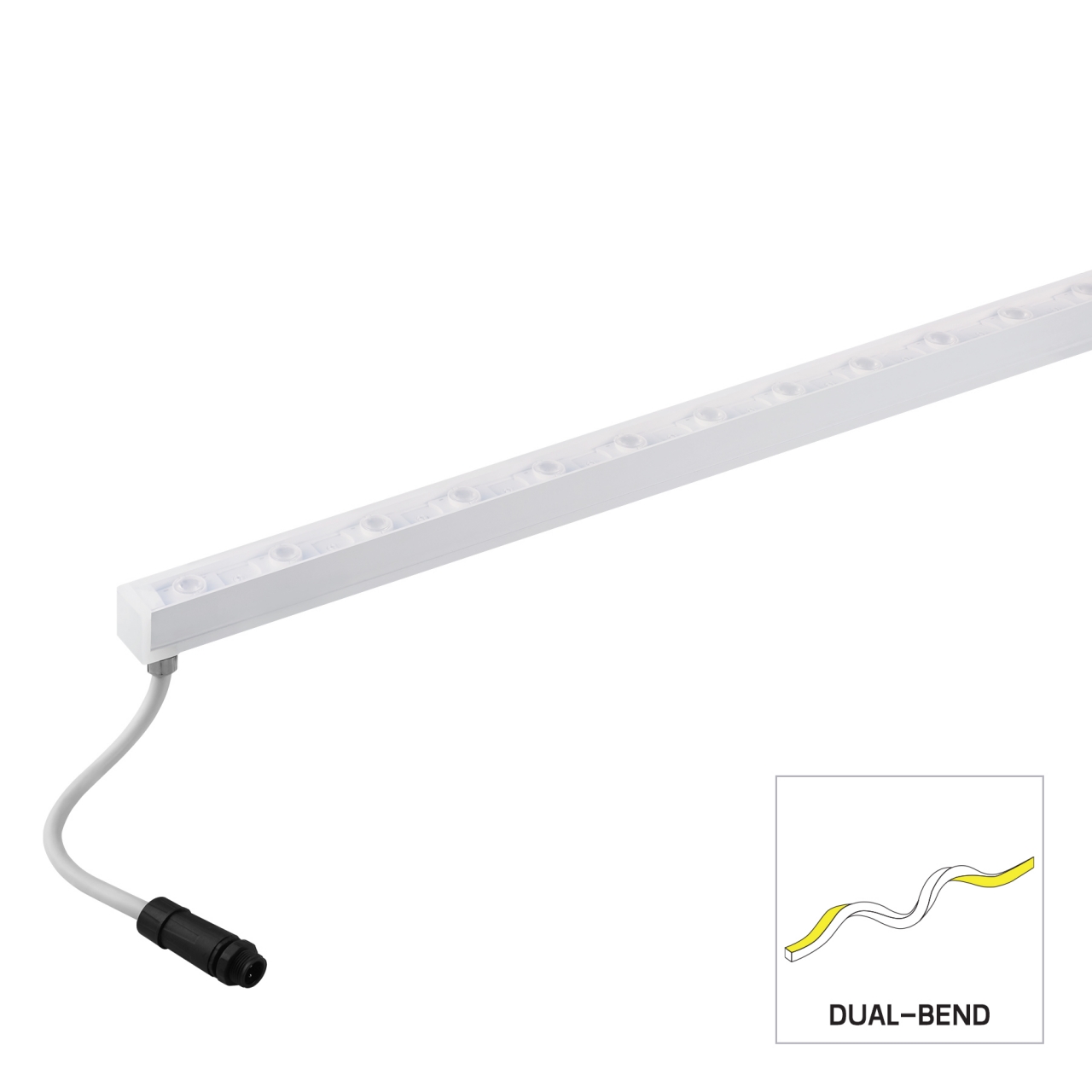

LuxBeat XL 1000

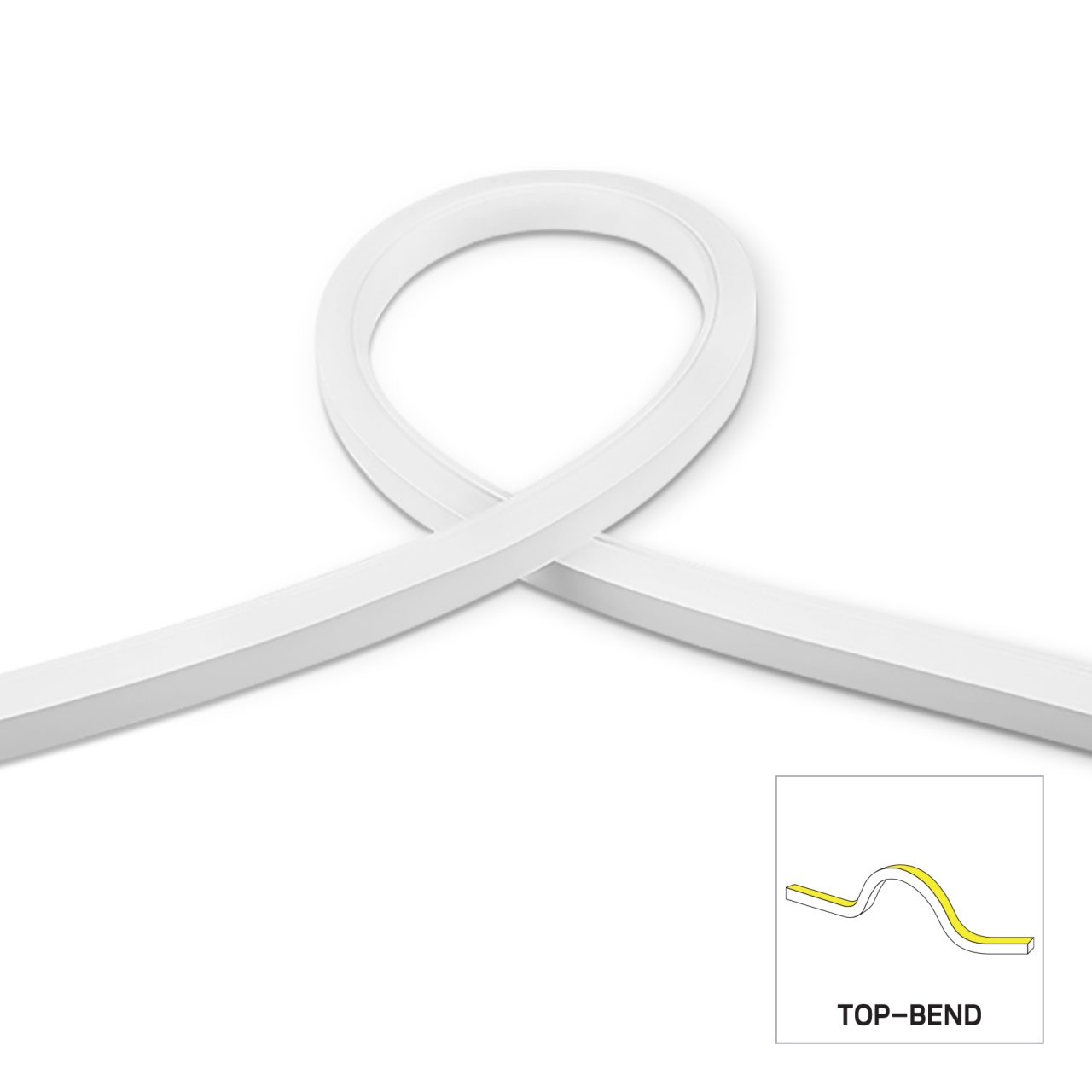

LuxBeat and LuxBeat XL are a range of miniature sized linear accent luminaires with flexible and fixed application. The patented optical system emits homogenous light regardless of the viewing direction. LuxBeat is the designer’s choice for unconstraint creative light installations. High contrasting illumination of building elements is easily possible with the tiny luminaire dimensions and state of the art LED performance. The luminaire is top bendable and can be shortened on-site. The use of optional stainless steel mounting clips eliminates the time-consuming pretreatment of the installation surface. LuxBeat XL offers a robust aluminum housing that contains a wiring channel for the electrical connection. Bottom mounted in and out connector’s assure shadow free easy installation. LuxBeat XL is available as fixed and tiltable surface mount luminaire, recessed wall and ceiling light, pendant light and inground uplighter. Shorter luminaire lengths are available upon request. LuxBeat XL RGBW requires the use of a 4 channel CV RGBW controller, contact the Unilamp sales team for details.


Ordering Code : 8112-0-2-269-00
Lamp : LED Socket : N/A Wattage : 18 W Beam : 120° Lumen : 880 lm CCT : 3000 K Controller : Remote Specsheet :
LuxBeat XL 1000
LuxBeat XL 1000

Accessories

AUN-DRG-0011-00
LED constant voltage driver, 24VDC, 150W
AUN-DRG-0022-00
LED constant voltage driver, 24VDC, 60W, DALI
AUN-DRG-0023-00
LED constant voltage driver, 24VDC, 120W, DALI
AUN-DRG-0024-00
LED constant voltage driver, 24VDC, 200W
AUN-DRG-0025-00
LED constant voltage driver, 24VDC, 200W, DALI
AUN-MOT-0015-XX
Surface mount profile, L= 1010mm
AUN-CON-0015-00
Feed in cable 2x0.75sqmm, L= 2000mm, for monochromatic luminaire , with M12 connector
ATR-MOT-0001-00
Suspension kit, with mounting loop
ATR-MOT-0002-00
Suspension kit, with mounting post
AUN-DRG-0027-00
LED constant voltage driver, 24VDC, 72W
AUN-RCH-0014-XX
Recessed ceiling mounting profile, L= 1046mm
AUN-MOT-0027-XX
Plasterboard wall mounting profile, L= 1046mm
AUN-MOT-0030-XX
Wall niche mounting profile, L= 1046mm
AUN-BRK-0007-XX
Mounting bracket, adjustable
AUN-DRG-0124-00
LED constant voltage driver, 24VDC, 120W, DIM0/1-10V
Ordering Code : 8112-C-2-269-00
Lamp : LED Socket : N/A Wattage : 18 W Beam : 30° Lumen : 1960 lm CCT : 3000 K Controller : Remote Specsheet :
LuxBeat XL 1000
LuxBeat XL 1000

Accessories

AUN-DRG-0011-00
LED constant voltage driver, 24VDC, 150W
AUN-DRG-0024-00
LED constant voltage driver, 24VDC, 200W
AUN-MOT-0015-XX
Surface mount profile, L= 1010mm
AUN-CON-0015-00
Feed in cable 2x0.75sqmm, L= 2000mm, for monochromatic luminaire , with M12 connector
ATR-MOT-0001-00
Suspension kit, with mounting loop
ATR-MOT-0002-00
Suspension kit, with mounting post
AUN-DRG-0027-00
LED constant voltage driver, 24VDC, 72W
AUN-RCH-0014-XX
Recessed ceiling mounting profile, L= 1046mm
AUN-MOT-0027-XX
Plasterboard wall mounting profile, L= 1046mm
AUN-MOT-0030-XX
Wall niche mounting profile, L= 1046mm
AUN-BRK-0007-XX
Mounting bracket, adjustable

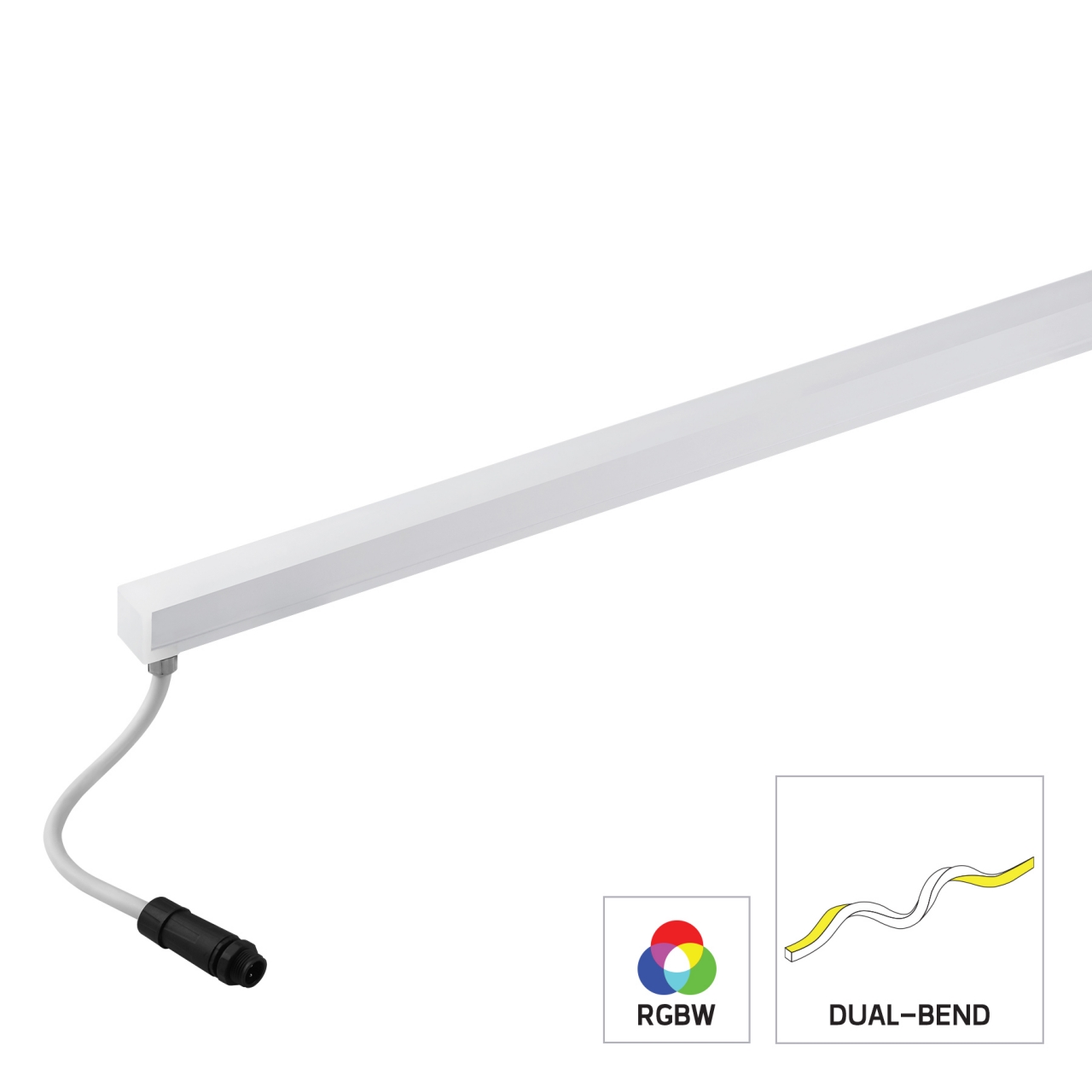

Ordering Code : 8112-0-2-399-00
Lamp : LED Socket : N/A Wattage : 18 W Beam : 120° Lumen : 430 lm CCT : RGBW Controller : Remote Specsheet :
LuxBeat XL 1000
LuxBeat XL 1000

Accessories

AUN-DRG-0011-00
LED constant voltage driver, 24VDC, 150W
AUN-DRG-0024-00
LED constant voltage driver, 24VDC, 200W
AUN-MOT-0015-XX
Surface mount profile, L= 1010mm
ATR-MOT-0001-00
Suspension kit, with mounting loop
ATR-MOT-0002-00
Suspension kit, with mounting post
AUN-DRG-0027-00
LED constant voltage driver, 24VDC, 72W
AUN-RCH-0014-XX
Recessed ceiling mounting profile, L= 1046mm
AUN-MOT-0027-XX
Plasterboard wall mounting profile, L= 1046mm
AUN-MOT-0030-XX
Wall niche mounting profile, L= 1046mm
ATR-CON-0002-00
Feed in cable 5x0.75sqmm, L= 2000mm, for RGBW luminaire , with M12 connector
AUN-BRK-0007-XX
Mounting bracket, adjustable
AUN-DRG-0119-00
LED constant voltage decoder, 24Vdc, 180W, with IP67 GFR polymer enclosure, DMX512/RDM
