LuxBeat

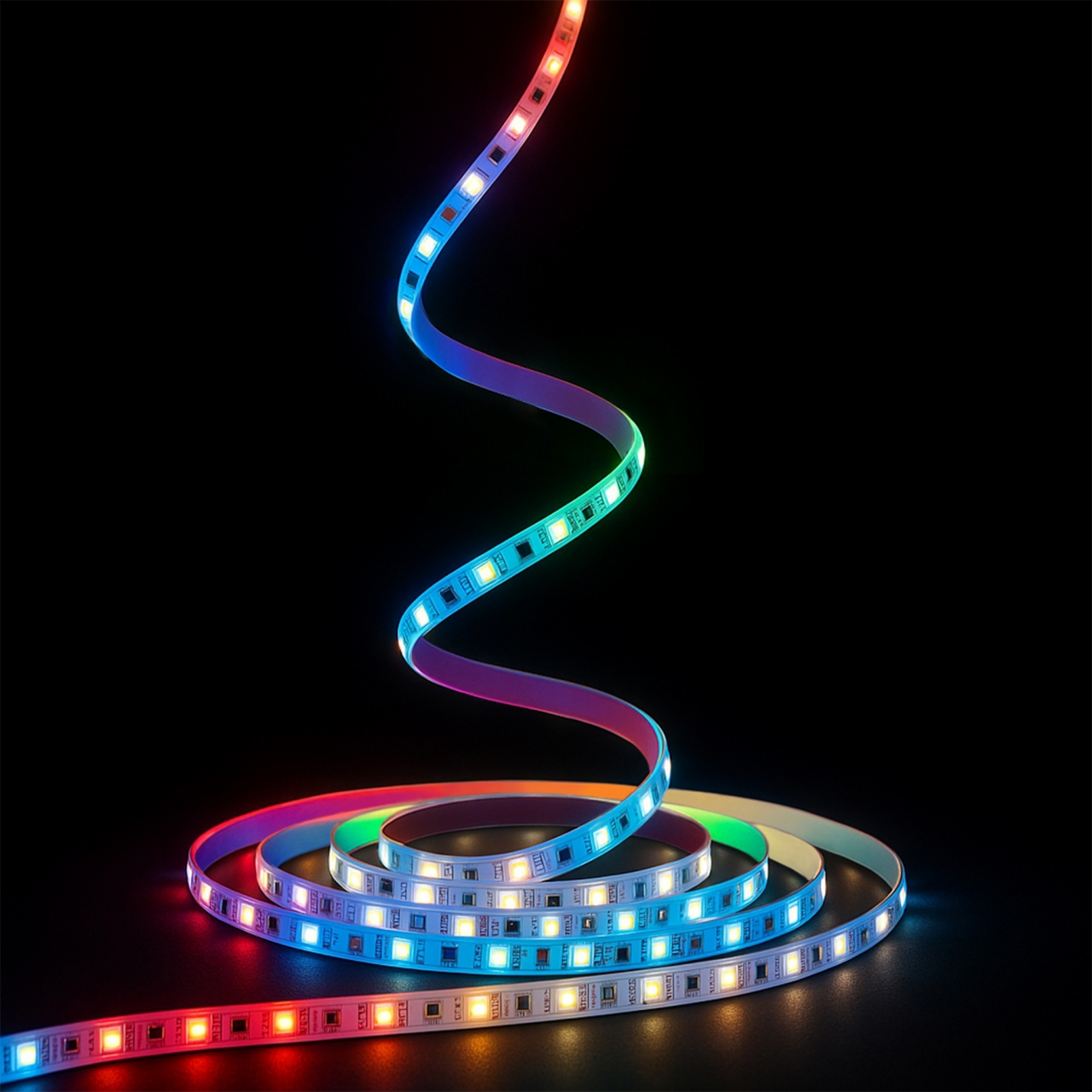

LuxBeat and LuxBeat XL are a range of miniature sized linear accent luminaires with flexible and fixed application. The patented optical system emits homogenous light regardless of the viewing direction. LuxBeat is the designer’s choice for unconstraint creative light installations. High contrasting illumination of building elements is easily possible with the tiny luminaire dimensions and state of the art LED performance. The luminaire is top bendable and can be shortened on-site. The use of optional stainless steel mounting clips eliminates the time-consuming pretreatment of the installation surface. LuxBeat XL offers a robust aluminum housing that contains a wiring channel for the electrical connection. Bottom mounted in and out connector’s assure shadow free easy installation. LuxBeat XL is available as fixed and tiltable surface mount luminaire, recessed wall and ceiling light, pendant light and inground uplighter. Shorter luminaire lengths are available upon request. LuxBeat XL RGBW requires the use of a 4 channel CV RGBW controller, contact the Unilamp sales team for details.


Ordering Code : 8101-0-2-467-00
Lamp : LED Socket : N/A Wattage : 7 W/M Beam : 120° Lumen : 680 lm/M CCT : 3000 K Controller : Remote Specsheet :
LuxBeat
LuxBeat

Accessories

AUN-DRG-0011-00
LED constant voltage driver, 24VDC, 150W
AUN-CAB-0006-00

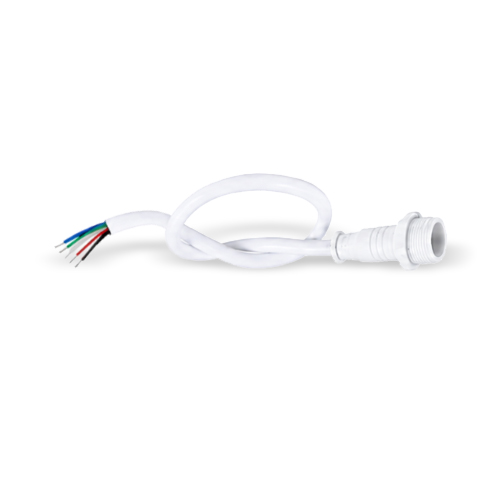

Feed in cable, L= 300, with end cap and front cap
AUN-DRG-0022-00
LED constant voltage driver, 24VDC, 60W, DALI
AUN-DRG-0023-00
LED constant voltage driver, 24VDC, 120W, DALI
AUN-CON-0024-00
IP68 Connector, cable diameter 4.8-6mm, gel-filled
AUN-DRG-0024-00
LED constant voltage driver, 24VDC, 200W
AUN-DRG-0025-00
LED constant voltage driver, 24VDC, 200W, DALI
AUN-DRG-0027-00
LED constant voltage driver, 24VDC, 72W
AUN-BRK-0009-00
Mounting clip, set of 20pcs
AUN-MOT-0061-00
Surface mount profile, L= 1000mm, for corners
AUN-MOT-0062-00
Surface mount profile, L= 1000mm, for flat
Ordering Code : 8101-0-2-409-00
Lamp : LED Socket : N/A Wattage : 14 W/M Beam : 120° Lumen : 1930 lm/M CCT : 3000 K Controller : Remote Specsheet :
LuxBeat
LuxBeat

Accessories

AUN-DRG-0011-00
LED constant voltage driver, 24VDC, 150W
AUN-BRK-0003-00
Mounting clip, set of 20pcs
AUN-CAB-0006-00
Feed in cable, L= 300, with end cap and front cap
AUN-DRG-0022-00
LED constant voltage driver, 24VDC, 60W, DALI
AUN-DRG-0023-00
LED constant voltage driver, 24VDC, 120W, DALI
AUN-CON-0024-00
IP68 Connector, cable diameter 4.8-6mm, gel-filled
AUN-DRG-0024-00
LED constant voltage driver, 24VDC, 200W
AUN-DRG-0025-00
LED constant voltage driver, 24VDC, 200W, DALI
AUN-DRG-0027-00
LED constant voltage driver, 24VDC, 72W
AUN-MOT-0061-00
Surface mount profile, L= 1000mm, for corners
AUN-MOT-0062-00
Surface mount profile, L= 1000mm, for flat
Ordering Code : 8101-0-2-468-00
Lamp : LED Socket : N/A Wattage : 7 W/M Beam : 120° Lumen : 700 lm/M CCT : 4000 K Controller : Remote Specsheet :
LuxBeat
LuxBeat

Accessories

AUN-DRG-0011-00
LED constant voltage driver, 24VDC, 150W
AUN-CAB-0006-00
Feed in cable, L= 300, with end cap and front cap
AUN-DRG-0022-00
LED constant voltage driver, 24VDC, 60W, DALI
AUN-DRG-0023-00
LED constant voltage driver, 24VDC, 120W, DALI
AUN-CON-0024-00
IP68 Connector, cable diameter 4.8-6mm, gel-filled
AUN-DRG-0024-00
LED constant voltage driver, 24VDC, 200W
AUN-DRG-0025-00
LED constant voltage driver, 24VDC, 200W, DALI
AUN-DRG-0027-00
LED constant voltage driver, 24VDC, 72W
AUN-BRK-0009-00
Mounting clip, set of 20pcs
AUN-MOT-0061-00
Surface mount profile, L= 1000mm, for corners
AUN-MOT-0062-00
Surface mount profile, L= 1000mm, for flat
Ordering Code : 8101-0-2-410-00
Lamp : LED Socket : N/A Wattage : 14 W/M Beam : 120° Lumen : 2030 lm/M CCT : 4000 K Controller : Remote Specsheet :
LuxBeat
LuxBeat

Accessories

AUN-DRG-0011-00
LED constant voltage driver, 24VDC, 150W
AUN-BRK-0003-00
Mounting clip, set of 20pcs
AUN-CAB-0006-00
Feed in cable, L= 300, with end cap and front cap
AUN-DRG-0022-00
LED constant voltage driver, 24VDC, 60W, DALI
AUN-DRG-0023-00
LED constant voltage driver, 24VDC, 120W, DALI
AUN-CON-0024-00
IP68 Connector, cable diameter 4.8-6mm, gel-filled
AUN-DRG-0024-00
LED constant voltage driver, 24VDC, 200W
AUN-DRG-0025-00
LED constant voltage driver, 24VDC, 200W, DALI
AUN-DRG-0027-00
LED constant voltage driver, 24VDC, 72W
AUN-MOT-0061-00
Surface mount profile, L= 1000mm, for corners
AUN-MOT-0062-00
Surface mount profile, L= 1000mm, for flat
