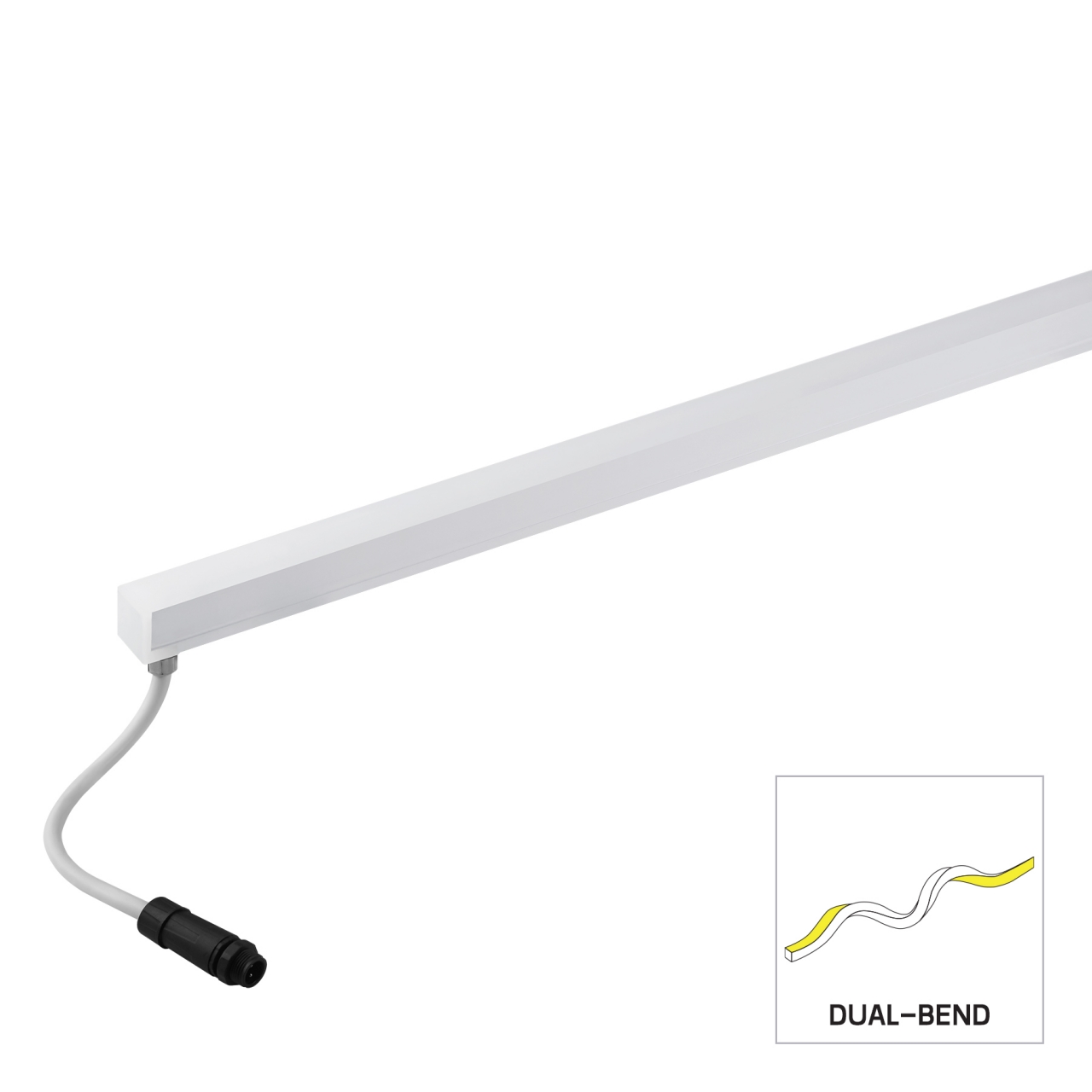

LuxBeat XL 2000

LuxBeat, LuxBeat L, LuxBeat XL, LuxBeat Inground, and LuxBeat Underwater are miniature linear accent luminaires for both flexible and fixed applications. With a patented optical system, they deliver uniform light output from every angle, creating precise, high-contrast illumination of architectural features. Their compact size enables accurate highlighting and versatile installation. LuxBeat is top bendable and can be shortened on-site to meet project requirements. Stainless steel clips allow direct mounting to walls or façades without surface cleaning or pretreatment, simplifying installation. LuxBeat L features an aluminum housing for fixed use or clips for flexible mounting, ensuring smooth, shadow-free connections. Its slim design produces sharp, elegant lighting that highlights architectural details. LuxBeat XL offers a robust aluminum housing with an integrated wiring channel and bottom connectors for seamless installation. It is available as fixed or tiltable surface luminaires, recessed wall and ceiling lights, and pendants, with custom lengths on request. LuxBeat Inground provides a recessed solution for concrete floors and outdoor grounds, delivering durability and the same optical performance as the rest of the family. LuxBeat Underwater extends this reliability into pools, fountains, and water features. For RGBW color projects, contact the Unilamp sales team.


Ordering Code : 8113-0-2-269-00
Lamp : LED Socket : N/A Wattage : 36 W Beam : 120° Lumen : 1760 lm CCT : 3000 K Controller : Remote Specsheet :
LuxBeat XL 2000
LuxBeat XL 2000

Accessories

AUN-DRG-0011-00
LED constant voltage driver, 24VDC, 150W
AUN-DRG-0100-00
LED constant voltage driver, 24VDC, 60W, DALI
AUN-DRG-0101-00
LED constant voltage driver, 24VDC, 120W, DALI
AUN-DRG-0024-00
LED constant voltage driver, 24VDC, 200W
AUN-DRG-0025-00
LED constant voltage driver, 24VDC, 200W, DALI
AUN-MOT-0016-XX
Surface mount profile, L= 2010mm
AUN-CON-0015-00
Feed in cable 2x0.75sqmm, L= 2000mm, for monochromatic luminaire , with M12 connector
ATR-MOT-0001-00
Suspension kit, with mounting loop
ATR-MOT-0002-00
Suspension kit, with mounting post
AUN-DRG-0027-00
LED constant voltage driver, 24VDC, 72W
AUN-RCH-0015-XX
Recessed ceiling mounting profile, L= 2046mm
AUN-MOT-0028-XX
Plasterboard wall mounting profile, L= 2046mm
AUN-MOT-0031-XX
Wall niche mounting profile, L= 2046mm
AUN-BRK-0007-XX
Mounting bracket, adjustable
AUN-DRG-0124-00
LED constant voltage driver, 24VDC, 120W, DIM0/1-10V
Ordering Code : 8113-C-2-269-00
Lamp : LED Socket : N/A Wattage : 36 W Beam : 30° Lumen : 3920 lm CCT : 3000 K Controller : Remote Specsheet :
LuxBeat XL 2000
LuxBeat XL 2000

Accessories

AUN-DRG-0011-00
LED constant voltage driver, 24VDC, 150W
AUN-DRG-0024-00
LED constant voltage driver, 24VDC, 200W
AUN-MOT-0016-XX
Surface mount profile, L= 2010mm
AUN-CON-0015-00
Feed in cable 2x0.75sqmm, L= 2000mm, for monochromatic luminaire , with M12 connector
ATR-MOT-0001-00
Suspension kit, with mounting loop
ATR-MOT-0002-00
Suspension kit, with mounting post
AUN-DRG-0027-00
LED constant voltage driver, 24VDC, 72W
AUN-RCH-0015-XX
Recessed ceiling mounting profile, L= 2046mm
AUN-MOT-0028-XX
Plasterboard wall mounting profile, L= 2046mm
AUN-MOT-0031-XX
Wall niche mounting profile, L= 2046mm
AUN-BRK-0007-XX
Mounting bracket, adjustable
AUN-DRG-0100-00
LED constant voltage driver, 24VDC, 60W, DALI
AUN-DRG-0101-00
LED constant voltage driver, 24VDC, 120W, DALI
Ordering Code : 8113-0-2-399-00
Lamp : LED Socket : N/A Wattage : 36 W Beam : 120° Lumen : 860 lm CCT : RGBW Controller : Remote Specsheet :
LuxBeat XL 2000
LuxBeat XL 2000

Accessories

AUN-DRG-0011-00
LED constant voltage driver, 24VDC, 150W
AUN-DRG-0024-00
LED constant voltage driver, 24VDC, 200W
AUN-MOT-0016-XX
Surface mount profile, L= 2010mm
ATR-MOT-0001-00
Suspension kit, with mounting loop
ATR-MOT-0002-00
Suspension kit, with mounting post
AUN-DRG-0027-00
LED constant voltage driver, 24VDC, 72W
AUN-RCH-0015-XX
Recessed ceiling mounting profile, L= 2046mm
AUN-MOT-0028-XX
Plasterboard wall mounting profile, L= 2046mm
AUN-MOT-0031-XX
Wall niche mounting profile, L= 2046mm
ATR-CON-0002-00
Feed in cable 5x0.75sqmm, L= 2000mm, for RGBW luminaire , with M12 connector
AUN-BRK-0007-XX
Mounting bracket, adjustable
AUN-DRG-0119-00
LED constant voltage decoder, 24Vdc, 180W, with IP67 GFR polymer enclosure, DMX512/RDM
