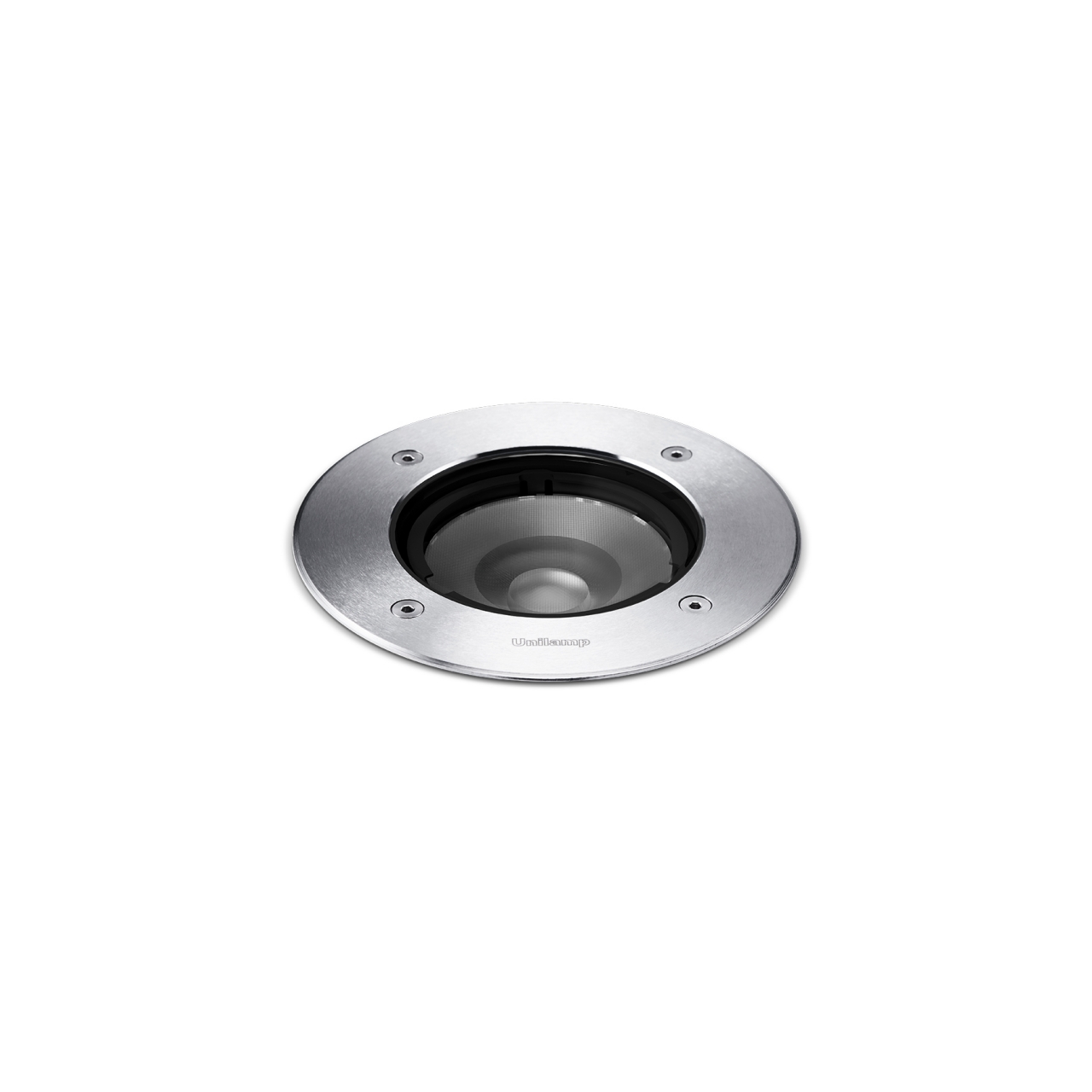

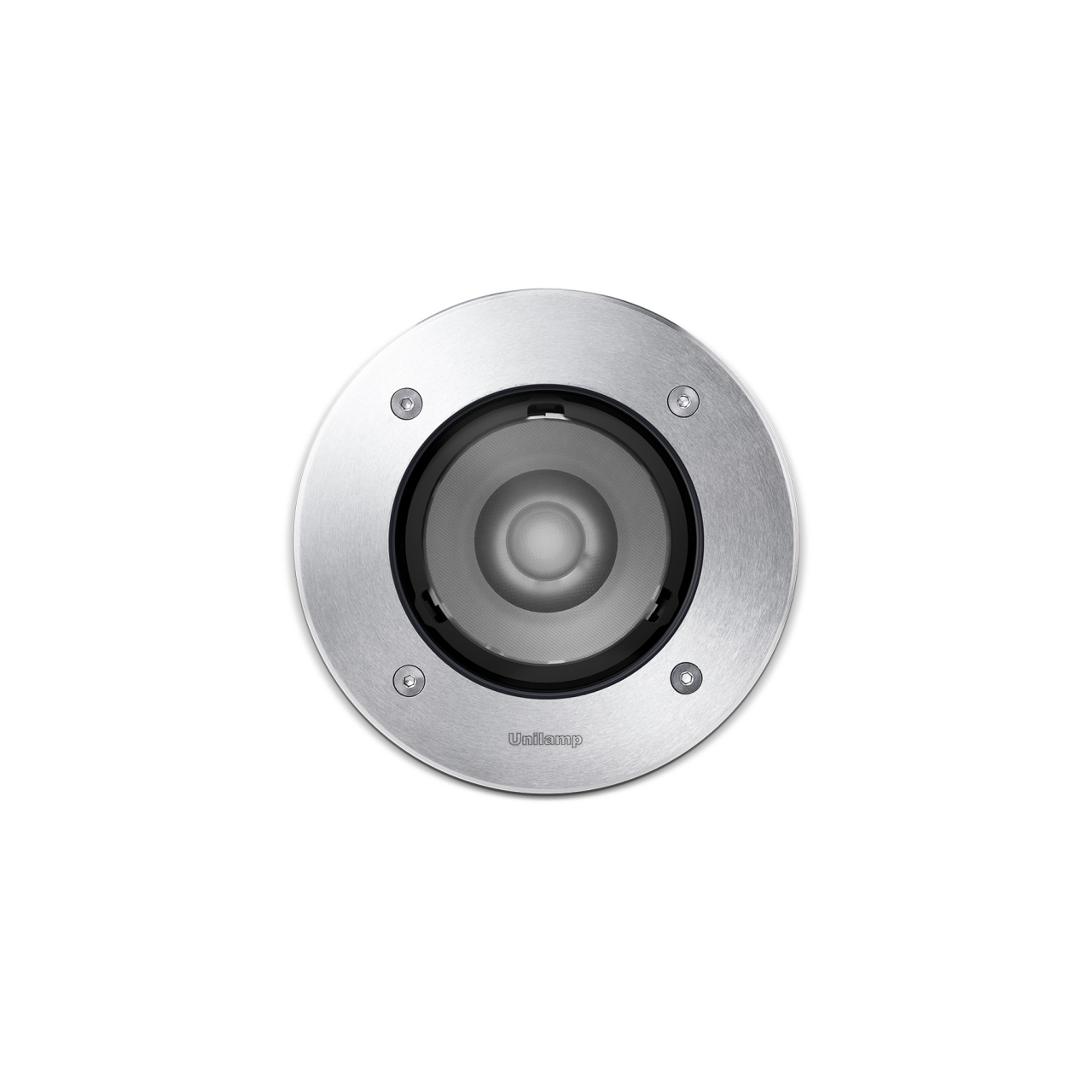

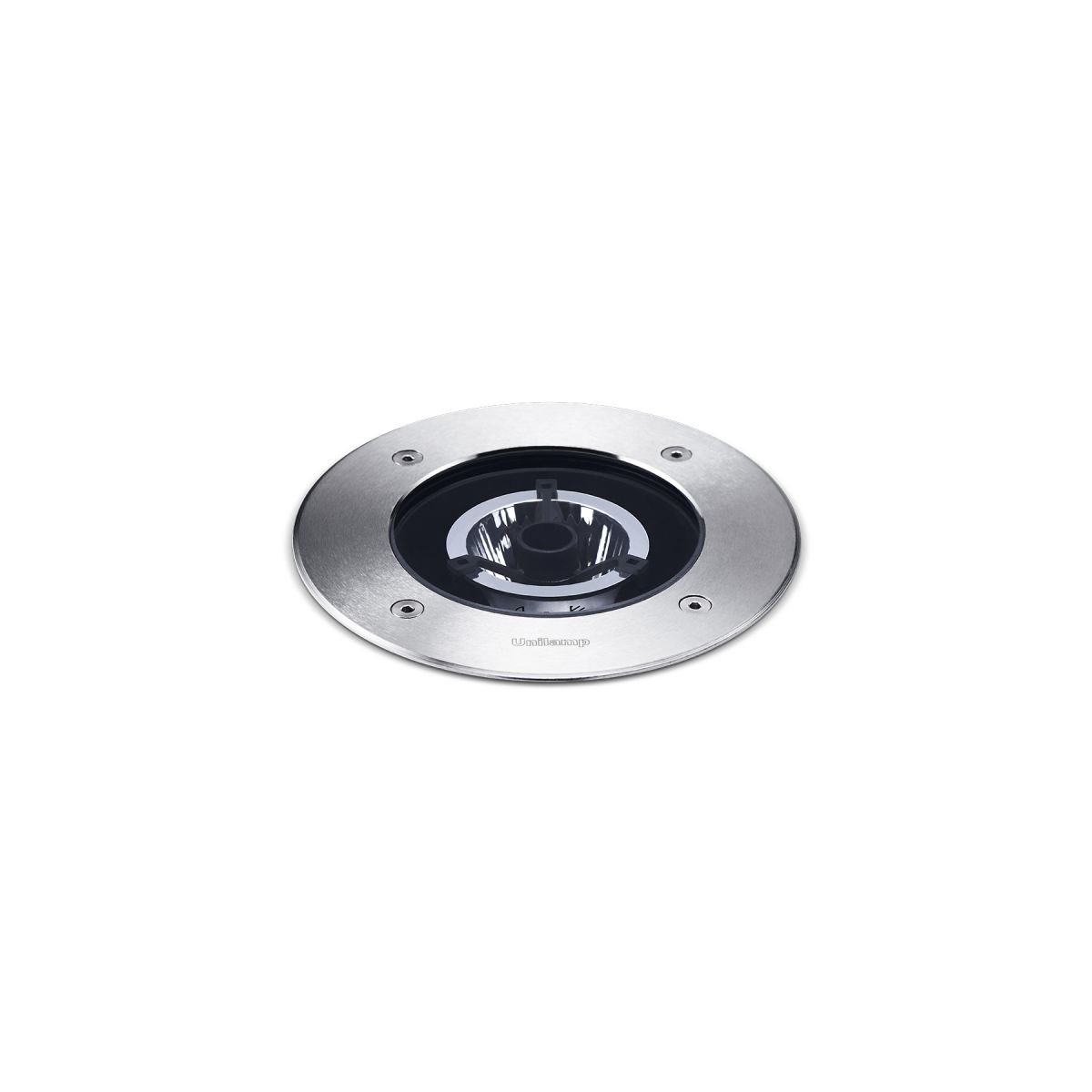

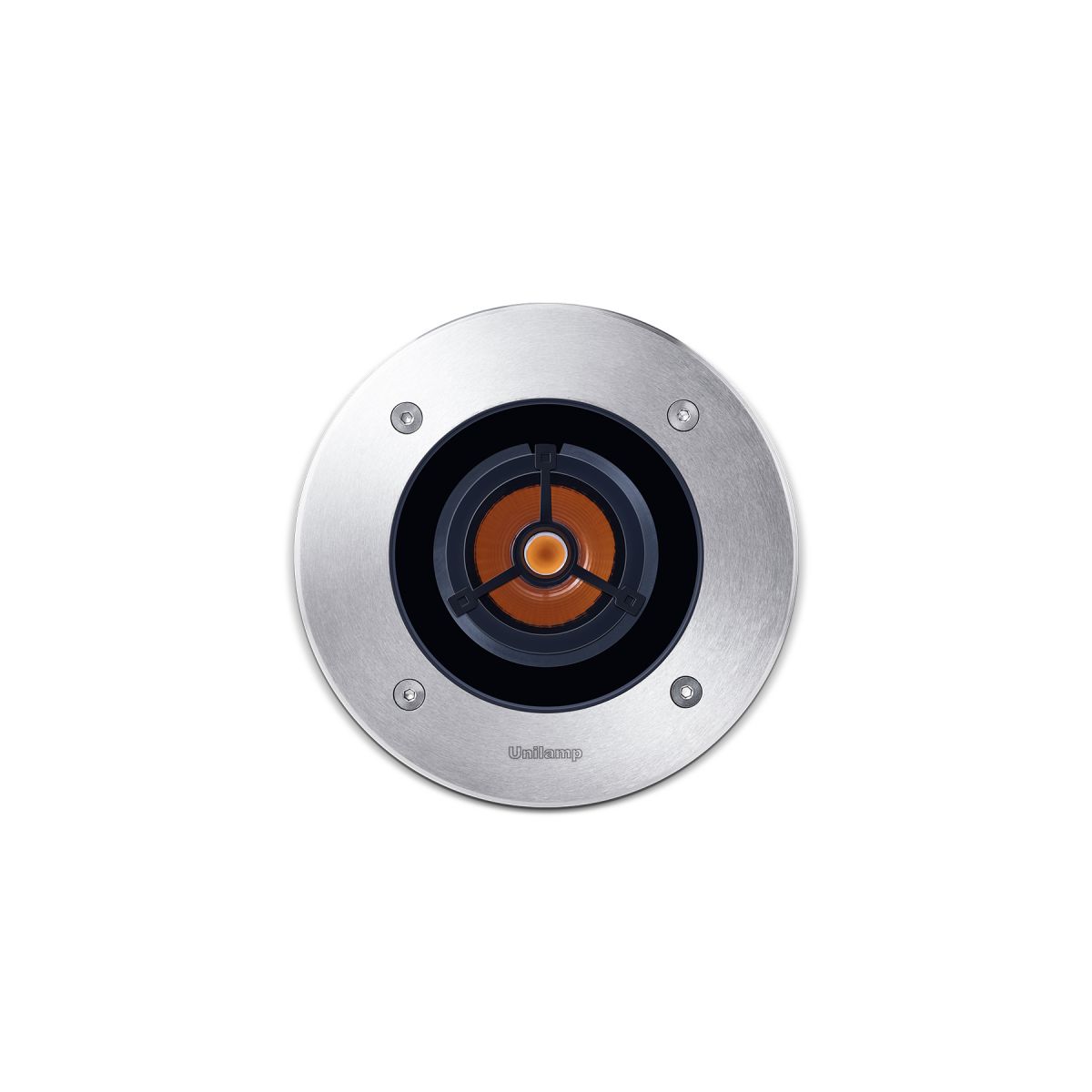

ZET Round

ZET walk-over in ground uplighter with fixed and adjustable optic utilized high-performance LED with additional glare control accessory to deliver the best and comfortable light distribution. ZET Adjustable is available in COB LED or High Power LED with various beam angle option. It is supplied with a post-cured silicone gasket with pre-wire cable for outdoor use. ZET is commonly used to highlight architectural tasks, wall structures, low ceilings, and columns. The glare-shield honey comb and softening lens are available as accessories. A gel-filled IP68 connection device for water tight connection is also available as standard option. Retrofit solution with GU5.3 or GU10 Led lamp base is presented in this family. The installation of this product and drainage system must be done according to the product’s manual.

Clear All
 New Ordering Code : 9011-C-2-505-91
Lamp : LED Socket : N/A Wattage : 14 W Beam : 31° Lumen : 1440 lm CCT : 2700 K Controller : Remote Specsheet :
ZET Round
ZET Round
ZET Round
ZET Round

Technical Data Download

Accessories

AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-GSH-0021-00
Honeycomb louver, LED, pre-assembly from factory
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-DRG-0120-00
LED constant current driver, 350mA, 15W, with IP67 GFR polymer enclosure, On-Off
AUN-DRG-0121-00
LED constant current driver, 350mA, 18W, with IP67 GFR polymer enclosure, 1-10V
AUN-DRG-0122-00
LED constant current driver, 350mA, 18W, with IP67 GFR polymer enclosure, DALI
Ordering Code : 9011-A-2-528-91
Lamp : LED Socket : N/A Wattage : 13 W Beam : 12° Lumen : 1220 lm CCT : 2700 K Controller : Remote Specsheet :
ZET Round
ZET Round
ZET Round
ZET Round

Technical Data Download

Accessories

AUN-GSH-0008-00
Honeycomb louver, LED, pre-assembly from factory
AUN-SOF-0022-00
Softening filter, LED, pre-assembly from factory
AUN-DRG-0004-01
LED constant current driver, 1050mA, 22W, with IP67 GFR polymer enclosure, On-Off
AUN-DRG-0006-01
LED constant current driver, 1050mA, 38W, with IP67 GFR polymer enclosure, DALI
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-DRG-0021-00
LED constant current driver, 1050mA, 38W, with IP67 GFR polymer enclosure, 1-10V
Ordering Code : 9011-C-2-528-91
Lamp : LED Socket : N/A Wattage : 13 W Beam : 30° Lumen : 940 lm CCT : 2700 K Controller : Remote Specsheet :
ZET Round
ZET Round
ZET Round
ZET Round

Technical Data Download

Accessories

AUN-GSH-0008-00
Honeycomb louver, LED, pre-assembly from factory
AUN-SOF-0022-00
Softening filter, LED, pre-assembly from factory
AUN-DRG-0004-01
LED constant current driver, 1050mA, 22W, with IP67 GFR polymer enclosure, On-Off
AUN-DRG-0006-01
LED constant current driver, 1050mA, 38W, with IP67 GFR polymer enclosure, DALI
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-DRG-0021-00
LED constant current driver, 1050mA, 38W, with IP67 GFR polymer enclosure, 1-10V
 New Ordering Code : 9011-D-2-505-91
Lamp : LED Socket : N/A Wattage : 14 W Beam : 51° Lumen : 1230 lm CCT : 2700 K Controller : Remote Specsheet :
ZET Round
ZET Round
ZET Round
ZET Round

Technical Data Download

Accessories

AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-GSH-0021-00
Honeycomb louver, LED, pre-assembly from factory
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-DRG-0120-00
LED constant current driver, 350mA, 15W, with IP67 GFR polymer enclosure, On-Off
AUN-DRG-0121-00
LED constant current driver, 350mA, 18W, with IP67 GFR polymer enclosure, 1-10V
AUN-DRG-0122-00
LED constant current driver, 350mA, 18W, with IP67 GFR polymer enclosure, DALI
 New Ordering Code : 9011-A-2-710-91
Lamp : LED Socket : N/A Wattage : 14 W Beam : 14° Lumen : 1250 lm CCT : 2700 K Controller : Remote Specsheet :
ZET Round
ZET Round
ZET Round
ZET Round

Technical Data Download

Accessories

AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-GSH-0021-00
Honeycomb louver, LED, pre-assembly from factory
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-DRG-0120-00
LED constant current driver, 350mA, 15W, with IP67 GFR polymer enclosure, On-Off
AUN-DRG-0121-00
LED constant current driver, 350mA, 18W, with IP67 GFR polymer enclosure, 1-10V
AUN-DRG-0122-00
LED constant current driver, 350mA, 18W, with IP67 GFR polymer enclosure, DALI
Ordering Code : 9011-5-3-869-91
Lamp : LED Socket : N/A Wattage : 11 W Beam : 13° Lumen : 620 lm CCT : 3000 K Controller : On-Off (AC LED) Specsheet :
ZET Round
ZET Round
ZET Round
ZET Round

Technical Data Download

Accessories

AUN-SOF-0020-00
Softening filter, LED, pre-assembly from factory
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-RCH-0005-00
Recessed installation housing
AUN-GSH-0003-01
Honeycomb louver, LED, pre-assembly from factory
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
Ordering Code : 9011-7-3-869-91
Lamp : LED Socket : N/A Wattage : 11 W Beam : 40° Lumen : 620 lm CCT : 3000 K Controller : On-Off (AC LED) Specsheet :
ZET Round
ZET Round
ZET Round
ZET Round

Technical Data Download

Accessories

AUN-SOF-0020-00
Softening filter, LED, pre-assembly from factory
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-RCH-0005-00
Recessed installation housing
AUN-GSH-0003-01
Honeycomb louver, LED, pre-assembly from factory
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
Ordering Code : 9011-A-2-529-91
Lamp : LED Socket : N/A Wattage : 13 W Beam : 12° Lumen : 1220 lm CCT : 3000 K Controller : Remote Specsheet :
ZET Round
ZET Round
ZET Round
ZET Round

Technical Data Download

Accessories

AUN-GSH-0008-00
Honeycomb louver, LED, pre-assembly from factory
AUN-SOF-0022-00
Softening filter, LED, pre-assembly from factory
AUN-DRG-0004-01
LED constant current driver, 1050mA, 22W, with IP67 GFR polymer enclosure, On-Off
AUN-DRG-0006-01
LED constant current driver, 1050mA, 38W, with IP67 GFR polymer enclosure, DALI
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-DRG-0021-00
LED constant current driver, 1050mA, 38W, with IP67 GFR polymer enclosure, 1-10V
Ordering Code : 9011-C-2-529-91
Lamp : LED Socket : N/A Wattage : 13 W Beam : 30° Lumen : 940 lm CCT : 3000 K Controller : Remote Specsheet :
ZET Round
ZET Round
ZET Round
ZET Round

Technical Data Download

Accessories

AUN-GSH-0008-00
Honeycomb louver, LED, pre-assembly from factory
AUN-SOF-0022-00
Softening filter, LED, pre-assembly from factory
AUN-DRG-0004-01
LED constant current driver, 1050mA, 22W, with IP67 GFR polymer enclosure, On-Off
AUN-DRG-0006-01
LED constant current driver, 1050mA, 38W, with IP67 GFR polymer enclosure, DALI
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-DRG-0021-00
LED constant current driver, 1050mA, 38W, with IP67 GFR polymer enclosure, 1-10V
Ordering Code : 9011-D-2-529-91
Lamp : LED Socket : N/A Wattage : 13 W Beam : 52° Lumen : 850 lm CCT : 3000 K Controller : Remote Specsheet :
ZET Round
ZET Round
ZET Round
ZET Round

Technical Data Download

Accessories

AUN-GSH-0008-00
Honeycomb louver, LED, pre-assembly from factory
AUN-SOF-0022-00
Softening filter, LED, pre-assembly from factory
AUN-DRG-0004-01
LED constant current driver, 1050mA, 22W, with IP67 GFR polymer enclosure, On-Off
AUN-DRG-0006-01
LED constant current driver, 1050mA, 38W, with IP67 GFR polymer enclosure, DALI
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-DRG-0021-00
LED constant current driver, 1050mA, 38W, with IP67 GFR polymer enclosure, 1-10V
 New Ordering Code : 9011-C-2-902-91
Lamp : LED Socket : N/A Wattage : 14 W Beam : 31° Lumen : 1510 lm CCT : 3000 K Controller : Remote Specsheet :
ZET Round
ZET Round
ZET Round
ZET Round

Technical Data Download

Accessories

AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-GSH-0021-00
Honeycomb louver, LED, pre-assembly from factory
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-DRG-0120-00
LED constant current driver, 350mA, 15W, with IP67 GFR polymer enclosure, On-Off
AUN-DRG-0121-00
LED constant current driver, 350mA, 18W, with IP67 GFR polymer enclosure, 1-10V
AUN-DRG-0122-00
LED constant current driver, 350mA, 18W, with IP67 GFR polymer enclosure, DALI
Ordering Code : 9011-K-2-529-91
Lamp : LED Socket : N/A Wattage : 13 W Beam : Asymmetric Lumen : 1020 lm CCT : 3000 K Controller : Remote Specsheet :
ZET Round
ZET Round
ZET Round
ZET Round

Technical Data Download

Accessories

AUN-DRG-0004-01
LED constant current driver, 1050mA, 22W, with IP67 GFR polymer enclosure, On-Off
AUN-DRG-0006-01
LED constant current driver, 1050mA, 38W, with IP67 GFR polymer enclosure, DALI
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-DRG-0021-00
LED constant current driver, 1050mA, 38W, with IP67 GFR polymer enclosure, 1-10V
Ordering Code : 9011-Q-2-644-91
Lamp : LED Socket : N/A Wattage : 13 W Beam : Sharp Elliptical V Lumen : 240 lm CCT : 3000 K Controller : Remote Specsheet :
ZET Round
ZET Round
ZET Round
ZET Round

Technical Data Download

Accessories

AUN-DRG-0004-01
LED constant current driver, 1050mA, 22W, with IP67 GFR polymer enclosure, On-Off
AUN-DRG-0006-01
LED constant current driver, 1050mA, 38W, with IP67 GFR polymer enclosure, DALI
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-DRG-0021-00
LED constant current driver, 1050mA, 38W, with IP67 GFR polymer enclosure, 1-10V
 New Ordering Code : 9011-D-2-902-91
Lamp : LED Socket : N/A Wattage : 14 W Beam : 51° Lumen : 1290 lm CCT : 3000 K Controller : Remote Specsheet :
ZET Round
ZET Round
ZET Round
ZET Round

Technical Data Download

Accessories

AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-GSH-0021-00
Honeycomb louver, LED, pre-assembly from factory
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-DRG-0120-00
LED constant current driver, 350mA, 15W, with IP67 GFR polymer enclosure, On-Off
AUN-DRG-0121-00
LED constant current driver, 350mA, 18W, with IP67 GFR polymer enclosure, 1-10V
AUN-DRG-0122-00
LED constant current driver, 350mA, 18W, with IP67 GFR polymer enclosure, DALI
 New Ordering Code : 9011-A-2-719-91
Lamp : LED Socket : N/A Wattage : 14 W Beam : 14° Lumen : 1250 lm CCT : 3000 K Controller : Remote Specsheet :
ZET Round
ZET Round
ZET Round
ZET Round

Technical Data Download

Accessories

AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-GSH-0021-00
Honeycomb louver, LED, pre-assembly from factory
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-DRG-0120-00
LED constant current driver, 350mA, 15W, with IP67 GFR polymer enclosure, On-Off
AUN-DRG-0121-00
LED constant current driver, 350mA, 18W, with IP67 GFR polymer enclosure, 1-10V
AUN-DRG-0122-00
LED constant current driver, 350mA, 18W, with IP67 GFR polymer enclosure, DALI
Ordering Code : 9011-5-3-870-91
Lamp : LED Socket : N/A Wattage : 10 W Beam : 13° Lumen : 630 lm CCT : 4000 K Controller : On-Off (AC LED) Specsheet :
ZET Round
ZET Round
ZET Round
ZET Round

Technical Data Download

Accessories

AUN-SOF-0020-00
Softening filter, LED, pre-assembly from factory
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-RCH-0005-00
Recessed installation housing
AUN-GSH-0003-01
Honeycomb louver, LED, pre-assembly from factory
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
Ordering Code : 9011-7-3-870-91
Lamp : LED Socket : N/A Wattage : 10 W Beam : 40° Lumen : 630 lm CCT : 4000 K Controller : On-Off (AC LED) Specsheet :
ZET Round
ZET Round
ZET Round
ZET Round

Technical Data Download

Accessories

AUN-SOF-0020-00
Softening filter, LED, pre-assembly from factory
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-RCH-0005-00
Recessed installation housing
AUN-GSH-0003-01
Honeycomb louver, LED, pre-assembly from factory
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
Ordering Code : 9011-C-2-530-91
Lamp : LED Socket : N/A Wattage : 13 W Beam : 30° Lumen : 1020 lm CCT : 4000 K Controller : Remote Specsheet :
ZET Round
ZET Round
ZET Round
ZET Round

Technical Data Download

Accessories

AUN-GSH-0008-00
Honeycomb louver, LED, pre-assembly from factory
AUN-SOF-0022-00
Softening filter, LED, pre-assembly from factory
AUN-DRG-0004-01
LED constant current driver, 1050mA, 22W, with IP67 GFR polymer enclosure, On-Off
AUN-DRG-0006-01
LED constant current driver, 1050mA, 38W, with IP67 GFR polymer enclosure, DALI
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-DRG-0021-00
LED constant current driver, 1050mA, 38W, with IP67 GFR polymer enclosure, 1-10V
Ordering Code : 9011-D-2-530-91
Lamp : LED Socket : N/A Wattage : 13 W Beam : 52° Lumen : 910 lm CCT : 4000 K Controller : Remote Specsheet :
ZET Round
ZET Round
ZET Round
ZET Round

Technical Data Download

Accessories

AUN-GSH-0008-00
Honeycomb louver, LED, pre-assembly from factory
AUN-SOF-0022-00
Softening filter, LED, pre-assembly from factory
AUN-DRG-0004-01
LED constant current driver, 1050mA, 22W, with IP67 GFR polymer enclosure, On-Off
AUN-DRG-0006-01
LED constant current driver, 1050mA, 38W, with IP67 GFR polymer enclosure, DALI
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-DRG-0021-00
LED constant current driver, 1050mA, 38W, with IP67 GFR polymer enclosure, 1-10V
 New Ordering Code : 9011-C-2-905-91
Lamp : LED Socket : N/A Wattage : 14 W Beam : 31° Lumen : 1540 lm CCT : 4000 K Controller : Remote Specsheet :
ZET Round
ZET Round
ZET Round
ZET Round

Technical Data Download

Accessories

AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-GSH-0021-00
Honeycomb louver, LED, pre-assembly from factory
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-DRG-0120-00
LED constant current driver, 350mA, 15W, with IP67 GFR polymer enclosure, On-Off
AUN-DRG-0121-00
LED constant current driver, 350mA, 18W, with IP67 GFR polymer enclosure, 1-10V
AUN-DRG-0122-00
LED constant current driver, 350mA, 18W, with IP67 GFR polymer enclosure, DALI
 New Ordering Code : 9011-D-2-905-91
Lamp : LED Socket : N/A Wattage : 14 W Beam : 51° Lumen : 1320 lm CCT : 4000 K Controller : Remote Specsheet :
ZET Round
ZET Round
ZET Round
ZET Round

Technical Data Download

Accessories

AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-GSH-0021-00
Honeycomb louver, LED, pre-assembly from factory
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-DRG-0120-00
LED constant current driver, 350mA, 15W, with IP67 GFR polymer enclosure, On-Off
AUN-DRG-0121-00
LED constant current driver, 350mA, 18W, with IP67 GFR polymer enclosure, 1-10V
AUN-DRG-0122-00
LED constant current driver, 350mA, 18W, with IP67 GFR polymer enclosure, DALI
 New Ordering Code : 9011-A-2-720-91
Lamp : LED Socket : N/A Wattage : 14 W Beam : 14° Lumen : 1340 lm CCT : 4000 K Controller : Remote Specsheet :
ZET Round
ZET Round
ZET Round
ZET Round

Technical Data Download

Accessories

AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-GSH-0021-00
Honeycomb louver, LED, pre-assembly from factory
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-DRG-0120-00
LED constant current driver, 350mA, 15W, with IP67 GFR polymer enclosure, On-Off
AUN-DRG-0121-00
LED constant current driver, 350mA, 18W, with IP67 GFR polymer enclosure, 1-10V
AUN-DRG-0122-00
LED constant current driver, 350mA, 18W, with IP67 GFR polymer enclosure, DALI
Ordering Code : 9011-0-2-221-91
Lamp : QPAR51 Socket : GU10 Wattage : N/A Beam : 25°,50° Lumen : N/A CCT : 2900 K Controller : On-Off Specsheet :
ZET Round
ZET Round
ZET Round
ZET Round

Technical Data Download

Accessories

AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-SOF-0006-00
Softening lens, Halogen, pre-assembly from factory
AUN-RCH-0005-00
Recessed installation housing
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
Ordering Code : 9011-0-2-281-91
Lamp : QR-CB51 Socket : GU5.3 Wattage : N/A Beam : 10°,38° Lumen : N/A CCT : 3200 K Controller : Remote Specsheet :
ZET Round
ZET Round
ZET Round
ZET Round

Technical Data Download

Accessories

AUN-DRG-0115-01
Electronic Transformer, 12V, 20-60W, with IP67 GFR polymer enclosure
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-SOF-0006-00
Softening lens, Halogen, pre-assembly from factory
AUN-GSH-0002-01
Honeycomb louver, QR-CB51, pre-assembly from factory
AUN-RCH-0005-00
Recessed installation housing
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled

Project Reference

Similar Products

ZET Round Opal
ZET Square
ZET Square Opal
ZET Round Opal
ZET Round Adjustable
ZET Round Adjustable
ZET Square Adjustable
ZET Square - CVDA
ZET Round Opal - CVDA
ZET Round Adjustable - CVDA
ZET Square Adjustable - CVDA

CONTACT INFO

  •   461 Ramintra Road, Kannayao, Bangkok 10230 Thailand
  •   Tel : +66(0)2 943 2420-1, +66(0)2 946 4170-1
  •   Fax : +66(0)2 943 2419
  •   Email : online@unilamp.co.th

WORKING DAYS

  • MON. - FRI. 8.00 AM - 5.00 PM
  • TIME GMT +7

Follow Us
