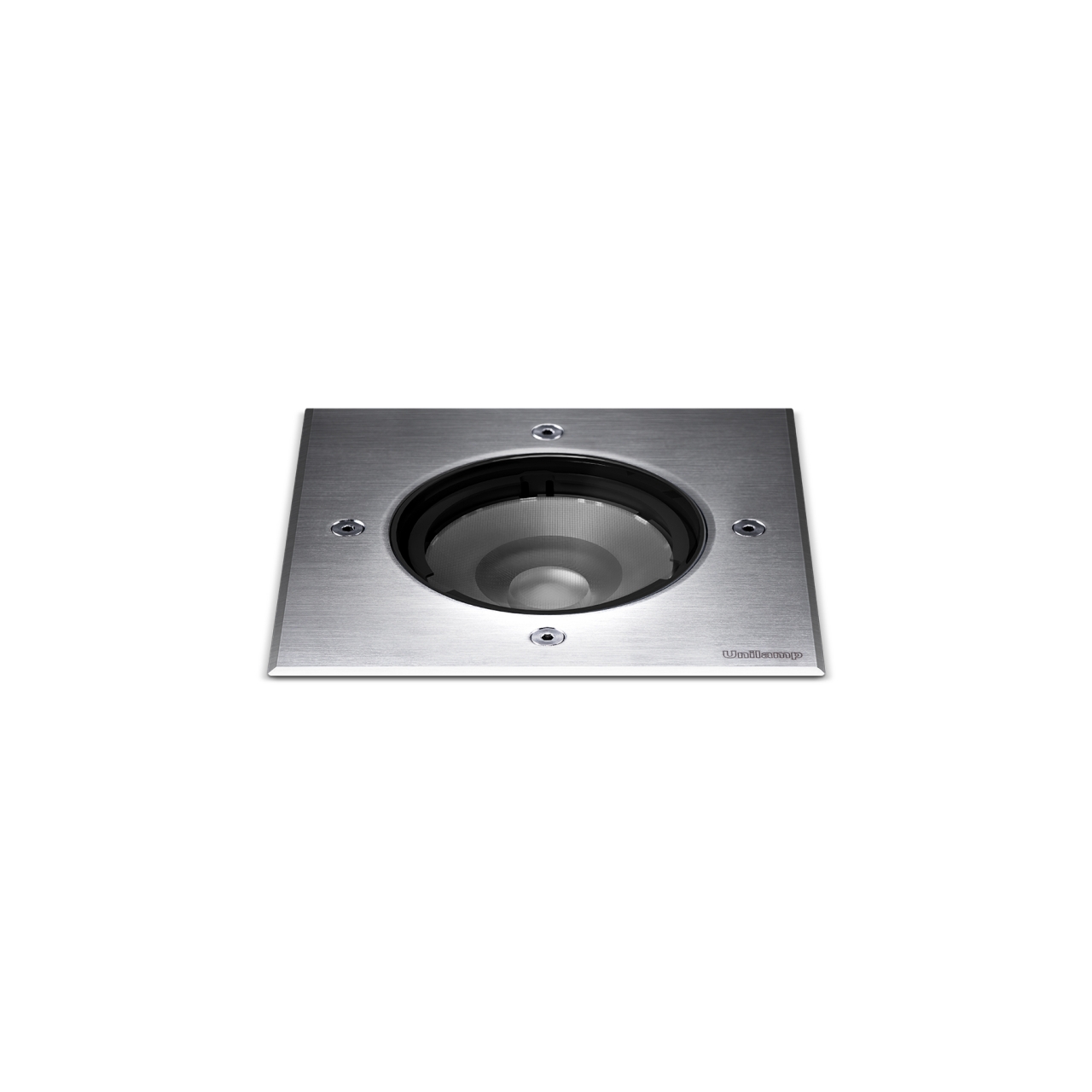

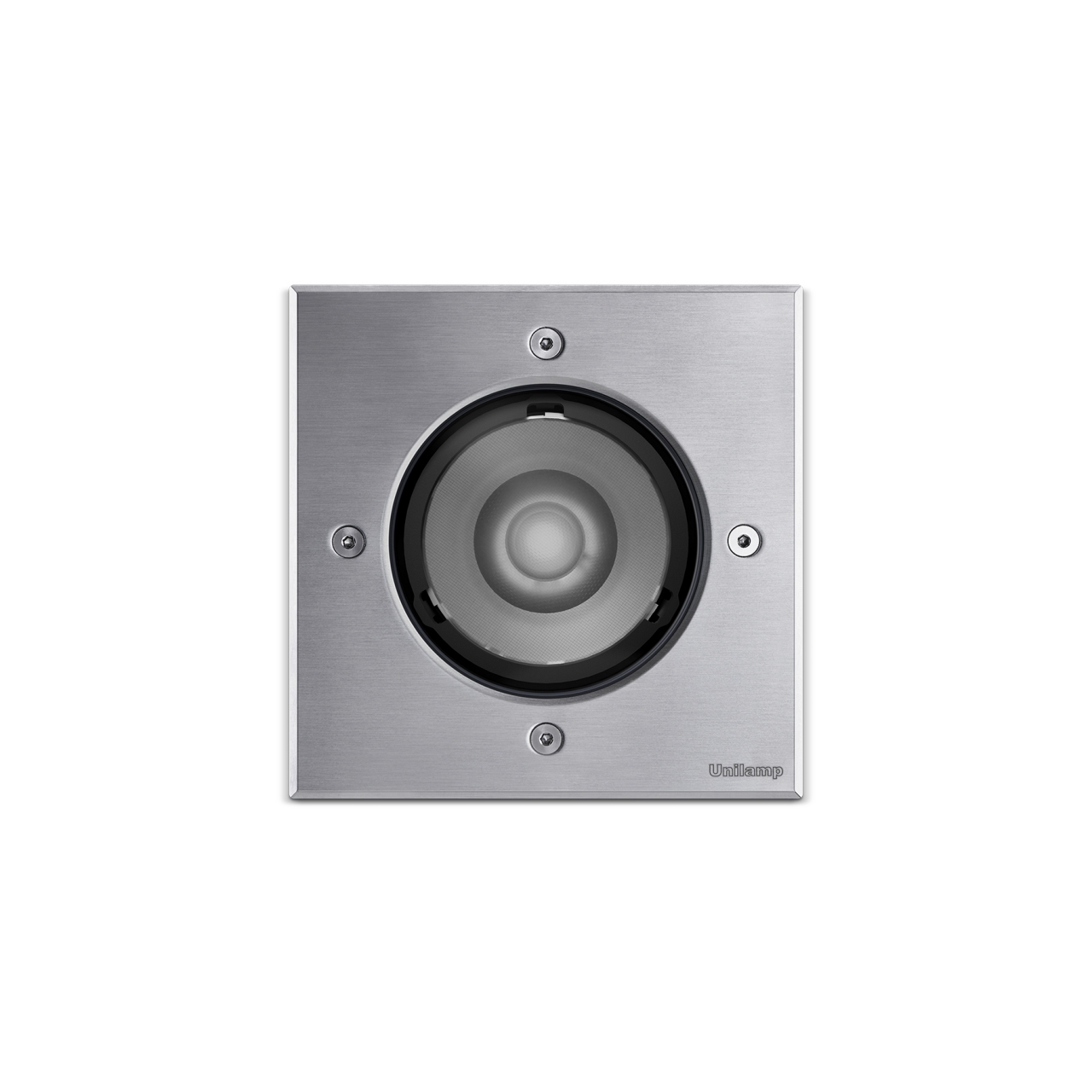

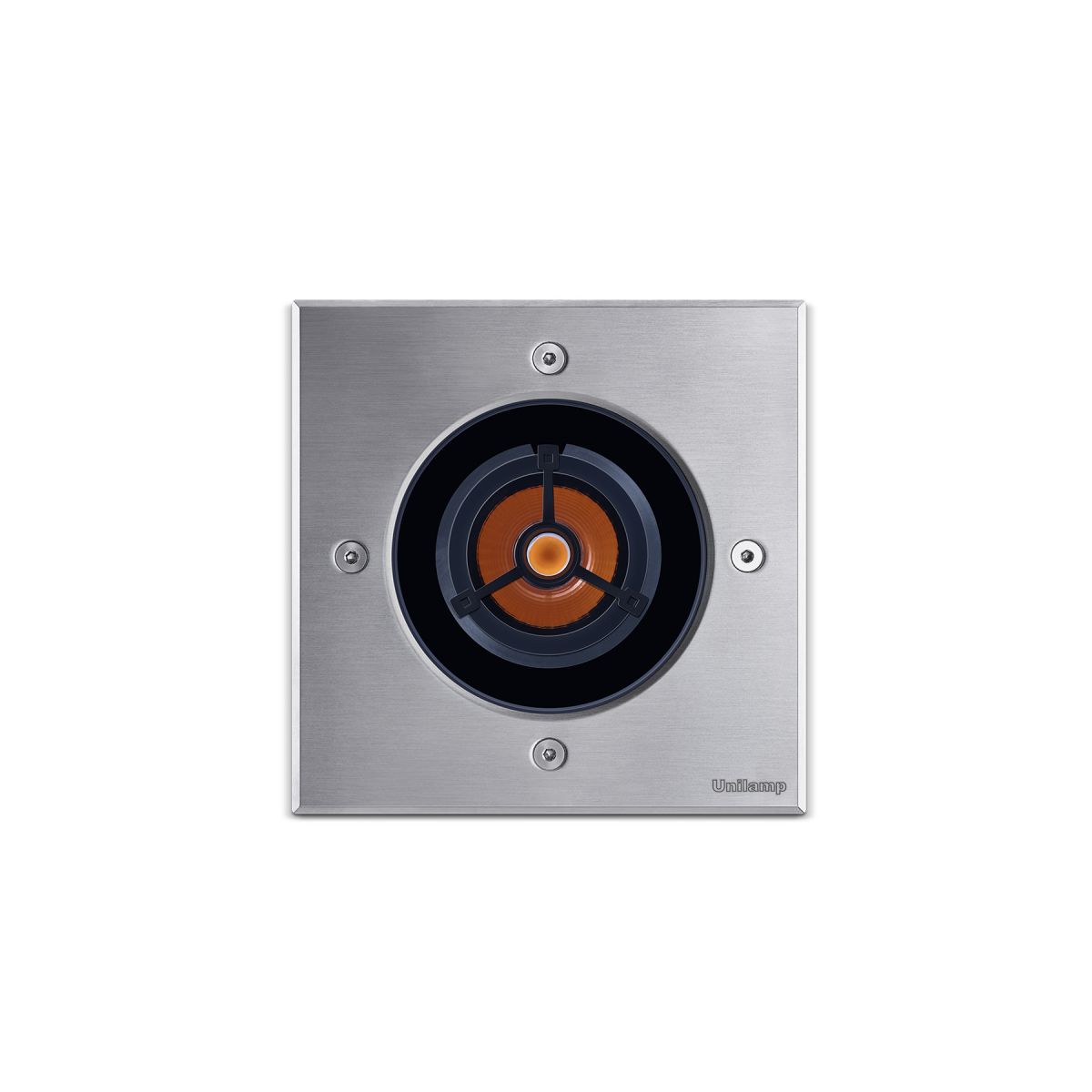

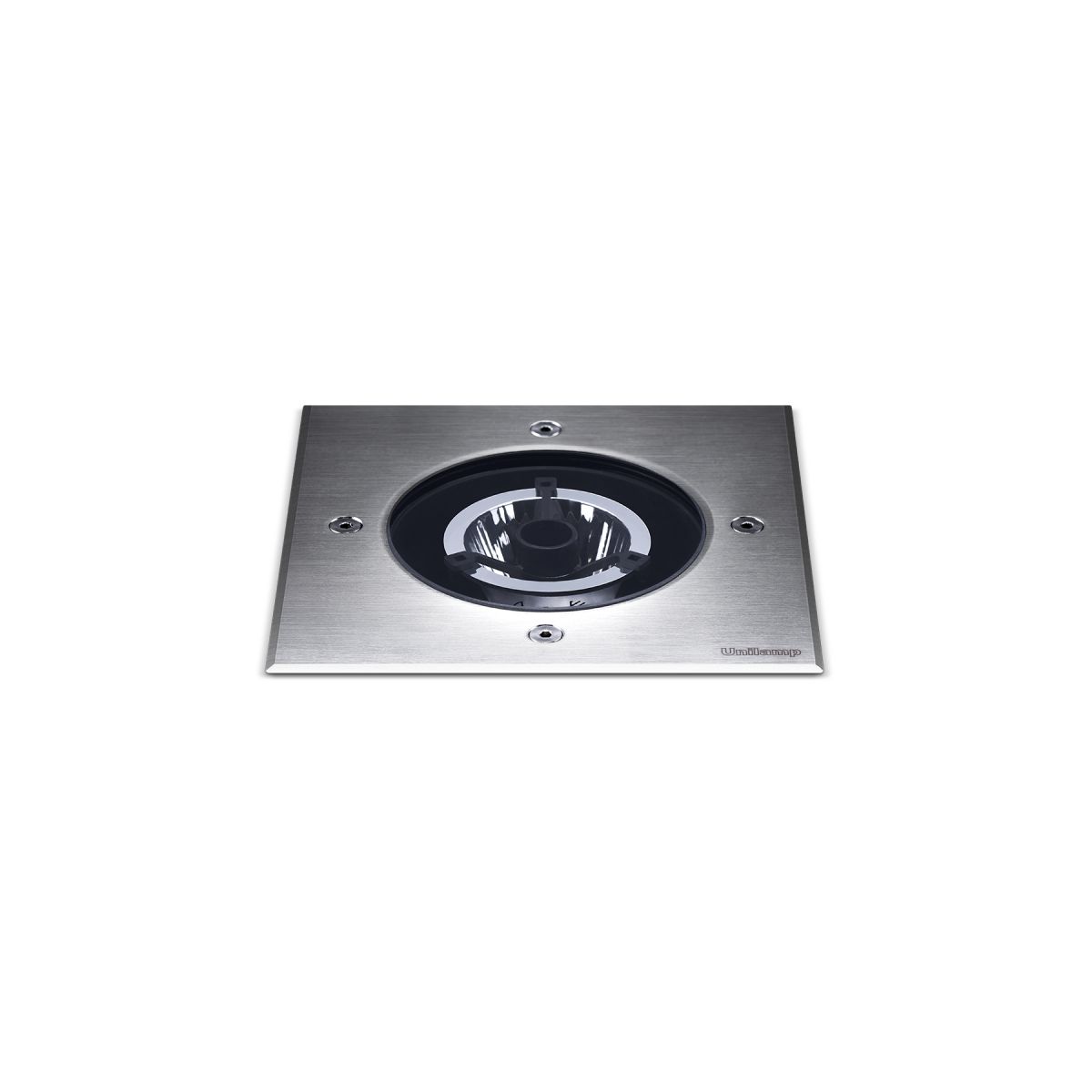

ZET Square

ZET walk-over in ground uplighter with fixed and adjustable optic utilized high-performance LED with additional glare control accessory to deliver the best and comfortable light distribution. ZET Adjustable is available in COB LED or High Power LED with various beam angle option. It is supplied with a post-cured silicone gasket with pre-wire cable for outdoor use. ZET is commonly used to highlight architectural tasks, wall structures, low ceilings, and columns. The glare-shield honey comb and softening lens are available as accessories. A gel-filled IP68 connection device for water tight connection is also available as standard option. Retrofit solution with GU5.3 or GU10 Led lamp base is presented in this family. The installation of this product and drainage system must be done according to the product’s manual.

Clear All
Ordering Code : 9021-C-2-505-91
Lamp : LED Socket : N/A Wattage : 11 W Beam : 31° Lumen : 1440 lm CCT : 2700 K Controller : Remote Specsheet :
ZET Square
ZET Square
ZET Square
ZET Square

Technical Data Download

Accessories

AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-DRG-0120-00
LED constant current driver, 350mA, 15W, with IP67 GFR polymer enclosure, On-Off
AUN-DRG-0121-00
LED constant current driver, 350mA, 18W, with IP67 GFR polymer enclosure, 1-10V
AUN-DRG-0122-00
LED constant current driver, 350mA, 18W, with IP67 GFR polymer enclosure, DALI
AUN-GSH-0056-00
Honeycomb louver, LED, pre-assembly from factory
Ordering Code : 9021-D-2-505-91
Lamp : LED Socket : N/A Wattage : 11 W Beam : 51° Lumen : 1230 lm CCT : 2700 K Controller : Remote Specsheet :
ZET Square
ZET Square
ZET Square
ZET Square

Technical Data Download

Accessories

AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-DRG-0120-00
LED constant current driver, 350mA, 15W, with IP67 GFR polymer enclosure, On-Off
AUN-DRG-0121-00
LED constant current driver, 350mA, 18W, with IP67 GFR polymer enclosure, 1-10V
AUN-DRG-0122-00
LED constant current driver, 350mA, 18W, with IP67 GFR polymer enclosure, DALI
AUN-GSH-0056-00
Honeycomb louver, LED, pre-assembly from factory
Ordering Code : 9021-A-2-710-91
Lamp : LED Socket : N/A Wattage : 12 W Beam : 14° Lumen : 1250 lm CCT : 2700 K Controller : Remote Specsheet :
ZET Square
ZET Square
ZET Square
ZET Square

Technical Data Download

Accessories

AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-DRG-0120-00
LED constant current driver, 350mA, 15W, with IP67 GFR polymer enclosure, On-Off
AUN-DRG-0121-00
LED constant current driver, 350mA, 18W, with IP67 GFR polymer enclosure, 1-10V
AUN-DRG-0122-00
LED constant current driver, 350mA, 18W, with IP67 GFR polymer enclosure, DALI
AUN-GSH-0056-00
Honeycomb louver, LED, pre-assembly from factory
Ordering Code : 9021-5-3-869-91
Lamp : LED Socket : N/A Wattage : 11 W Beam : 13° Lumen : 620 lm CCT : 3000 K Controller : On-Off (AC LED) Specsheet :
ZET Square
ZET Square
ZET Square
ZET Square

Technical Data Download

Accessories

AUN-SOF-0020-00
Softening filter, LED, pre-assembly from factory
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-RCH-0005-00
Recessed installation housing
AUN-GSH-0003-01
Honeycomb louver, LED, pre-assembly from factory
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
Ordering Code : 9021-C-2-902-91
Lamp : LED Socket : N/A Wattage : 11 W Beam : 31° Lumen : 1510 lm CCT : 3000 K Controller : Remote Specsheet :
ZET Square
ZET Square
ZET Square
ZET Square

Technical Data Download

Accessories

AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-DRG-0120-00
LED constant current driver, 350mA, 15W, with IP67 GFR polymer enclosure, On-Off
AUN-DRG-0121-00
LED constant current driver, 350mA, 18W, with IP67 GFR polymer enclosure, 1-10V
AUN-DRG-0122-00
LED constant current driver, 350mA, 18W, with IP67 GFR polymer enclosure, DALI
AUN-GSH-0056-00
Honeycomb louver, LED, pre-assembly from factory
Ordering Code : 9021-D-2-902-91
Lamp : LED Socket : N/A Wattage : 11 W Beam : 51° Lumen : 1290 lm CCT : 3000 K Controller : Remote Specsheet :
ZET Square
ZET Square
ZET Square
ZET Square

Technical Data Download

Accessories

AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-DRG-0120-00
LED constant current driver, 350mA, 15W, with IP67 GFR polymer enclosure, On-Off
AUN-DRG-0121-00
LED constant current driver, 350mA, 18W, with IP67 GFR polymer enclosure, 1-10V
AUN-DRG-0122-00
LED constant current driver, 350mA, 18W, with IP67 GFR polymer enclosure, DALI
AUN-GSH-0056-00
Honeycomb louver, LED, pre-assembly from factory
Ordering Code : 9021-A-2-719-91
Lamp : LED Socket : N/A Wattage : 12 W Beam : 14° Lumen : 1250 lm CCT : 3000 K Controller : Remote Specsheet :
ZET Square
ZET Square
ZET Square
ZET Square

Technical Data Download

Accessories

AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-DRG-0120-00
LED constant current driver, 350mA, 15W, with IP67 GFR polymer enclosure, On-Off
AUN-DRG-0121-00
LED constant current driver, 350mA, 18W, with IP67 GFR polymer enclosure, 1-10V
AUN-DRG-0122-00
LED constant current driver, 350mA, 18W, with IP67 GFR polymer enclosure, DALI
AUN-GSH-0056-00
Honeycomb louver, LED, pre-assembly from factory
Ordering Code : 9021-0-2-918-91
Lamp : LED Socket : N/A Wattage : 8.6 W Beam : 15° Lumen : 630 lm CCT : 4000 K Controller : Remote Specsheet :
ZET Square
ZET Square
ZET Square
ZET Square

Technical Data Download

Accessories

AUN-DRG-0003-01
LED constant current driver, 350mA, 15W, with IP67 GFR polymer enclosure, On-Off
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-RCH-0005-00
Recessed installation housing
AUN-CON-0007-00
IP68 distribution box, series wiring , for 1-3 luminaires
AUN-GSH-0003-01
Honeycomb louver, LED, pre-assembly from factory
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
Ordering Code : 9021-5-3-870-91
Lamp : LED Socket : N/A Wattage : 11 W Beam : 13° Lumen : 630 lm CCT : 4000 K Controller : On-Off (AC LED) Specsheet :
ZET Square
ZET Square
ZET Square
ZET Square

Technical Data Download

Accessories

AUN-SOF-0020-00
Softening filter, LED, pre-assembly from factory
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-RCH-0005-00
Recessed installation housing
AUN-GSH-0003-01
Honeycomb louver, LED, pre-assembly from factory
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
Ordering Code : 9021-C-2-905-91
Lamp : LED Socket : N/A Wattage : 11 W Beam : 31° Lumen : 1540 lm CCT : 4000 K Controller : Remote Specsheet :
ZET Square
ZET Square
ZET Square
ZET Square

Technical Data Download

Accessories

AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-DRG-0120-00
LED constant current driver, 350mA, 15W, with IP67 GFR polymer enclosure, On-Off
AUN-DRG-0121-00
LED constant current driver, 350mA, 18W, with IP67 GFR polymer enclosure, 1-10V
AUN-DRG-0122-00
LED constant current driver, 350mA, 18W, with IP67 GFR polymer enclosure, DALI
AUN-GSH-0056-00
Honeycomb louver, LED, pre-assembly from factory
Ordering Code : 9021-D-2-905-91
Lamp : LED Socket : N/A Wattage : 11 W Beam : 51° Lumen : 1320 lm CCT : 4000 K Controller : Remote Specsheet :
ZET Square
ZET Square
ZET Square
ZET Square

Technical Data Download

Accessories

AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-DRG-0120-00
LED constant current driver, 350mA, 15W, with IP67 GFR polymer enclosure, On-Off
AUN-DRG-0121-00
LED constant current driver, 350mA, 18W, with IP67 GFR polymer enclosure, 1-10V
AUN-DRG-0122-00
LED constant current driver, 350mA, 18W, with IP67 GFR polymer enclosure, DALI
AUN-GSH-0056-00
Honeycomb louver, LED, pre-assembly from factory
Ordering Code : 9021-A-2-720-91
Lamp : LED Socket : N/A Wattage : 12 W Beam : 14° Lumen : 1340 lm CCT : 4000 K Controller : Remote Specsheet :
ZET Square
ZET Square
ZET Square
ZET Square

Technical Data Download

Accessories

AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-DRG-0120-00
LED constant current driver, 350mA, 15W, with IP67 GFR polymer enclosure, On-Off
AUN-DRG-0121-00
LED constant current driver, 350mA, 18W, with IP67 GFR polymer enclosure, 1-10V
AUN-DRG-0122-00
LED constant current driver, 350mA, 18W, with IP67 GFR polymer enclosure, DALI
AUN-GSH-0056-00
Honeycomb louver, LED, pre-assembly from factory
Ordering Code : 9021-0-2-221-91
Lamp : Led Retrofit QPAR51 Socket : GU10 Wattage : N/A Beam : N/A Lumen : N/A CCT : 2700-6500 K Controller : On-Off Specsheet :
ZET Square
ZET Square
ZET Square
ZET Square

Technical Data Download

Accessories

AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-SOF-0006-00
Softening lens, Halogen, pre-assembly from factory
AUN-RCH-0005-00
Recessed installation housing
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
Ordering Code : 9021-0-2-281-91
Lamp : Led Retrofit QR-CB51 12V Socket : GU5.3 Wattage : N/A Beam : N/A Lumen : N/A CCT : 2700-6500 K Controller : Remote Specsheet :
ZET Square
ZET Square
ZET Square
ZET Square

Technical Data Download

Accessories

AUN-DRG-0115-01
Electronic Transformer, 12V, 20-60W, with IP67 GFR polymer enclosure
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-SOF-0006-00
Softening lens, Halogen, pre-assembly from factory
AUN-GSH-0002-01
Honeycomb louver, QR-CB51, pre-assembly from factory
AUN-RCH-0005-00
Recessed installation housing
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
