ZET Square Adjustable - CV

ZET walk-over in ground uplighter with fixed and adjustable optic utilized high-performance LED with additional glare control accessory to deliver the best and comfortable light distribution. ZET Adjustable is available in COB LED or High Power LED with various beam angle option. It is supplied with a post-cured silicone gasket with pre-wire cable for outdoor use. ZET is commonly used to highlight architectural tasks, wall structures, low ceilings, and columns. The glare-shield honey comb and softening lens are available as accessories. A gel-filled IP68 connection device for water tight connection is also available as standard option. Retrofit solution with GU5.3 or GU10 Led lamp base is presented in this family. The installation of this product and drainage system must be done according to the product’s manual.


 New Ordering Code : 9023-C-2-585-91

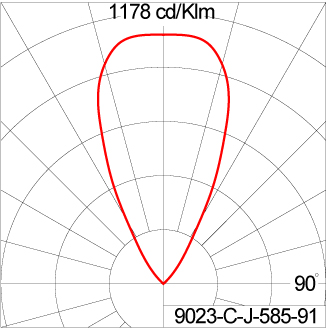

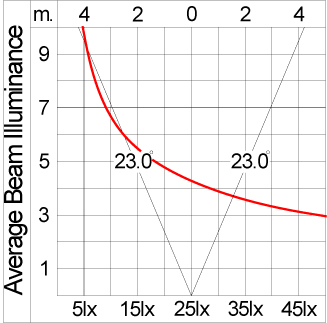

Lamp : LED Socket : N/A Wattage : 8.1 W Beam : 46° Lumen : 790 lm CCT : 4000 K Controller : Remote Specsheet :
ZET Square Adjustable - CV
ZET Square Adjustable - CV

Accessories

AUN-GSH-0008-00
Honeycomb louver, LED, pre-assembly from factory
AUN-SOF-0022-00
Softening filter, LED, pre-assembly from factory
AUN-DRG-0011-00
LED constant voltage driver, 24VDC, 150W
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-DRG-0022-00
LED constant voltage driver, 24VDC, 60W, DALI
AUN-DRG-0023-00
LED constant voltage driver, 24VDC, 120W, DALI
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-CON-0003-00
IP68 Connector, cable diameter 8-10mm, gel-filled for through wiring
AUN-DRG-0024-00
LED constant voltage driver, 24VDC, 200W
AUN-DRG-0027-00
LED constant voltage driver, 24VDC, 72W
AUN-CAB-0040-00
Cable H07RN-F 2x1sqmm, L= 2000mm
AUN-DRG-0118-00
LED constant voltage driver, 24VDC, 30W
