Ordering Code : 2040-A-3-393-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 11°
Lumen : 1820 lm
CCT : 2700 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-A-4-393-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 11°
Lumen : 1820 lm
CCT : 2700 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-A-5-393-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 11°
Lumen : 1820 lm
CCT : 2700 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-A-A-393-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 11°
Lumen : 1820 lm
CCT : 2700 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-B-3-393-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 29°
Lumen : 1660 lm
CCT : 2700 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-B-4-393-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 29°
Lumen : 1660 lm
CCT : 2700 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-B-5-393-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 29°
Lumen : 1660 lm
CCT : 2700 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-B-A-393-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 29°
Lumen : 1660 lm
CCT : 2700 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-C-3-393-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 42°
Lumen : 1710 lm
CCT : 2700 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off

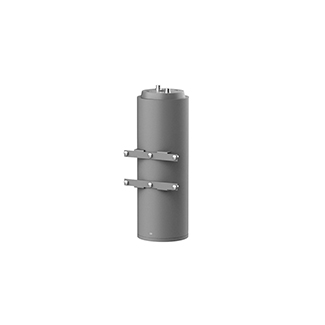

AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-C-4-393-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 42°
Lumen : 1710 lm
CCT : 2700 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-C-5-393-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 42°
Lumen : 1710 lm
CCT : 2700 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-C-A-393-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 42°
Lumen : 1710 lm
CCT : 2700 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-H-3-393-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 44°/14°
Lumen : 1690 lm
CCT : 2700 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-H-4-393-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 44°/14°
Lumen : 1690 lm
CCT : 2700 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-H-5-393-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 44°/14°
Lumen : 1690 lm
CCT : 2700 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-H-A-393-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 44°/14°
Lumen : 1690 lm
CCT : 2700 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-N-3-393-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 14°/44°
Lumen : 1690 lm
CCT : 2700 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-N-4-393-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 14°/44°
Lumen : 1690 lm
CCT : 2700 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-N-5-393-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 14°/44°
Lumen : 1690 lm
CCT : 2700 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-N-A-393-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 14°/44°
Lumen : 1690 lm
CCT : 2700 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-A-3-387-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 11°
Lumen : 2500 lm
CCT : 2700 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-A-4-387-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 11°
Lumen : 2500 lm
CCT : 2700 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-A-5-387-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 11°
Lumen : 2500 lm
CCT : 2700 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-A-A-387-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 11°
Lumen : 2500 lm
CCT : 2700 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-B-3-387-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 29°
Lumen : 2280 lm
CCT : 2700 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-B-4-387-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 29°
Lumen : 2280 lm
CCT : 2700 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-B-5-387-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 29°
Lumen : 2280 lm
CCT : 2700 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-B-A-387-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 29°
Lumen : 2280 lm
CCT : 2700 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-C-3-387-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 42°
Lumen : 2340 lm
CCT : 2700 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-C-4-387-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 42°
Lumen : 2340 lm
CCT : 2700 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-C-5-387-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 42°
Lumen : 2340 lm
CCT : 2700 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-C-A-387-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 42°
Lumen : 2340 lm
CCT : 2700 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-H-3-387-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 44°/14°
Lumen : 2320 lm
CCT : 2700 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-H-4-387-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 44°/14°
Lumen : 2320 lm
CCT : 2700 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-H-5-387-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 44°/14°
Lumen : 2320 lm
CCT : 2700 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-H-A-387-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 44°/14°
Lumen : 2320 lm
CCT : 2700 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-N-3-387-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 14°/44°
Lumen : 2320 lm
CCT : 2700 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-N-4-387-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 14°/44°
Lumen : 2320 lm
CCT : 2700 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-N-5-387-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 14°/44°
Lumen : 2320 lm
CCT : 2700 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-N-A-387-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 14°/44°
Lumen : 2320 lm
CCT : 2700 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-6-3-503-XX
Lamp : LED
Socket : N/A
Wattage : 33 W
Beam : 19°
Lumen : 3370 lm
CCT : 2700 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-6-4-503-XX
Lamp : LED
Socket : N/A
Wattage : 33 W
Beam : 19°
Lumen : 3370 lm
CCT : 2700 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-6-5-503-XX
Lamp : LED
Socket : N/A
Wattage : 33 W
Beam : 19°
Lumen : 3370 lm
CCT : 2700 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-B-3-503-XX
Lamp : LED
Socket : N/A
Wattage : 33 W
Beam : 26°
Lumen : 3340 lm
CCT : 2700 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-B-4-503-XX
Lamp : LED
Socket : N/A
Wattage : 33 W
Beam : 26°
Lumen : 3340 lm
CCT : 2700 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-B-5-503-XX
Lamp : LED
Socket : N/A
Wattage : 33 W
Beam : 26°
Lumen : 3340 lm
CCT : 2700 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-C-3-503-XX
Lamp : LED
Socket : N/A
Wattage : 33 W
Beam : 34°
Lumen : 3350 lm
CCT : 2700 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-C-4-503-XX
Lamp : LED
Socket : N/A
Wattage : 33 W
Beam : 34°
Lumen : 3350 lm
CCT : 2700 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-C-5-503-XX
Lamp : LED
Socket : N/A
Wattage : 33 W
Beam : 34°
Lumen : 3350 lm
CCT : 2700 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-D-3-503-XX
Lamp : LED
Socket : N/A
Wattage : 33 W
Beam : 55°
Lumen : 3150 lm
CCT : 2700 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-D-4-503-XX
Lamp : LED
Socket : N/A
Wattage : 33 W
Beam : 55°
Lumen : 3150 lm
CCT : 2700 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-D-5-503-XX
Lamp : LED
Socket : N/A
Wattage : 33 W
Beam : 55°
Lumen : 3150 lm
CCT : 2700 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-6-A-503-XX
Lamp : LED
Socket : N/A
Wattage : 34 W
Beam : 19°
Lumen : 3370 lm
CCT : 2700 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-B-A-503-XX
Lamp : LED
Socket : N/A
Wattage : 34 W
Beam : 26°
Lumen : 3340 lm
CCT : 2700 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-C-A-503-XX
Lamp : LED
Socket : N/A
Wattage : 34 W
Beam : 34°
Lumen : 3350 lm
CCT : 2700 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-D-A-503-XX
Lamp : LED
Socket : N/A
Wattage : 34 W
Beam : 55°
Lumen : 3150 lm
CCT : 2700 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-A-3-394-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 11°
Lumen : 1820 lm
CCT : 3000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-A-4-394-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 11°
Lumen : 1820 lm
CCT : 3000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-A-5-394-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 11°
Lumen : 1820 lm
CCT : 3000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-A-A-394-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 11°
Lumen : 1820 lm
CCT : 3000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-B-3-394-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 29°
Lumen : 1660 lm
CCT : 3000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-B-4-394-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 29°
Lumen : 1660 lm
CCT : 3000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-B-5-394-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 29°
Lumen : 1660 lm
CCT : 3000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-B-A-394-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 29°
Lumen : 1660 lm
CCT : 3000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-C-3-394-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 42°
Lumen : 1710 lm
CCT : 3000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-C-4-394-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 42°
Lumen : 1710 lm
CCT : 3000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-C-5-394-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 42°
Lumen : 1710 lm
CCT : 3000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-C-A-394-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 42°
Lumen : 1710 lm
CCT : 3000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-H-3-394-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 44°/14°
Lumen : 1690 lm
CCT : 3000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-H-4-394-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 44°/14°
Lumen : 1690 lm
CCT : 3000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-H-5-394-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 44°/14°
Lumen : 1690 lm
CCT : 3000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-H-A-394-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 44°/14°
Lumen : 1690 lm
CCT : 3000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-N-3-394-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 14°/44°
Lumen : 1690 lm
CCT : 3000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-N-4-394-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 14°/44°
Lumen : 1690 lm
CCT : 3000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-N-5-394-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 14°/44°
Lumen : 1690 lm
CCT : 3000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-N-A-394-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 14°/44°
Lumen : 1690 lm
CCT : 3000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-4-3-397-XX
Lamp : LED
Socket : N/A
Wattage : 21 W
Beam : 8°
Lumen : 1580 lm
CCT : 3000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-4-4-397-XX
Lamp : LED
Socket : N/A
Wattage : 21 W
Beam : 8°
Lumen : 1580 lm
CCT : 3000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-4-5-397-XX
Lamp : LED
Socket : N/A
Wattage : 21 W
Beam : 8°
Lumen : 1580 lm
CCT : 3000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-4-A-397-XX
Lamp : LED
Socket : N/A
Wattage : 21 W
Beam : 8°
Lumen : 1580 lm
CCT : 3000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-E-3-668-XX
Lamp : LED
Socket : N/A
Wattage : 25 W
Beam : 90°
Lumen : 3460 lm
CCT : 3000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-E-4-668-XX
Lamp : LED
Socket : N/A
Wattage : 25 W
Beam : 90°
Lumen : 3460 lm
CCT : 3000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-E-5-668-XX
Lamp : LED
Socket : N/A
Wattage : 25 W
Beam : 90°
Lumen : 3460 lm
CCT : 3000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-E-A-668-XX
Lamp : LED
Socket : N/A
Wattage : 25 W
Beam : 90°
Lumen : 3460 lm
CCT : 3000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-U-3-668-XX
Lamp : LED
Socket : N/A
Wattage : 25 W
Beam : T1
Lumen : 3160 lm
CCT : 3000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-U-4-668-XX
Lamp : LED
Socket : N/A
Wattage : 25 W
Beam : T1
Lumen : 3160 lm
CCT : 3000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-U-5-668-XX
Lamp : LED
Socket : N/A
Wattage : 25 W
Beam : T1
Lumen : 3160 lm
CCT : 3000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-U-A-668-XX
Lamp : LED
Socket : N/A
Wattage : 25 W
Beam : T1
Lumen : 3160 lm
CCT : 3000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-I-3-668-XX
Lamp : LED
Socket : N/A
Wattage : 25 W
Beam : T2
Lumen : 3270 lm
CCT : 3000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-I-4-668-XX
Lamp : LED
Socket : N/A
Wattage : 25 W
Beam : T2
Lumen : 3270 lm
CCT : 3000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-I-5-668-XX
Lamp : LED
Socket : N/A
Wattage : 25 W
Beam : T2
Lumen : 3270 lm
CCT : 3000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-I-A-668-XX
Lamp : LED
Socket : N/A
Wattage : 25 W
Beam : T2
Lumen : 3270 lm
CCT : 3000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-J-3-668-XX
Lamp : LED
Socket : N/A
Wattage : 25 W
Beam : T3
Lumen : 2950 lm
CCT : 3000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-J-4-668-XX
Lamp : LED
Socket : N/A
Wattage : 25 W
Beam : T3
Lumen : 2950 lm
CCT : 3000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-J-5-668-XX
Lamp : LED
Socket : N/A
Wattage : 25 W
Beam : T3
Lumen : 2950 lm
CCT : 3000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-J-A-668-XX
Lamp : LED
Socket : N/A
Wattage : 25 W
Beam : T3
Lumen : 2950 lm
CCT : 3000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-A-3-388-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 11°
Lumen : 2500 lm
CCT : 3000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-A-4-388-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 11°
Lumen : 2500 lm
CCT : 3000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-A-5-388-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 11°
Lumen : 2500 lm
CCT : 3000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-A-A-388-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 11°
Lumen : 2500 lm
CCT : 3000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-B-3-388-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 29°
Lumen : 2280 lm
CCT : 3000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-B-4-388-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 29°
Lumen : 2280 lm
CCT : 3000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-B-5-388-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 29°
Lumen : 2280 lm
CCT : 3000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-B-A-388-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 29°
Lumen : 2280 lm
CCT : 3000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-C-3-388-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 42°
Lumen : 2340 lm
CCT : 3000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-C-4-388-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 42°
Lumen : 2340 lm
CCT : 3000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-C-5-388-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 42°
Lumen : 2340 lm
CCT : 3000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-C-A-388-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 42°
Lumen : 2340 lm
CCT : 3000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-H-3-388-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 44°/14°
Lumen : 2320 lm
CCT : 3000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-H-4-388-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 44°/14°
Lumen : 2320 lm
CCT : 3000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-H-5-388-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 44°/14°
Lumen : 2320 lm
CCT : 3000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-H-A-388-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 44°/14°
Lumen : 2320 lm
CCT : 3000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-N-3-388-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 14°/44°
Lumen : 2320 lm
CCT : 3000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-N-4-388-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 14°/44°
Lumen : 2320 lm
CCT : 3000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-N-5-388-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 14°/44°
Lumen : 2320 lm
CCT : 3000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-N-A-388-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 14°/44°
Lumen : 2320 lm
CCT : 3000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-4-3-391-XX
Lamp : LED
Socket : N/A
Wattage : 28 W
Beam : 8°
Lumen : 2070 lm
CCT : 3000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-4-4-391-XX
Lamp : LED
Socket : N/A
Wattage : 28 W
Beam : 8°
Lumen : 2070 lm
CCT : 3000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-4-5-391-XX
Lamp : LED
Socket : N/A
Wattage : 28 W
Beam : 8°
Lumen : 2070 lm
CCT : 3000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-4-A-391-XX
Lamp : LED
Socket : N/A
Wattage : 28 W
Beam : 8°
Lumen : 2070 lm
CCT : 3000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-6-3-901-XX
Lamp : LED
Socket : N/A
Wattage : 33 W
Beam : 19°
Lumen : 3560 lm
CCT : 3000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-6-4-901-XX
Lamp : LED
Socket : N/A
Wattage : 33 W
Beam : 19°
Lumen : 3560 lm
CCT : 3000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-6-5-901-XX
Lamp : LED
Socket : N/A
Wattage : 33 W
Beam : 19°
Lumen : 3560 lm
CCT : 3000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-B-3-901-XX
Lamp : LED
Socket : N/A
Wattage : 33 W
Beam : 26°
Lumen : 3530 lm
CCT : 3000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-B-4-901-XX
Lamp : LED
Socket : N/A
Wattage : 33 W
Beam : 26°
Lumen : 3530 lm
CCT : 3000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-B-5-901-XX
Lamp : LED
Socket : N/A
Wattage : 33 W
Beam : 26°
Lumen : 3530 lm
CCT : 3000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-C-3-901-XX
Lamp : LED
Socket : N/A
Wattage : 33 W
Beam : 34°
Lumen : 3540 lm
CCT : 3000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-C-4-901-XX
Lamp : LED
Socket : N/A
Wattage : 33 W
Beam : 34°
Lumen : 3540 lm
CCT : 3000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-C-5-901-XX
Lamp : LED
Socket : N/A
Wattage : 33 W
Beam : 34°
Lumen : 3540 lm
CCT : 3000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-D-3-901-XX
Lamp : LED
Socket : N/A
Wattage : 33 W
Beam : 55°
Lumen : 3330 lm
CCT : 3000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-D-4-901-XX
Lamp : LED
Socket : N/A
Wattage : 33 W
Beam : 55°
Lumen : 3330 lm
CCT : 3000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-D-5-901-XX
Lamp : LED
Socket : N/A
Wattage : 33 W
Beam : 55°
Lumen : 3330 lm
CCT : 3000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-6-A-901-XX
Lamp : LED
Socket : N/A
Wattage : 34 W
Beam : 19°
Lumen : 3560 lm
CCT : 3000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-B-A-901-XX
Lamp : LED
Socket : N/A
Wattage : 34 W
Beam : 26°
Lumen : 3530 lm
CCT : 3000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-C-A-901-XX
Lamp : LED
Socket : N/A
Wattage : 34 W
Beam : 34°
Lumen : 3540 lm
CCT : 3000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-D-A-901-XX
Lamp : LED
Socket : N/A
Wattage : 34 W
Beam : 55°
Lumen : 3330 lm
CCT : 3000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-E-3-666-XX
Lamp : LED
Socket : N/A
Wattage : 35 W
Beam : 90°
Lumen : 4720 lm
CCT : 3000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-E-4-666-XX
Lamp : LED
Socket : N/A
Wattage : 35 W
Beam : 90°
Lumen : 4720 lm
CCT : 3000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-E-5-666-XX
Lamp : LED
Socket : N/A
Wattage : 35 W
Beam : 90°
Lumen : 4720 lm
CCT : 3000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-E-A-666-XX
Lamp : LED
Socket : N/A
Wattage : 35 W
Beam : 90°
Lumen : 4720 lm
CCT : 3000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-U-3-666-XX
Lamp : LED
Socket : N/A
Wattage : 35 W
Beam : T1
Lumen : 4310 lm
CCT : 3000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-U-4-666-XX
Lamp : LED
Socket : N/A
Wattage : 35 W
Beam : T1
Lumen : 4310 lm
CCT : 3000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-U-5-666-XX
Lamp : LED
Socket : N/A
Wattage : 35 W
Beam : T1
Lumen : 4310 lm
CCT : 3000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-U-A-666-XX
Lamp : LED
Socket : N/A
Wattage : 35 W
Beam : T1
Lumen : 4310 lm
CCT : 3000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-I-3-666-XX
Lamp : LED
Socket : N/A
Wattage : 35 W
Beam : T2
Lumen : 4460 lm
CCT : 3000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-I-4-666-XX
Lamp : LED
Socket : N/A
Wattage : 35 W
Beam : T2
Lumen : 4460 lm
CCT : 3000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-I-5-666-XX
Lamp : LED
Socket : N/A
Wattage : 35 W
Beam : T2
Lumen : 4460 lm
CCT : 3000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-I-A-666-XX
Lamp : LED
Socket : N/A
Wattage : 35 W
Beam : T2
Lumen : 4460 lm
CCT : 3000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-J-3-666-XX
Lamp : LED
Socket : N/A
Wattage : 35 W
Beam : T3
Lumen : 4020 lm
CCT : 3000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-J-4-666-XX
Lamp : LED
Socket : N/A
Wattage : 35 W
Beam : T3
Lumen : 4020 lm
CCT : 3000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-J-5-666-XX
Lamp : LED
Socket : N/A
Wattage : 35 W
Beam : T3
Lumen : 4020 lm
CCT : 3000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-J-A-666-XX
Lamp : LED
Socket : N/A
Wattage : 35 W
Beam : T3
Lumen : 4020 lm
CCT : 3000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-A-3-395-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 11°
Lumen : 1970 lm
CCT : 4000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-A-4-395-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 11°
Lumen : 1970 lm
CCT : 4000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-A-5-395-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 11°
Lumen : 1970 lm
CCT : 4000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-A-A-395-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 11°
Lumen : 1970 lm
CCT : 4000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-B-3-395-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 29°
Lumen : 1790 lm
CCT : 4000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-B-4-395-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 29°
Lumen : 1790 lm
CCT : 4000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-B-5-395-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 29°
Lumen : 1790 lm
CCT : 4000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-B-A-395-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 29°
Lumen : 1790 lm
CCT : 4000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-C-3-395-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 42°
Lumen : 1840 lm
CCT : 4000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-C-4-395-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 42°
Lumen : 1840 lm
CCT : 4000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-C-5-395-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 42°
Lumen : 1840 lm
CCT : 4000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-C-A-395-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 42°
Lumen : 1840 lm
CCT : 4000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-H-3-395-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 44°/14°
Lumen : 1820 lm
CCT : 4000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-H-4-395-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 44°/14°
Lumen : 1820 lm
CCT : 4000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-H-5-395-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 44°/14°
Lumen : 1820 lm
CCT : 4000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-H-A-395-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 44°/14°
Lumen : 1820 lm
CCT : 4000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-N-3-395-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 14°/44°
Lumen : 1820 lm
CCT : 4000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-N-4-395-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 14°/44°
Lumen : 1820 lm
CCT : 4000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-N-5-395-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 14°/44°
Lumen : 1820 lm
CCT : 4000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-N-A-395-XX
Lamp : LED
Socket : N/A
Wattage : 20 W
Beam : 14°/44°
Lumen : 1820 lm
CCT : 4000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-E-3-669-XX
Lamp : LED
Socket : N/A
Wattage : 25 W
Beam : 90°
Lumen : 3640 lm
CCT : 4000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-E-4-669-XX
Lamp : LED
Socket : N/A
Wattage : 25 W
Beam : 90°
Lumen : 3640 lm
CCT : 4000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-E-5-669-XX
Lamp : LED
Socket : N/A
Wattage : 25 W
Beam : 90°
Lumen : 3640 lm
CCT : 4000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-E-A-669-XX
Lamp : LED
Socket : N/A
Wattage : 25 W
Beam : 90°
Lumen : 3640 lm
CCT : 4000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-U-3-669-XX
Lamp : LED
Socket : N/A
Wattage : 25 W
Beam : T1
Lumen : 3320 lm
CCT : 4000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-U-4-669-XX
Lamp : LED
Socket : N/A
Wattage : 25 W
Beam : T1
Lumen : 3320 lm
CCT : 4000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-U-5-669-XX
Lamp : LED
Socket : N/A
Wattage : 25 W
Beam : T1
Lumen : 3320 lm
CCT : 4000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-U-A-669-XX
Lamp : LED
Socket : N/A
Wattage : 25 W
Beam : T1
Lumen : 3320 lm
CCT : 4000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-I-3-669-XX
Lamp : LED
Socket : N/A
Wattage : 25 W
Beam : T2
Lumen : 3440 lm
CCT : 4000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-I-4-669-XX
Lamp : LED
Socket : N/A
Wattage : 25 W
Beam : T2
Lumen : 3440 lm
CCT : 4000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-I-5-669-XX
Lamp : LED
Socket : N/A
Wattage : 25 W
Beam : T2
Lumen : 3440 lm
CCT : 4000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-I-A-669-XX
Lamp : LED
Socket : N/A
Wattage : 25 W
Beam : T2
Lumen : 3440 lm
CCT : 4000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-J-3-669-XX
Lamp : LED
Socket : N/A
Wattage : 25 W
Beam : T3
Lumen : 3100 lm
CCT : 4000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-J-4-669-XX
Lamp : LED
Socket : N/A
Wattage : 25 W
Beam : T3
Lumen : 3100 lm
CCT : 4000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-J-5-669-XX
Lamp : LED
Socket : N/A
Wattage : 25 W
Beam : T3
Lumen : 3100 lm
CCT : 4000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-J-A-669-XX
Lamp : LED
Socket : N/A
Wattage : 25 W
Beam : T3
Lumen : 3100 lm
CCT : 4000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-A-3-389-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 11°
Lumen : 2660 lm
CCT : 4000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-A-4-389-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 11°
Lumen : 2660 lm
CCT : 4000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-A-5-389-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 11°
Lumen : 2660 lm
CCT : 4000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-A-A-389-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 11°
Lumen : 2660 lm
CCT : 4000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-B-3-389-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 29°
Lumen : 2430 lm
CCT : 4000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-B-4-389-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 29°
Lumen : 2430 lm
CCT : 4000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-B-5-389-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 29°
Lumen : 2430 lm
CCT : 4000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-B-A-389-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 29°
Lumen : 2430 lm
CCT : 4000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-C-3-389-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 42°
Lumen : 2490 lm
CCT : 4000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-C-4-389-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 42°
Lumen : 2490 lm
CCT : 4000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-C-5-389-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 42°
Lumen : 2490 lm
CCT : 4000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-C-A-389-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 42°
Lumen : 2490 lm
CCT : 4000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-H-3-389-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 44°/14°
Lumen : 2470 lm
CCT : 4000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-H-4-389-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 44°/14°
Lumen : 2470 lm
CCT : 4000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-H-5-389-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 44°/14°
Lumen : 2470 lm
CCT : 4000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-H-A-389-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 44°/14°
Lumen : 2470 lm
CCT : 4000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-N-3-389-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 14°/44°
Lumen : 2470 lm
CCT : 4000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-N-4-389-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 14°/44°
Lumen : 2470 lm
CCT : 4000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-N-5-389-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 14°/44°
Lumen : 2470 lm
CCT : 4000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-N-A-389-XX
Lamp : LED
Socket : N/A
Wattage : 27 W
Beam : 14°/44°
Lumen : 2470 lm
CCT : 4000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-GSH-0028-00
Honeycomb louver, LED, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-6-3-904-XX
Lamp : LED
Socket : N/A
Wattage : 33 W
Beam : 19°
Lumen : 3740 lm
CCT : 4000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-6-4-904-XX
Lamp : LED
Socket : N/A
Wattage : 33 W
Beam : 19°
Lumen : 3740 lm
CCT : 4000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-6-5-904-XX
Lamp : LED
Socket : N/A
Wattage : 33 W
Beam : 19°
Lumen : 3740 lm
CCT : 4000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-B-3-904-XX
Lamp : LED
Socket : N/A
Wattage : 33 W
Beam : 26°
Lumen : 3710 lm
CCT : 4000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-B-4-904-XX
Lamp : LED
Socket : N/A
Wattage : 33 W
Beam : 26°
Lumen : 3710 lm
CCT : 4000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-B-5-904-XX
Lamp : LED
Socket : N/A
Wattage : 33 W
Beam : 26°
Lumen : 3710 lm
CCT : 4000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-C-3-904-XX
Lamp : LED
Socket : N/A
Wattage : 33 W
Beam : 34°
Lumen : 3720 lm
CCT : 4000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-C-4-904-XX
Lamp : LED
Socket : N/A
Wattage : 33 W
Beam : 34°
Lumen : 3720 lm
CCT : 4000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-C-5-904-XX
Lamp : LED
Socket : N/A
Wattage : 33 W
Beam : 34°
Lumen : 3720 lm
CCT : 4000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-D-3-904-XX
Lamp : LED
Socket : N/A
Wattage : 33 W
Beam : 55°
Lumen : 3500 lm
CCT : 4000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-D-4-904-XX
Lamp : LED
Socket : N/A
Wattage : 33 W
Beam : 55°
Lumen : 3500 lm
CCT : 4000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-D-5-904-XX
Lamp : LED
Socket : N/A
Wattage : 33 W
Beam : 55°
Lumen : 3500 lm
CCT : 4000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-6-A-904-XX
Lamp : LED
Socket : N/A
Wattage : 34 W
Beam : 19°
Lumen : 3740 lm
CCT : 4000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-B-A-904-XX
Lamp : LED
Socket : N/A
Wattage : 34 W
Beam : 26°
Lumen : 3710 lm
CCT : 4000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-C-A-904-XX
Lamp : LED
Socket : N/A
Wattage : 34 W
Beam : 34°
Lumen : 3720 lm
CCT : 4000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-D-A-904-XX
Lamp : LED
Socket : N/A
Wattage : 34 W
Beam : 55°
Lumen : 3500 lm
CCT : 4000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GSH-0023-00
Honeycomb louver, COB, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-E-3-667-XX
Lamp : LED
Socket : N/A
Wattage : 35 W
Beam : 90°
Lumen : 4980 lm
CCT : 4000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-E-4-667-XX
Lamp : LED
Socket : N/A
Wattage : 35 W
Beam : 90°
Lumen : 4980 lm
CCT : 4000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-E-5-667-XX
Lamp : LED
Socket : N/A
Wattage : 35 W
Beam : 90°
Lumen : 4980 lm
CCT : 4000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-E-A-667-XX
Lamp : LED
Socket : N/A
Wattage : 35 W
Beam : 90°
Lumen : 4980 lm
CCT : 4000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-U-3-667-XX
Lamp : LED
Socket : N/A
Wattage : 35 W
Beam : T1
Lumen : 4550 lm
CCT : 4000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-U-4-667-XX
Lamp : LED
Socket : N/A
Wattage : 35 W
Beam : T1
Lumen : 4550 lm
CCT : 4000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-U-5-667-XX
Lamp : LED
Socket : N/A
Wattage : 35 W
Beam : T1
Lumen : 4550 lm
CCT : 4000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-U-A-667-XX
Lamp : LED
Socket : N/A
Wattage : 35 W
Beam : T1
Lumen : 4550 lm
CCT : 4000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-I-3-667-XX
Lamp : LED
Socket : N/A
Wattage : 35 W
Beam : T2
Lumen : 4710 lm
CCT : 4000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-I-4-667-XX
Lamp : LED
Socket : N/A
Wattage : 35 W
Beam : T2
Lumen : 4710 lm
CCT : 4000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-I-5-667-XX
Lamp : LED
Socket : N/A
Wattage : 35 W
Beam : T2
Lumen : 4710 lm
CCT : 4000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-I-A-667-XX
Lamp : LED
Socket : N/A
Wattage : 35 W
Beam : T2
Lumen : 4710 lm
CCT : 4000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-J-3-667-XX
Lamp : LED
Socket : N/A
Wattage : 35 W
Beam : T3
Lumen : 4250 lm
CCT : 4000 K
Controller : On-Off
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-SEN-0002-00
Photocell, On-Off, pre-assembly from factory
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-J-4-667-XX
Lamp : LED
Socket : N/A
Wattage : 35 W
Beam : T3
Lumen : 4250 lm
CCT : 4000 K
Controller : DIM 1-10V
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-J-5-667-XX
Lamp : LED
Socket : N/A
Wattage : 35 W
Beam : T3
Lumen : 4250 lm
CCT : 4000 K
Controller : DALI
Specsheet :
Accessories
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
Ordering Code : 2040-J-A-667-XX
Lamp : LED
Socket : N/A
Wattage : 35 W
Beam : T3
Lumen : 4250 lm
CCT : 4000 K
Controller : CASAMBI
Specsheet :
Accessories
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CLP-0001-XX
Pole clamp, pole diameter 114mm
AUN-ACB-0009-00
Anchor bolt kit, pole diameter 114 and 114/140, galvanized steel pole
AUN-ACB-0008-00
Anchor bolt kit, pole diameter 102mm and 151x102mm, galvanized steel pole
AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-GHS-0033-XX
Glare shield cap
AUN-POL-0030-XX
Cylindrical aluminum pole, diameter 140mm, H= 410mm, use with projector
AUN-MOT-0001-XX
Pole mount adaptor, spigot diameter 76mm for Mini SPACE
AUN-MOT-0002-XX
Wall or pole mounting arm, pole diameter 114mm for Mini SPACE
AUN-MOT-0003-XX
Mounting base, rotateable, 1-10V or DALI for Mini SPACE
AUN-MOT-0004-XX
Wall or pole mounting arm, pole diameter 114mm, double sided for Mini SPACE
ALUMINUM-POLE-MINI-SPACE
Please contact Sales Representative
STEEL-POLE-MINI-SPACE
Please contact Sales Representative
