LuxBeat Underwater 1000

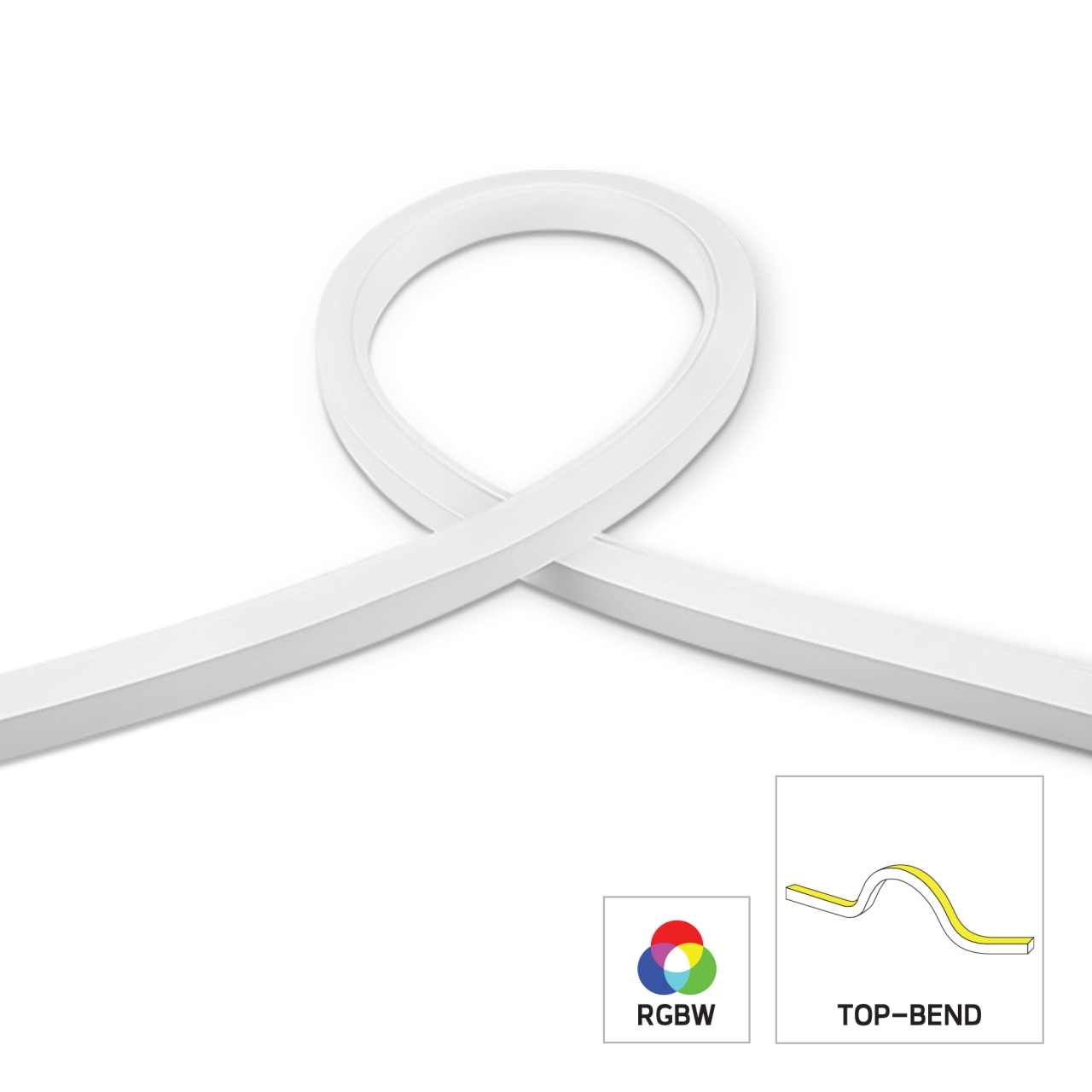

LuxBeat and LuxBeat XL are a range of miniature sized linear accent luminaires with flexible and fixed application. The patented optical system emits homogenous light regardless of the viewing direction. LuxBeat is the designer’s choice for unconstraint creative light installations. High contrasting illumination of building elements is easily possible with the tiny luminaire dimensions and state of the art LED performance. The luminaire is top bendable and can be shortened on-site. The use of optional stainless steel mounting clips eliminates the time-consuming pretreatment of the installation surface. LuxBeat XL offers a robust aluminum housing that contains a wiring channel for the electrical connection. Bottom mounted in and out connector’s assure shadow free easy installation. LuxBeat XL is available as fixed and tiltable surface mount luminaire, recessed wall and ceiling light, pendant light and inground uplighter. Shorter luminaire lengths are available upon request. LuxBeat XL RGBW requires the use of a 4 channel CV RGBW controller, contact the Unilamp sales team for details.


Ordering Code : 8115-0-2-269-00
Lamp : LED Socket : N/A Wattage : 14 W Beam : 120° Lumen : 780 lm CCT : 3000 K Controller : Remote Specsheet :
LuxBeat Underwater 1000
LuxBeat Underwater 1000

Accessories

AUN-DRG-0011-00
LED constant voltage driver, 24VDC, 150W
AUN-DRG-0024-00
LED constant voltage driver, 24VDC, 200W
AUN-DRG-0027-00
LED constant voltage driver, 24VDC, 72W
AUN-CAB-0041-00
Feed in cable 2x0.75sqmm, L= 1000mm, with M12 IP68 connector
AUN-BRK-0008-00
Mounting clip, set of 2pcs, including mounting hardware
AUN-CAB-0044-00
Extended pre-wired cable 2x1sqmm, L=6000mm, with UniBlock anti-humidity kit, pre-assembly from factory
AUN-CAB-0043-00
Extended pre-wired cable 2x1sqmm, L=3000mm, with UniBlock anti-humidity kit, pre-assembly from factory
