LuxBeat Underwater 500

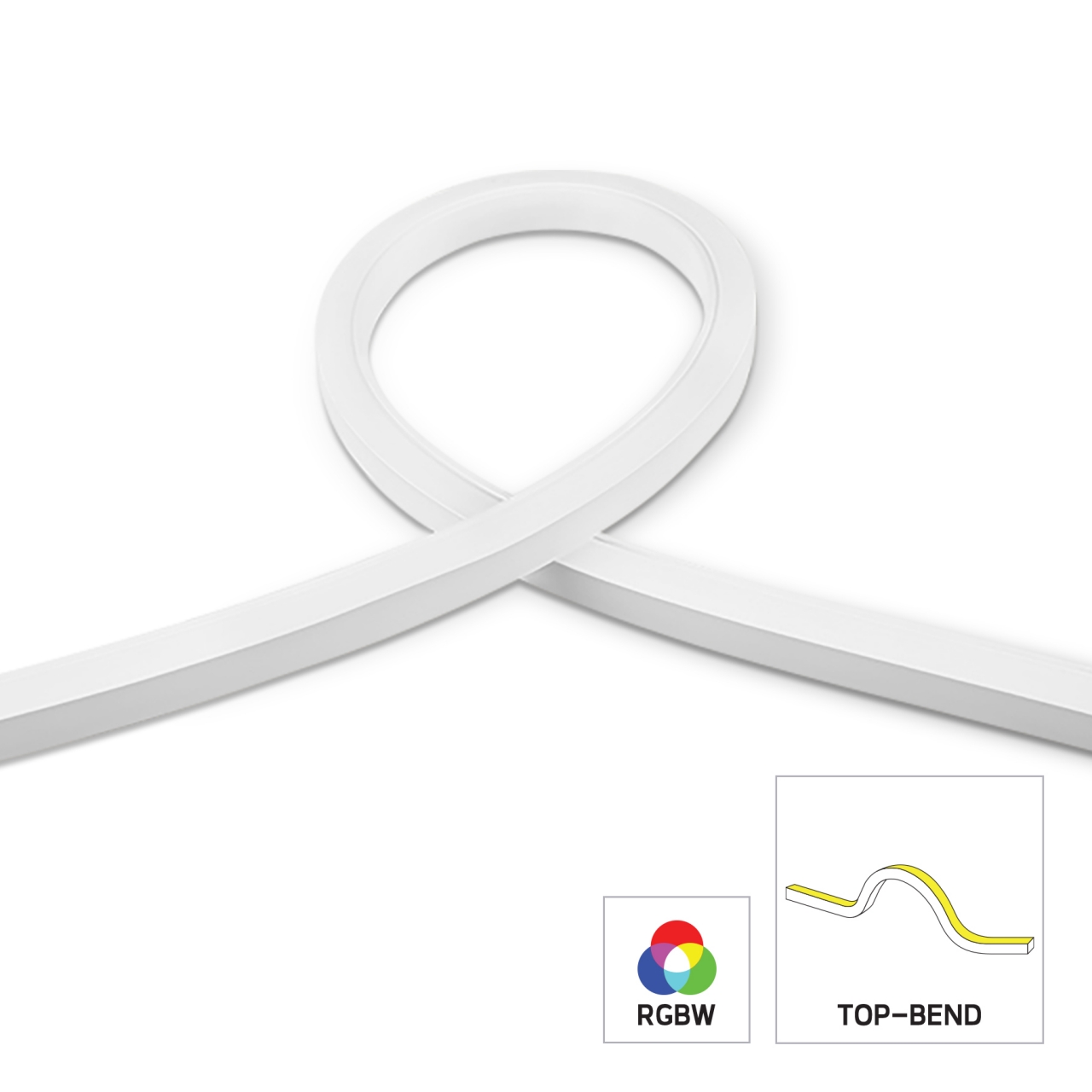

LuxBeat and LuxBeat XL are a range of miniature sized linear accent luminaires with flexible and fixed application. The patented optical system emits homogenous light regardless of the viewing direction. LuxBeat is the designer’s choice for unconstraint creative light installations. High contrasting illumination of building elements is easily possible with the tiny luminaire dimensions and state of the art LED performance. The luminaire is top bendable and can be shortened on-site. The use of optional stainless steel mounting clips eliminates the time-consuming pretreatment of the installation surface. LuxBeat XL offers a robust aluminum housing that contains a wiring channel for the electrical connection. Bottom mounted in and out connector’s assure shadow free easy installation. LuxBeat XL is available as fixed and tiltable surface mount luminaire, recessed wall and ceiling light, pendant light and inground uplighter. Shorter luminaire lengths are available upon request. LuxBeat XL RGBW requires the use of a 4 channel CV RGBW controller, contact the Unilamp sales team for details.


 New Ordering Code : 8114-0-2-269-00
Lamp : LED Socket : N/A Wattage : 7 W Beam : 120° Lumen : 390 lm CCT : 3000 K Controller : Remote Specsheet :
LuxBeat Underwater 500
LuxBeat Underwater 500

Accessories

AUN-DRG-0011-00
LED Constant Voltage Driver 24Vdc 150W.
AUN-DRG-0024-00
LED Constant Voltage Driver 24Vdc 200W.
AUN-DRG-0027-00
LED Constant Voltage Driver 24Vdc 72W.
AUN-CAB-0041-00
Input Cable L=1500mm One-Side with M12 IP68 Female Connector.
AUN-BRK-0008-00
Mounting clip (2pcs per set) made from 316 stainless steel including mounting hardware.
AUN-CAB-0044-00
Extended pre-wired cable 2x1sqmm, L=6000mm, with UniBlock anti-humidity kit, pre-assembly from factory
AUN-CAB-0043-00
Extended pre-wired cable 2x1sqmm, L=3000mm, with UniBlock anti-humidity kit, pre-assembly from factory
