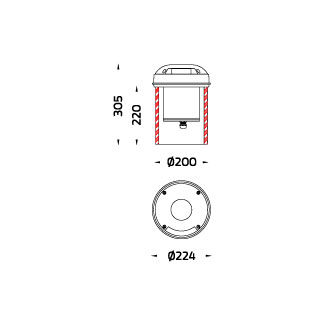

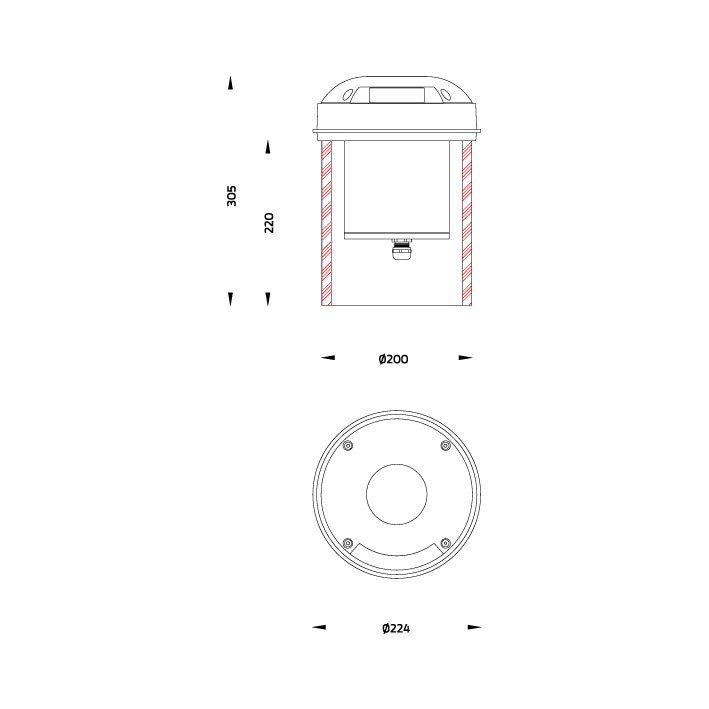

AYERS 1x90

AYERS ground washer luminaires provide the users a low glare multi direction light distribution. The luminaire housing is made of a robust high strength aluminum and includes a GFR polymer recessed housing. The high quality optical mirrored reflector produces a high lumen output in a low silhouette fixture. Reflector designed and optimized by Photopia engineering software plus a COB LED from renowned manufacturers allow AYERS a high intensity sharp light output. The family is available in 2 sizes in one- opening, 2-opening and 4-opening. It is a perfect choice to illuminate ground surfaces. AYERS is supplied with a post-cured durable silicone gasket and pre-wired cable for outdoor application.

Clear All
Ordering Code : 9104-0-3-505-XX
Lamp : LED Socket : N/A Wattage : 19 W Beam : N/A Lumen : 100 lm CCT : 2700 K Controller : On-Off Specsheet :
AYERS 1x90
AYERS 1x90
AYERS 1x90
AYERS 1x90

Technical Data Download

Accessories

AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-CON-0003-00
IP68 Connector, cable diameter 8-10mm, gel-filled for through wiring
Ordering Code : 9104-0-4-505-XX
Lamp : LED Socket : N/A Wattage : 19 W Beam : N/A Lumen : 100 lm CCT : 2700 K Controller : DIM 1-10V Specsheet :
AYERS 1x90
AYERS 1x90
AYERS 1x90
AYERS 1x90

Technical Data Download

Accessories

AUN-CON-0008-00
IP68 Connector, cable diameter 8-10mm, gel-filled for through wiring , 1-10V or DALI
Ordering Code : 9104-0-5-505-XX
Lamp : LED Socket : N/A Wattage : 19 W Beam : N/A Lumen : 100 lm CCT : 2700 K Controller : DALI Specsheet :
AYERS 1x90
AYERS 1x90
AYERS 1x90
AYERS 1x90

Technical Data Download

Accessories

AUN-CON-0008-00
IP68 Connector, cable diameter 8-10mm, gel-filled for through wiring , 1-10V or DALI
Ordering Code : 9104-0-A-505-XX
Lamp : LED Socket : N/A Wattage : 19 W Beam : N/A Lumen : 100 lm CCT : 2700 K Controller : CASAMBI Specsheet :
AYERS 1x90
AYERS 1x90
AYERS 1x90
AYERS 1x90

Technical Data Download

Accessories

AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-CON-0003-00
IP68 Connector, cable diameter 8-10mm, gel-filled for through wiring
Ordering Code : 9104-0-3-506-XX
Lamp : LED Socket : N/A Wattage : 26 W Beam : N/A Lumen : 130 lm CCT : 2700 K Controller : On-Off Specsheet :
AYERS 1x90
AYERS 1x90
AYERS 1x90
AYERS 1x90

Technical Data Download

Accessories

AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-CON-0003-00
IP68 Connector, cable diameter 8-10mm, gel-filled for through wiring
Ordering Code : 9104-0-4-506-XX
Lamp : LED Socket : N/A Wattage : 26 W Beam : N/A Lumen : 130 lm CCT : 2700 K Controller : DIM 1-10V Specsheet :
AYERS 1x90
AYERS 1x90
AYERS 1x90
AYERS 1x90

Technical Data Download

Accessories

AUN-CON-0008-00
IP68 Connector, cable diameter 8-10mm, gel-filled for through wiring , 1-10V or DALI
Ordering Code : 9104-0-5-506-XX
Lamp : LED Socket : N/A Wattage : 26 W Beam : N/A Lumen : 130 lm CCT : 2700 K Controller : DALI Specsheet :
AYERS 1x90
AYERS 1x90
AYERS 1x90
AYERS 1x90

Technical Data Download

Accessories

AUN-CON-0008-00
IP68 Connector, cable diameter 8-10mm, gel-filled for through wiring , 1-10V or DALI
Ordering Code : 9104-0-3-902-XX
Lamp : LED Socket : N/A Wattage : 19 W Beam : N/A Lumen : 100 lm CCT : 3000 K Controller : On-Off Specsheet :
AYERS 1x90
AYERS 1x90
AYERS 1x90
AYERS 1x90

Technical Data Download

Accessories

AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-CON-0003-00
IP68 Connector, cable diameter 8-10mm, gel-filled for through wiring
Ordering Code : 9104-0-4-902-XX
Lamp : LED Socket : N/A Wattage : 19 W Beam : N/A Lumen : 100 lm CCT : 3000 K Controller : DIM 1-10V Specsheet :
AYERS 1x90
AYERS 1x90
AYERS 1x90
AYERS 1x90

Technical Data Download

Accessories

AUN-CON-0008-00
IP68 Connector, cable diameter 8-10mm, gel-filled for through wiring , 1-10V or DALI
Ordering Code : 9104-0-5-902-XX
Lamp : LED Socket : N/A Wattage : 19 W Beam : N/A Lumen : 100 lm CCT : 3000 K Controller : DALI Specsheet :
AYERS 1x90
AYERS 1x90
AYERS 1x90
AYERS 1x90

Technical Data Download

Accessories

AUN-CON-0008-00
IP68 Connector, cable diameter 8-10mm, gel-filled for through wiring , 1-10V or DALI
Ordering Code : 9104-0-A-902-XX
Lamp : LED Socket : N/A Wattage : 19 W Beam : N/A Lumen : 100 lm CCT : 3000 K Controller : CASAMBI Specsheet :
AYERS 1x90
AYERS 1x90
AYERS 1x90
AYERS 1x90

Technical Data Download

Accessories

AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-CON-0003-00
IP68 Connector, cable diameter 8-10mm, gel-filled for through wiring
Ordering Code : 9104-0-3-887-XX
Lamp : LED Socket : N/A Wattage : 26 W Beam : N/A Lumen : 140 lm CCT : 3000 K Controller : On-Off Specsheet :
AYERS 1x90
AYERS 1x90
AYERS 1x90
AYERS 1x90

Technical Data Download

Accessories

AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-CON-0003-00
IP68 Connector, cable diameter 8-10mm, gel-filled for through wiring
Ordering Code : 9104-0-4-887-XX
Lamp : LED Socket : N/A Wattage : 26 W Beam : N/A Lumen : 140 lm CCT : 3000 K Controller : DIM 1-10V Specsheet :
AYERS 1x90
AYERS 1x90
AYERS 1x90
AYERS 1x90

Technical Data Download

Accessories

AUN-CON-0008-00
IP68 Connector, cable diameter 8-10mm, gel-filled for through wiring , 1-10V or DALI
Ordering Code : 9104-0-5-887-XX
Lamp : LED Socket : N/A Wattage : 26 W Beam : N/A Lumen : 140 lm CCT : 3000 K Controller : DALI Specsheet :
AYERS 1x90
AYERS 1x90
AYERS 1x90
AYERS 1x90

Technical Data Download

Accessories

AUN-CON-0008-00
IP68 Connector, cable diameter 8-10mm, gel-filled for through wiring , 1-10V or DALI
Ordering Code : 9104-0-3-905-XX
Lamp : LED Socket : N/A Wattage : 19 W Beam : N/A Lumen : 100 lm CCT : 4000 K Controller : On-Off Specsheet :
AYERS 1x90
AYERS 1x90
AYERS 1x90
AYERS 1x90

Technical Data Download

Accessories

AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-CON-0003-00
IP68 Connector, cable diameter 8-10mm, gel-filled for through wiring
Ordering Code : 9104-0-4-905-XX
Lamp : LED Socket : N/A Wattage : 19 W Beam : N/A Lumen : 100 lm CCT : 4000 K Controller : DIM 1-10V Specsheet :
AYERS 1x90
AYERS 1x90
AYERS 1x90
AYERS 1x90

Technical Data Download

Accessories

AUN-CON-0008-00
IP68 Connector, cable diameter 8-10mm, gel-filled for through wiring , 1-10V or DALI
Ordering Code : 9104-0-5-905-XX
Lamp : LED Socket : N/A Wattage : 19 W Beam : N/A Lumen : 100 lm CCT : 4000 K Controller : DALI Specsheet :
AYERS 1x90
AYERS 1x90
AYERS 1x90
AYERS 1x90

Technical Data Download

Accessories

AUN-CON-0008-00
IP68 Connector, cable diameter 8-10mm, gel-filled for through wiring , 1-10V or DALI
Ordering Code : 9104-0-A-905-XX
Lamp : LED Socket : N/A Wattage : 19 W Beam : N/A Lumen : 100 lm CCT : 4000 K Controller : CASAMBI Specsheet :
AYERS 1x90
AYERS 1x90
AYERS 1x90
AYERS 1x90

Technical Data Download

Accessories

AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-CON-0003-00
IP68 Connector, cable diameter 8-10mm, gel-filled for through wiring
Ordering Code : 9104-0-3-891-XX
Lamp : LED Socket : N/A Wattage : 26 W Beam : N/A Lumen : 140 lm CCT : 4000 K Controller : On-Off Specsheet :
AYERS 1x90
AYERS 1x90
AYERS 1x90
AYERS 1x90

Technical Data Download

Accessories

AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-CON-0003-00
IP68 Connector, cable diameter 8-10mm, gel-filled for through wiring
Ordering Code : 9104-0-4-891-XX
Lamp : LED Socket : N/A Wattage : 26 W Beam : N/A Lumen : 140 lm CCT : 4000 K Controller : DIM 1-10V Specsheet :
AYERS 1x90
AYERS 1x90
AYERS 1x90
AYERS 1x90

Technical Data Download

Accessories

AUN-CON-0008-00
IP68 Connector, cable diameter 8-10mm, gel-filled for through wiring , 1-10V or DALI
Ordering Code : 9104-0-5-891-XX
Lamp : LED Socket : N/A Wattage : 26 W Beam : N/A Lumen : 140 lm CCT : 4000 K Controller : DALI Specsheet :
AYERS 1x90
AYERS 1x90
AYERS 1x90
AYERS 1x90

Technical Data Download

Accessories

AUN-CON-0008-00
IP68 Connector, cable diameter 8-10mm, gel-filled for through wiring , 1-10V or DALI
