Mini AYERS 1x90 - CV

AYERS is a family of ground washer luminaires designed to deliver low-glare, multi-directional illumination across outdoor environments. Available in three sizes—AYERS, Mini AYERS, and the new Micro AYERS—this range offers flexibility for a variety of lighting applications, from large open spaces to compact architectural details. The main and mini versions feature high-strength aluminum housings paired with GFR polymer recessed components for long-term durability in harsh conditions. Their high-efficiency COB LED modules and precision optical reflectors ensure powerful lumen output with sharp light distribution. Micro AYERS, the most compact member of the family, is crafted from corrosion-resistant stainless steel and designed with a robust recessed housing, making it an ideal choice for discreet outdoor illumination. It preserves the refined aesthetics and dependable performance that characterize the AYERS range. Each fixture is sealed with a post-cured silicone gasket for superior watertight protection and comes pre-wired for easy installation. With its blend of design, performance, and robust construction, the AYERS family is a dependable choice for lighting pathways, plazas, and architectural surfaces.

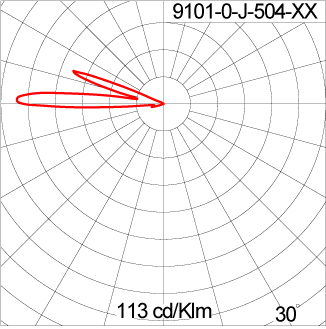

Ordering Code : 9101-0-2-504-XX
Lamp : LED Socket : N/A Wattage : 12 W Beam : N/A Lumen : 75 lm CCT : 2700 K Controller : Remote Specsheet :
Mini AYERS 1x90 - CV
Mini AYERS 1x90 - CV

Accessories

AUN-DRG-0011-00
LED constant voltage driver, 24VDC, 150W
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-CON-0003-00
IP68 Connector, cable diameter 8-10mm, gel-filled for through wiring
AUN-DRG-0024-00
LED constant voltage driver, 24VDC, 200W
AUN-DRG-0027-00
LED constant voltage driver, 24VDC, 72W
AUN-CAB-0040-00
Cable H07RN-F 2x1sqmm, L= 2000mm
AUN-DRG-0118-00
LED constant voltage driver, 24VDC, 30W
AUN-DRG-0100-00
LED constant voltage driver, 24VDC, 60W, DALI
AUN-DRG-0101-00
LED constant voltage driver, 24VDC, 120W, DALI

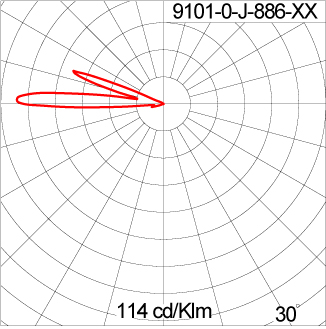

Ordering Code : 9101-0-2-886-XX
Lamp : LED Socket : N/A Wattage : 12 W Beam : N/A Lumen : 80 lm CCT : 3000 K Controller : Remote Specsheet :
Mini AYERS 1x90 - CV
Mini AYERS 1x90 - CV

Accessories

AUN-DRG-0011-00
LED constant voltage driver, 24VDC, 150W
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-CON-0003-00
IP68 Connector, cable diameter 8-10mm, gel-filled for through wiring
AUN-DRG-0024-00
LED constant voltage driver, 24VDC, 200W
AUN-DRG-0027-00
LED constant voltage driver, 24VDC, 72W
AUN-CAB-0040-00
Cable H07RN-F 2x1sqmm, L= 2000mm
AUN-DRG-0118-00
LED constant voltage driver, 24VDC, 30W
AUN-DRG-0100-00
LED constant voltage driver, 24VDC, 60W, DALI
AUN-DRG-0101-00
LED constant voltage driver, 24VDC, 120W, DALI
Ordering Code : 9101-0-2-890-XX
Lamp : LED Socket : N/A Wattage : 12 W Beam : N/A Lumen : 82 lm CCT : 4000 K Controller : Remote Specsheet :
Mini AYERS 1x90 - CV
Mini AYERS 1x90 - CV

Accessories

AUN-DRG-0011-00
LED constant voltage driver, 24VDC, 150W
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-CON-0003-00
IP68 Connector, cable diameter 8-10mm, gel-filled for through wiring
AUN-DRG-0024-00
LED constant voltage driver, 24VDC, 200W
AUN-DRG-0027-00
LED constant voltage driver, 24VDC, 72W
AUN-CAB-0040-00
Cable H07RN-F 2x1sqmm, L= 2000mm
AUN-DRG-0118-00
LED constant voltage driver, 24VDC, 30W
AUN-DRG-0100-00
LED constant voltage driver, 24VDC, 60W, DALI
AUN-DRG-0101-00
LED constant voltage driver, 24VDC, 120W, DALI
