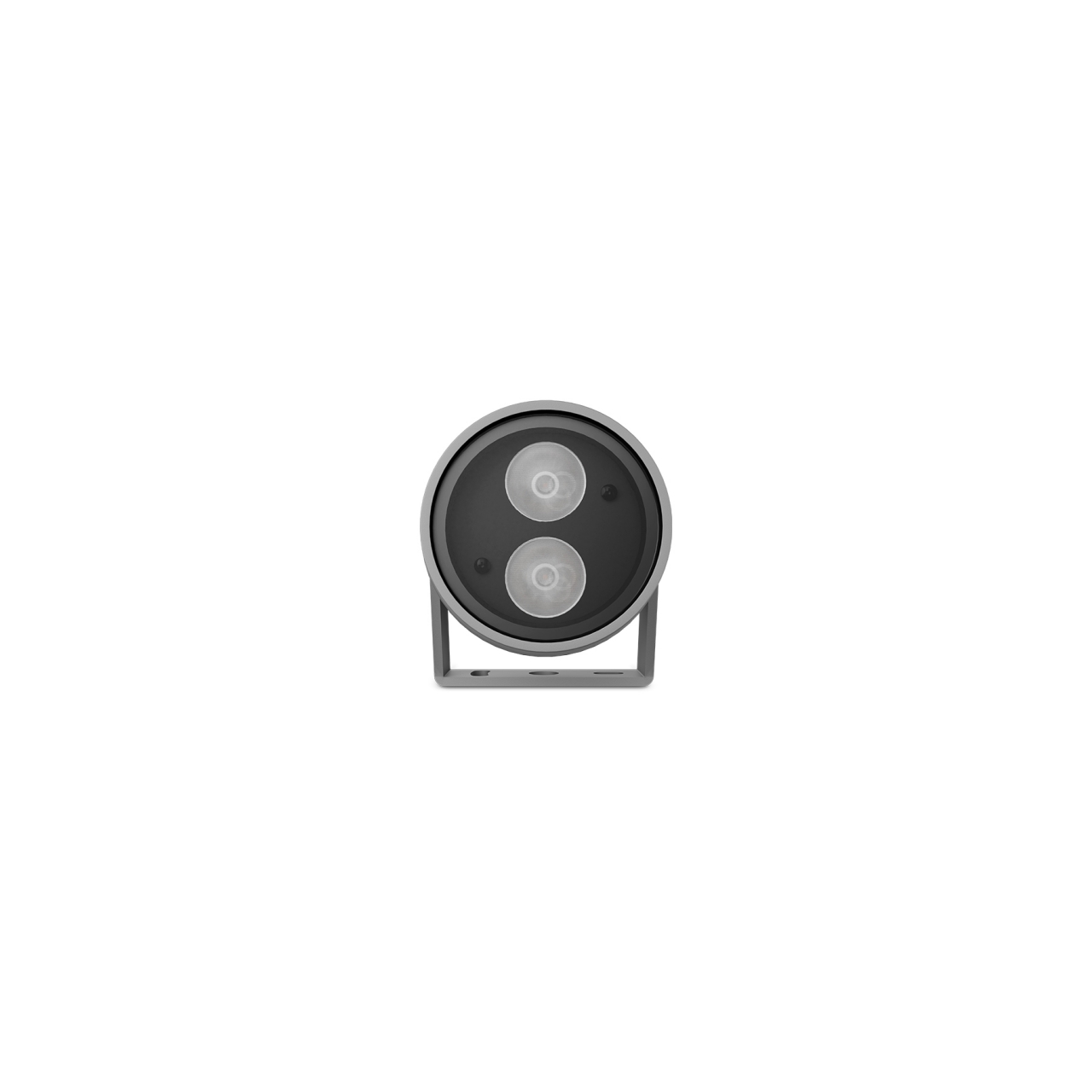

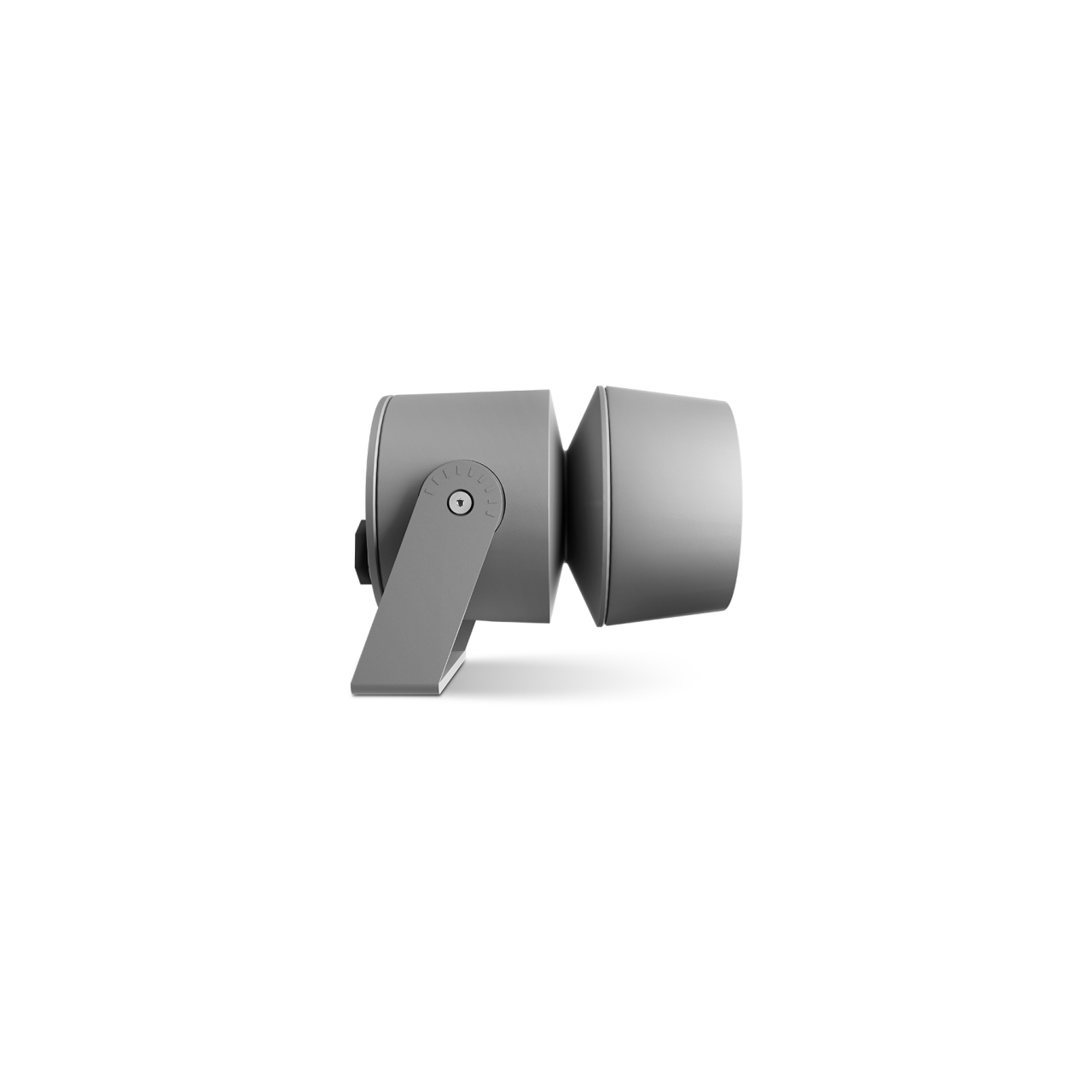

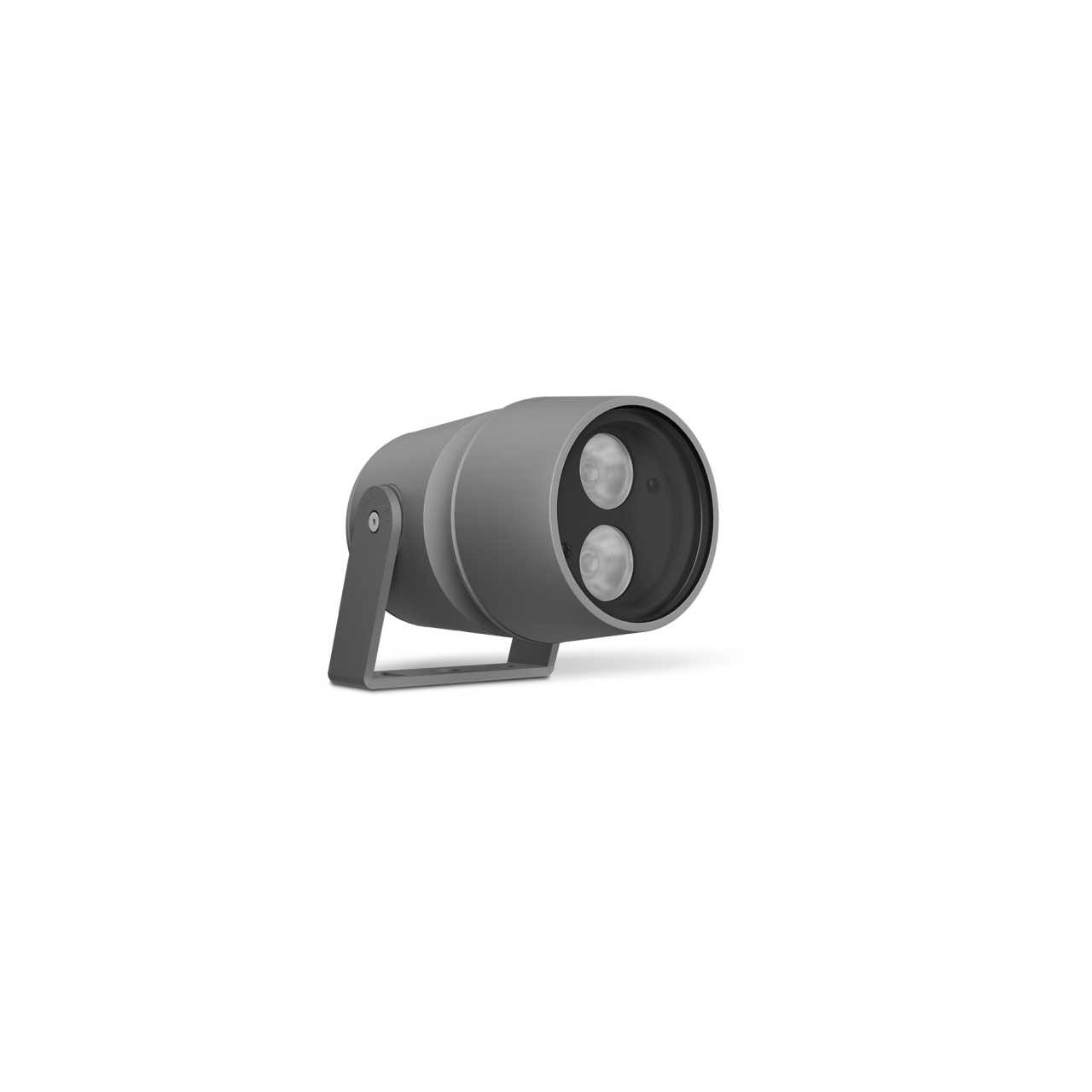

Mini CETUS - U Bracket

CETUS is the next generation circular shaped projector designed for strict energy efficiency requirements as well as modular and versatile use cases. The control gear lifetime is extended by thermal isolation from the light source. The optional built in surge protection device reinforces CETUS ability to withstand toughest ambient conditions. CETUS is equipped with the Vent to rapidly equalize pressure potential in case of rapidly changing ambient conditions. Ultra-tough silica-boron trioxide glass is used for superior chemical resistance and class leading IK09 impact resistance. The Unilamp modular solutions system allows adoption of CETUS to any type of installation requirement even years after delivery. Circular economy assessment according to CIBSE TM66 is available on request.

Clear All

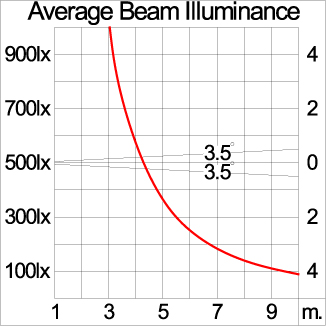

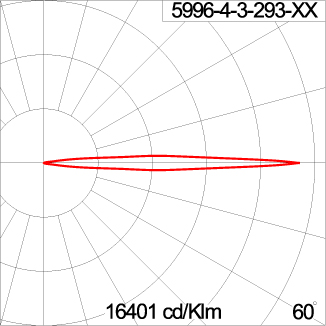

 New Ordering Code : 5996-4-3-293-XX
Lamp : SMD-H LED Socket : N/A Wattage : 6 W Beam : 7° Lumen : 350 lm CCT : 3000 K Controller : On-Off Specsheet :
Mini CETUS - U Bracket
Mini CETUS - U Bracket
Mini CETUS - U Bracket
Mini CETUS - U Bracket

Technical Data Download

Accessories

AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-GSH-0057-XX
Glare shield cap, pre-assembly from factory

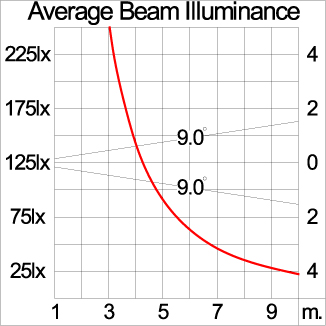

 New Ordering Code : 5996-A-3-886-XX
Lamp : COB LED Socket : N/A Wattage : 8.8 W Beam : 18° Lumen : 1120 lm CCT : 3000 K Controller : On-Off Specsheet :
Mini CETUS - U Bracket
Mini CETUS - U Bracket
Mini CETUS - U Bracket
Mini CETUS - U Bracket

Technical Data Download

Accessories

AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-GSH-0057-XX
Glare shield cap, pre-assembly from factory
AUN-GSH-0058-XX
Snoot, pre-assembly from factory
AUN-GSH-0043-00
Honeycomb louver, COB, pre-assembly from factory

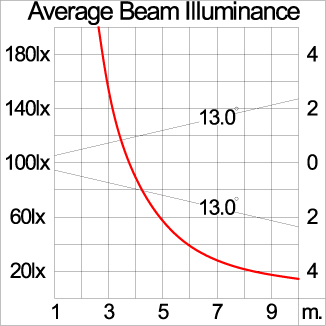

 New Ordering Code : 5996-B-3-886-XX
Lamp : COB LED Socket : N/A Wattage : 8.8 W Beam : 26° Lumen : 1164 lm CCT : 3000 K Controller : On-Off Specsheet :
Mini CETUS - U Bracket
Mini CETUS - U Bracket
Mini CETUS - U Bracket
Mini CETUS - U Bracket

Technical Data Download

Accessories

AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-GSH-0057-XX
Glare shield cap, pre-assembly from factory
AUN-GSH-0058-XX
Snoot, pre-assembly from factory
AUN-GSH-0043-00
Honeycomb louver, COB, pre-assembly from factory

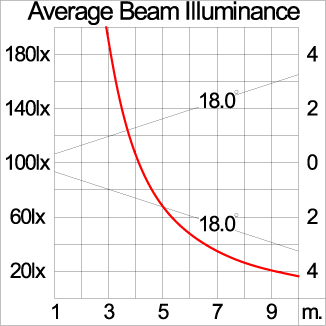

 New Ordering Code : 5996-C-3-886-XX
Lamp : COB LED Socket : N/A Wattage : 8.8 W Beam : 36° Lumen : 1090 lm CCT : 3000 K Controller : On-Off Specsheet :
Mini CETUS - U Bracket
Mini CETUS - U Bracket
Mini CETUS - U Bracket
Mini CETUS - U Bracket

Technical Data Download

Accessories

AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-GSH-0057-XX
Glare shield cap, pre-assembly from factory
AUN-GSH-0058-XX
Snoot, pre-assembly from factory
AUN-GSH-0043-00
Honeycomb louver, COB, pre-assembly from factory

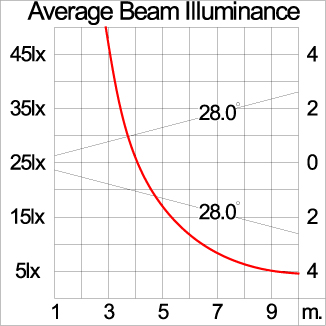

 New Ordering Code : 5996-D-3-886-XX
Lamp : COB LED Socket : N/A Wattage : 8.8 W Beam : 56° Lumen : 1260 lm CCT : 3000 K Controller : On-Off Specsheet :
Mini CETUS - U Bracket
Mini CETUS - U Bracket
Mini CETUS - U Bracket
Mini CETUS - U Bracket

Technical Data Download

Accessories

AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-GSH-0057-XX
Glare shield cap, pre-assembly from factory
AUN-GSH-0058-XX
Snoot, pre-assembly from factory
AUN-GSH-0043-00
Honeycomb louver, COB, pre-assembly from factory

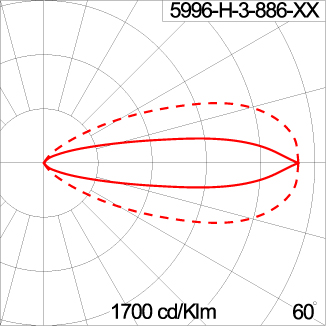

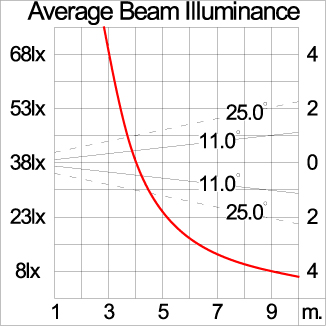

 New Ordering Code : 5996-H-3-886-XX
Lamp : COB LED Socket : N/A Wattage : 8.8 W Beam : 50°/22° Lumen : 1110 lm CCT : 3000 K Controller : On-Off Specsheet :
Mini CETUS - U Bracket
Mini CETUS - U Bracket
Mini CETUS - U Bracket
Mini CETUS - U Bracket

Technical Data Download

Accessories

AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-GSH-0057-XX
Glare shield cap, pre-assembly from factory
AUN-GSH-0058-XX
Snoot, pre-assembly from factory
AUN-GSH-0043-00
Honeycomb louver, COB, pre-assembly from factory

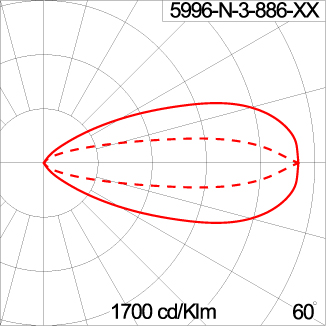

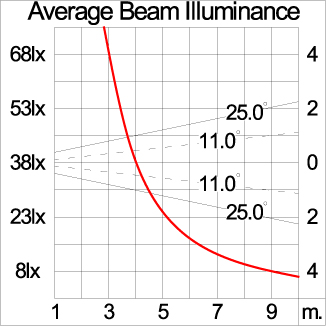

 New Ordering Code : 5996-N-3-886-XX
Lamp : COB LED Socket : N/A Wattage : 8.8 W Beam : 22°/50 Lumen : 1110 lm CCT : 3000 K Controller : On-Off Specsheet :
Mini CETUS - U Bracket
Mini CETUS - U Bracket
Mini CETUS - U Bracket
Mini CETUS - U Bracket

Technical Data Download

Accessories

AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-GSH-0057-XX
Glare shield cap, pre-assembly from factory
AUN-GSH-0058-XX
Snoot, pre-assembly from factory
AUN-GSH-0043-00
Honeycomb louver, COB, pre-assembly from factory

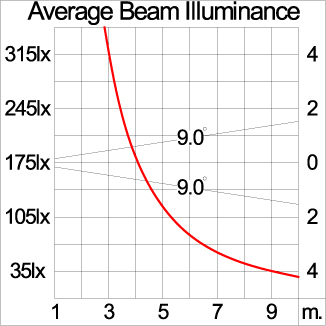

 New Ordering Code : 5996-A-3-901-XX
Lamp : COB LED Socket : N/A Wattage : 13 W Beam : 18° Lumen : 1500 lm CCT : 3000 K Controller : On-Off Specsheet :
Mini CETUS - U Bracket
Mini CETUS - U Bracket
Mini CETUS - U Bracket
Mini CETUS - U Bracket

Technical Data Download

Accessories

AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-GSH-0057-XX
Glare shield cap, pre-assembly from factory
AUN-GSH-0058-XX
Snoot, pre-assembly from factory
AUN-GSH-0043-00
Honeycomb louver, COB, pre-assembly from factory

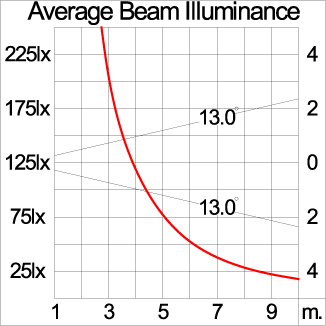

 New Ordering Code : 5996-B-3-901-XX
Lamp : COB LED Socket : N/A Wattage : 13 W Beam : 26° Lumen : 1550 lm CCT : 3000 K Controller : On-Off Specsheet :
Mini CETUS - U Bracket
Mini CETUS - U Bracket
Mini CETUS - U Bracket
Mini CETUS - U Bracket

Technical Data Download

Accessories

AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-GSH-0057-XX
Glare shield cap, pre-assembly from factory
AUN-GSH-0058-XX
Snoot, pre-assembly from factory
AUN-GSH-0043-00
Honeycomb louver, COB, pre-assembly from factory

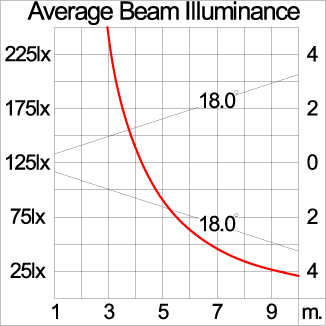

 New Ordering Code : 5996-C-3-901-XX
Lamp : COB LED Socket : N/A Wattage : 13 W Beam : 36° Lumen : 1460 lm CCT : 3000 K Controller : On-Off Specsheet :
Mini CETUS - U Bracket
Mini CETUS - U Bracket
Mini CETUS - U Bracket
Mini CETUS - U Bracket

Technical Data Download

Accessories

AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-GSH-0057-XX
Glare shield cap, pre-assembly from factory
AUN-GSH-0058-XX
Snoot, pre-assembly from factory
AUN-GSH-0043-00
Honeycomb louver, COB, pre-assembly from factory
 New Ordering Code : 5996-D-3-901-XX
Lamp : COB LED Socket : N/A Wattage : 13 W Beam : 56° Lumen : 1680 lm CCT : 3000 K Controller : On-Off Specsheet :
Mini CETUS - U Bracket
Mini CETUS - U Bracket
Mini CETUS - U Bracket
Mini CETUS - U Bracket

Technical Data Download

Accessories

AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-GSH-0057-XX
Glare shield cap, pre-assembly from factory
AUN-GSH-0058-XX
Snoot, pre-assembly from factory
AUN-GSH-0043-00
Honeycomb louver, COB, pre-assembly from factory

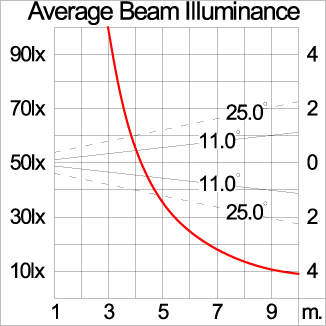

 New Ordering Code : 5996-H-3-901-XX
Lamp : COB LED Socket : N/A Wattage : 13 W Beam : 50°/22° Lumen : 1480 lm CCT : 3000 K Controller : On-Off Specsheet :
Mini CETUS - U Bracket
Mini CETUS - U Bracket
Mini CETUS - U Bracket
Mini CETUS - U Bracket

Technical Data Download

Accessories

AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-GSH-0057-XX
Glare shield cap, pre-assembly from factory
AUN-GSH-0058-XX
Snoot, pre-assembly from factory
AUN-GSH-0043-00
Honeycomb louver, COB, pre-assembly from factory
 New Ordering Code : 5996-N-3-901-XX
Lamp : COB LED Socket : N/A Wattage : 13 W Beam : 22°/50 Lumen : 1480 lm CCT : 3000 K Controller : On-Off Specsheet :
Mini CETUS - U Bracket
Mini CETUS - U Bracket
Mini CETUS - U Bracket
Mini CETUS - U Bracket

Technical Data Download

Accessories

AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-GSH-0057-XX
Glare shield cap, pre-assembly from factory
AUN-GSH-0058-XX
Snoot, pre-assembly from factory
AUN-GSH-0043-00
Honeycomb louver, COB, pre-assembly from factory

Similar Products

Medium CETUS - Without Base
Medium CETUS - U Bracket
Mega CETUS - Without Base
Mega CETUS - U Bracket
Mini CETUS - Without Base
