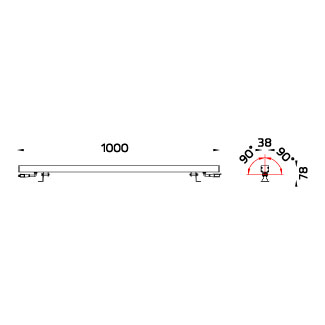

ALESSA/1 1000 - CV

Alessa is a small sized low voltage supplied range of LED wall washer. Installation on site is simplified by using splash proof in and out connection cables. The adjustable mounting brackets allow fine tuning of the light direction. The small overall dimension allows unobtrusive installation on many different surfaces including niches. The RGBW version is controllable utilizing DMX-RDM and the monochromatic version is optionally controllable with a DALI system. The housing is made of high-corrosion resistant aluminum with low copper content. High ambient temperature rating and high resistance against water ingress make Alessa useable in many countries and applications.

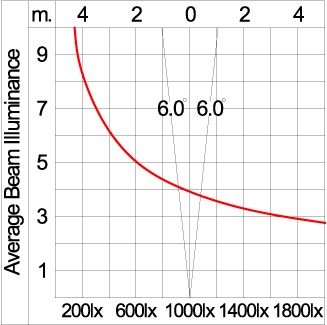

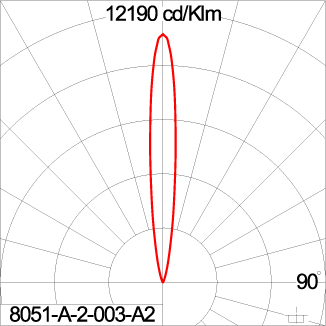

 New Ordering Code : 8051-A-2-003-A2
Lamp : LED Socket : N/A Wattage : 24 W Beam : 12° Lumen : 2640 lm CCT : 3000 K Controller : Remote Specsheet :
ALESSA/1 1000 - CV
ALESSA/1 1000 - CV

Accessories

AUN-DRG-0011-00
LED constant voltage driver, 24VDC, 150W
AUN-DRG-0022-00
LED constant voltage driver, 24VDC, 60W, DALI
AUN-DRG-0023-00
LED constant voltage driver, 24VDC, 120W, DALI
AUN-DRG-0024-00
LED constant voltage driver, 24VDC, 200W
AUN-DRG-0027-00
LED constant voltage driver, 24VDC, 72W
ATR-CON-0005-00
Connector end cap

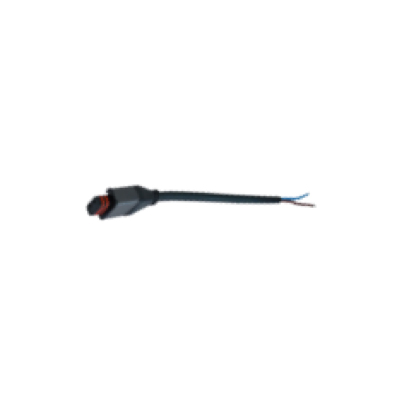

ATR-CAB-0007-00
Feed in cable 2x1sqmm, L= 1000mm, for monochromatic luminaire
ATR-CAB-0008-00
Jumper cable 2x1sqmm, L= 1000mm, for monochromatic luminaire , for longer distance between two luminaires

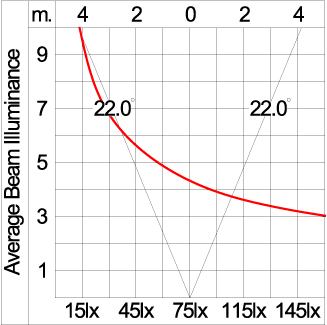

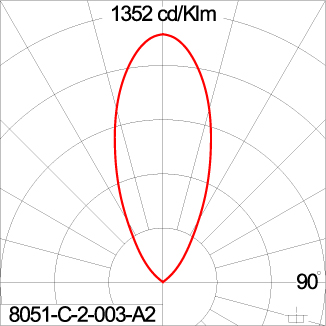

 New Ordering Code : 8051-C-2-003-A2
Lamp : LED Socket : N/A Wattage : 24 W Beam : 44° Lumen : 2280 lm CCT : 3000 K Controller : Remote Specsheet :
ALESSA/1 1000 - CV
ALESSA/1 1000 - CV

Accessories

AUN-DRG-0011-00
LED constant voltage driver, 24VDC, 150W
AUN-DRG-0022-00
LED constant voltage driver, 24VDC, 60W, DALI

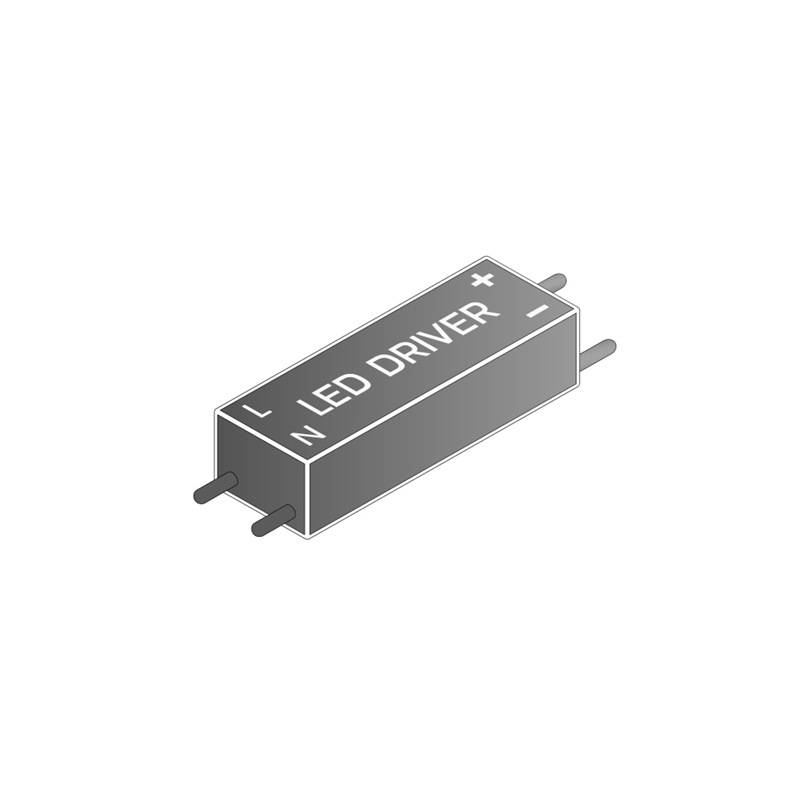

AUN-DRG-0023-00
LED constant voltage driver, 24VDC, 120W, DALI
AUN-DRG-0024-00
LED constant voltage driver, 24VDC, 200W
AUN-DRG-0027-00
LED constant voltage driver, 24VDC, 72W
ATR-CON-0005-00
Connector end cap
ATR-CAB-0007-00
Feed in cable 2x1sqmm, L= 1000mm, for monochromatic luminaire

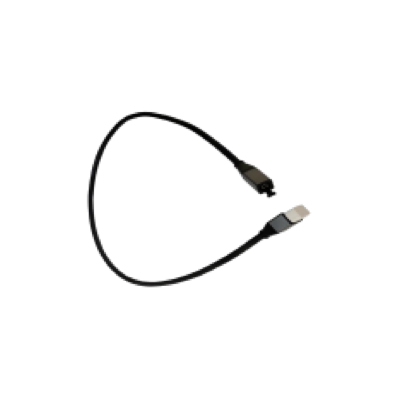

ATR-CAB-0008-00
Jumper cable 2x1sqmm, L= 1000mm, for monochromatic luminaire , for longer distance between two luminaires

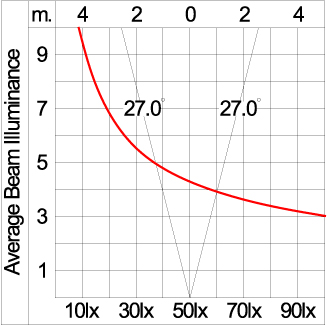

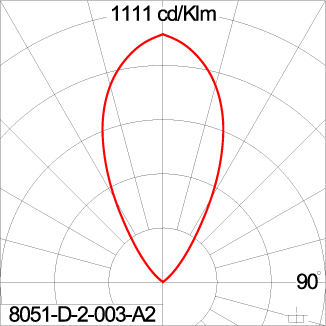

 New Ordering Code : 8051-D-2-003-A2
Lamp : LED Socket : N/A Wattage : 24 W Beam : 54° Lumen : 1840 lm CCT : 3000 K Controller : Remote Specsheet :
ALESSA/1 1000 - CV
ALESSA/1 1000 - CV

Accessories

AUN-DRG-0011-00
LED constant voltage driver, 24VDC, 150W
AUN-DRG-0022-00
LED constant voltage driver, 24VDC, 60W, DALI
AUN-DRG-0023-00
LED constant voltage driver, 24VDC, 120W, DALI
AUN-DRG-0024-00
LED constant voltage driver, 24VDC, 200W
AUN-DRG-0027-00
LED constant voltage driver, 24VDC, 72W
ATR-CON-0005-00
Connector end cap
ATR-CAB-0007-00
Feed in cable 2x1sqmm, L= 1000mm, for monochromatic luminaire
ATR-CAB-0008-00
Jumper cable 2x1sqmm, L= 1000mm, for monochromatic luminaire , for longer distance between two luminaires

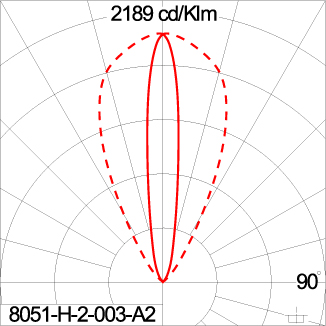

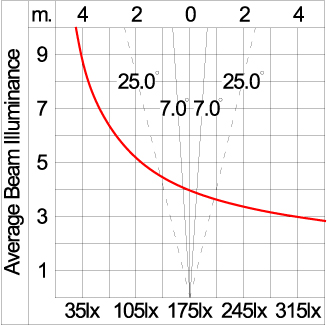

 New Ordering Code : 8051-H-2-003-A2
Lamp : LED Socket : N/A Wattage : 24 W Beam : 50°/14° Lumen : 1980 lm CCT : 3000 K Controller : Remote Specsheet :
ALESSA/1 1000 - CV
ALESSA/1 1000 - CV

Accessories

AUN-DRG-0011-00
LED constant voltage driver, 24VDC, 150W
AUN-DRG-0022-00
LED constant voltage driver, 24VDC, 60W, DALI
AUN-DRG-0023-00
LED constant voltage driver, 24VDC, 120W, DALI
AUN-DRG-0024-00
LED constant voltage driver, 24VDC, 200W
AUN-DRG-0027-00
LED constant voltage driver, 24VDC, 72W
ATR-CON-0005-00
Connector end cap
ATR-CAB-0007-00
Feed in cable 2x1sqmm, L= 1000mm, for monochromatic luminaire
ATR-CAB-0008-00
Jumper cable 2x1sqmm, L= 1000mm, for monochromatic luminaire , for longer distance between two luminaires
