ARC

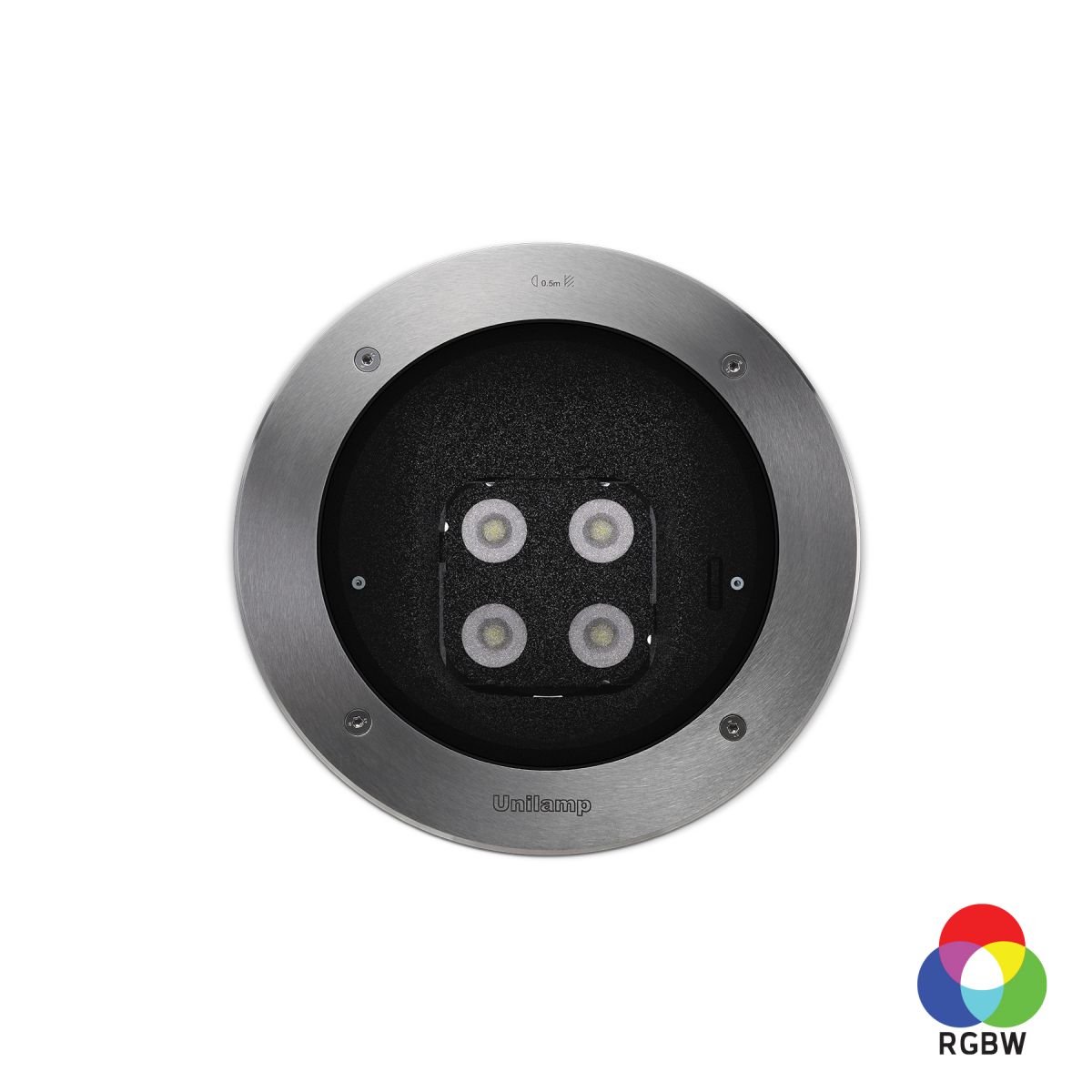

ARC - the adjustable walkover inground-uplighter. ARC incorporates a unique aiming mechanism that is adjustable from the outside of the fixture using a standard screwdriver or hexagon key. This key benefit means the installer doesn't need to open the luminaire or remove it from the ground for adjustment. Final commissioning and aiming are carried out while the product is still sitting in the ground block-out. The housing is enhanced LM6 aluminium, and the front cover plate comes in stainless steel. ARC offers outstanding beam quality with high contrast and precise control. The luminaire is fitted with a pre-wired supply cable for inground application and internally potted to prevent humidity and condensation.

Clear All
Ordering Code : 9060-A-3-767-91
Lamp : LED Socket : N/A Wattage : 20 W Beam : 14° Lumen : 1450 lm CCT : 2700 K Controller : On-Off
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0248-0-9-000-00
IP68 Water Tight Connecting Device Cable Diameter 7 - 12mm.
0411-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 5.0 - 9.5mm.
0412-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 3 pole, 1 input, 2 outputs, Cable Diameter 5.0 - 9.5mm.
0497-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
0138-0-9-000-00
IP68 Water Tight Connection Device for Through Wiring
0246-0-9-000-00
Gel-Filled IP68 Connector Cable Diameter 8 - 10mm
0245-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm.
Ordering Code : 9060-A-4-767-91
Lamp : LED Socket : N/A Wattage : 20 W Beam : 14° Lumen : 1450 lm CCT : 2700 K Controller : DIM 1-10V
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0396-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm. for dimming interface
0413-0-9-000-00
IP68 Water Tight Connecting Device 5 Pole, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0414-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 5 pole, 1 input, 2 outputs, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0498-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
Ordering Code : 9060-A-5-767-91
Lamp : LED Socket : N/A Wattage : 20 W Beam : 14° Lumen : 1450 lm CCT : 2700 K Controller : DALI
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0396-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm. for dimming interface
0413-0-9-000-00
IP68 Water Tight Connecting Device 5 Pole, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0414-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 5 pole, 1 input, 2 outputs, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0498-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
Ordering Code : 9060-A-3-710-91
Lamp : LED Socket : N/A Wattage : 27 W Beam : 14° Lumen : 1940 lm CCT : 2700 K Controller : On-Off
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0248-0-9-000-00
IP68 Water Tight Connecting Device Cable Diameter 7 - 12mm.
0411-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 5.0 - 9.5mm.
0412-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 3 pole, 1 input, 2 outputs, Cable Diameter 5.0 - 9.5mm.
0497-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
0138-0-9-000-00
IP68 Water Tight Connection Device for Through Wiring
0246-0-9-000-00
Gel-Filled IP68 Connector Cable Diameter 8 - 10mm
0245-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm.
Ordering Code : 9060-A-4-710-91
Lamp : LED Socket : N/A Wattage : 27 W Beam : 14° Lumen : 1940 lm CCT : 2700 K Controller : DIM 1-10V
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0396-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm. for dimming interface
0413-0-9-000-00
IP68 Water Tight Connecting Device 5 Pole, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0414-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 5 pole, 1 input, 2 outputs, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0498-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
Ordering Code : 9060-A-5-710-91
Lamp : LED Socket : N/A Wattage : 27 W Beam : 14° Lumen : 1940 lm CCT : 2700 K Controller : DALI
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0396-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm. for dimming interface
0413-0-9-000-00
IP68 Water Tight Connecting Device 5 Pole, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0414-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 5 pole, 1 input, 2 outputs, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0498-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
Ordering Code : 9060-B-3-506-91
Lamp : LED Socket : N/A Wattage : 19 W Beam : 25° Lumen : 1070 lm CCT : 2700 K Controller : On-Off
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0248-0-9-000-00
IP68 Water Tight Connecting Device Cable Diameter 7 - 12mm.
0411-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 5.0 - 9.5mm.
0412-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 3 pole, 1 input, 2 outputs, Cable Diameter 5.0 - 9.5mm.
0497-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
0138-0-9-000-00
IP68 Water Tight Connection Device for Through Wiring
0246-0-9-000-00
Gel-Filled IP68 Connector Cable Diameter 8 - 10mm
0245-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm.
Ordering Code : 9060-B-4-506-91
Lamp : LED Socket : N/A Wattage : 19 W Beam : 25° Lumen : 1070 lm CCT : 2700 K Controller : DIM 1-10V
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0396-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm. for dimming interface
0413-0-9-000-00
IP68 Water Tight Connecting Device 5 Pole, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0414-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 5 pole, 1 input, 2 outputs, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0498-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
Ordering Code : 9060-B-5-506-91
Lamp : LED Socket : N/A Wattage : 19 W Beam : 25° Lumen : 1070 lm CCT : 2700 K Controller : DALI
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0396-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm. for dimming interface
0413-0-9-000-00
IP68 Water Tight Connecting Device 5 Pole, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0414-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 5 pole, 1 input, 2 outputs, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0498-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
Ordering Code : 9060-B-3-505-91
Lamp : LED Socket : N/A Wattage : 26 W Beam : 25° Lumen : 1480 lm CCT : 2700 K Controller : On-Off
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0248-0-9-000-00
IP68 Water Tight Connecting Device Cable Diameter 7 - 12mm.
0411-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 5.0 - 9.5mm.
0412-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 3 pole, 1 input, 2 outputs, Cable Diameter 5.0 - 9.5mm.
0497-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
0138-0-9-000-00
IP68 Water Tight Connection Device for Through Wiring
0246-0-9-000-00
Gel-Filled IP68 Connector Cable Diameter 8 - 10mm
0245-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm.
Ordering Code : 9060-B-4-505-91
Lamp : LED Socket : N/A Wattage : 26 W Beam : 25° Lumen : 1480 lm CCT : 2700 K Controller : DIM 1-10V
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0396-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm. for dimming interface
0413-0-9-000-00
IP68 Water Tight Connecting Device 5 Pole, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0414-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 5 pole, 1 input, 2 outputs, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0498-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
Ordering Code : 9060-B-5-505-91
Lamp : LED Socket : N/A Wattage : 26 W Beam : 25° Lumen : 1480 lm CCT : 2700 K Controller : DALI
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0396-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm. for dimming interface
0413-0-9-000-00
IP68 Water Tight Connecting Device 5 Pole, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0414-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 5 pole, 1 input, 2 outputs, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0498-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
Ordering Code : 9060-C-3-506-91
Lamp : LED Socket : N/A Wattage : 19 W Beam : 35° Lumen : 720 lm CCT : 2700 K Controller : On-Off
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0248-0-9-000-00
IP68 Water Tight Connecting Device Cable Diameter 7 - 12mm.
0411-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 5.0 - 9.5mm.
0412-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 3 pole, 1 input, 2 outputs, Cable Diameter 5.0 - 9.5mm.
0497-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
0138-0-9-000-00
IP68 Water Tight Connection Device for Through Wiring
0246-0-9-000-00
Gel-Filled IP68 Connector Cable Diameter 8 - 10mm
0245-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm.
Ordering Code : 9060-C-4-506-91
Lamp : LED Socket : N/A Wattage : 19 W Beam : 35° Lumen : 720 lm CCT : 2700 K Controller : DIM 1-10V
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0396-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm. for dimming interface
0413-0-9-000-00
IP68 Water Tight Connecting Device 5 Pole, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0414-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 5 pole, 1 input, 2 outputs, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0498-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
Ordering Code : 9060-C-5-506-91
Lamp : LED Socket : N/A Wattage : 19 W Beam : 35° Lumen : 720 lm CCT : 2700 K Controller : DALI
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0396-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm. for dimming interface
0413-0-9-000-00
IP68 Water Tight Connecting Device 5 Pole, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0414-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 5 pole, 1 input, 2 outputs, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0498-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
Ordering Code : 9060-C-3-505-91
Lamp : LED Socket : N/A Wattage : 26 W Beam : 35° Lumen : 990 lm CCT : 2700 K Controller : On-Off
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0248-0-9-000-00
IP68 Water Tight Connecting Device Cable Diameter 7 - 12mm.
0411-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 5.0 - 9.5mm.
0412-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 3 pole, 1 input, 2 outputs, Cable Diameter 5.0 - 9.5mm.
0497-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
0138-0-9-000-00
IP68 Water Tight Connection Device for Through Wiring
0246-0-9-000-00
Gel-Filled IP68 Connector Cable Diameter 8 - 10mm
0245-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm.
Ordering Code : 9060-C-4-505-91
Lamp : LED Socket : N/A Wattage : 26 W Beam : 35° Lumen : 990 lm CCT : 2700 K Controller : DIM 1-10V
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0396-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm. for dimming interface
0413-0-9-000-00
IP68 Water Tight Connecting Device 5 Pole, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0414-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 5 pole, 1 input, 2 outputs, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0498-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
Ordering Code : 9060-C-5-505-91
Lamp : LED Socket : N/A Wattage : 26 W Beam : 35° Lumen : 990 lm CCT : 2700 K Controller : DALI
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0396-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm. for dimming interface
0413-0-9-000-00
IP68 Water Tight Connecting Device 5 Pole, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0414-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 5 pole, 1 input, 2 outputs, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0498-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
Ordering Code : 9060-A-3-768-91
Lamp : LED Socket : N/A Wattage : 20 W Beam : 14° Lumen : 1500 lm CCT : 3000 K Controller : On-Off
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0248-0-9-000-00
IP68 Water Tight Connecting Device Cable Diameter 7 - 12mm.
0411-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 5.0 - 9.5mm.
0412-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 3 pole, 1 input, 2 outputs, Cable Diameter 5.0 - 9.5mm.
0497-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
0138-0-9-000-00
IP68 Water Tight Connection Device for Through Wiring
0246-0-9-000-00
Gel-Filled IP68 Connector Cable Diameter 8 - 10mm
0245-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm.
Ordering Code : 9060-A-4-768-91
Lamp : LED Socket : N/A Wattage : 20 W Beam : 14° Lumen : 1500 lm CCT : 3000 K Controller : DIM 1-10V
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0396-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm. for dimming interface
0413-0-9-000-00
IP68 Water Tight Connecting Device 5 Pole, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0414-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 5 pole, 1 input, 2 outputs, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0498-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
Ordering Code : 9060-A-5-768-91
Lamp : LED Socket : N/A Wattage : 20 W Beam : 14° Lumen : 1500 lm CCT : 3000 K Controller : DALI
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0396-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm. for dimming interface
0413-0-9-000-00
IP68 Water Tight Connecting Device 5 Pole, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0414-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 5 pole, 1 input, 2 outputs, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0498-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
Ordering Code : 9060-A-3-719-91
Lamp : LED Socket : N/A Wattage : 27 W Beam : 14° Lumen : 2000 lm CCT : 3000 K Controller : On-Off
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0248-0-9-000-00
IP68 Water Tight Connecting Device Cable Diameter 7 - 12mm.
0411-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 5.0 - 9.5mm.
0412-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 3 pole, 1 input, 2 outputs, Cable Diameter 5.0 - 9.5mm.
0497-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
0138-0-9-000-00
IP68 Water Tight Connection Device for Through Wiring
0246-0-9-000-00
Gel-Filled IP68 Connector Cable Diameter 8 - 10mm
0245-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm.
Ordering Code : 9060-A-4-719-91
Lamp : LED Socket : N/A Wattage : 27 W Beam : 14° Lumen : 2000 lm CCT : 3000 K Controller : DIM 1-10V
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0396-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm. for dimming interface
0413-0-9-000-00
IP68 Water Tight Connecting Device 5 Pole, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0414-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 5 pole, 1 input, 2 outputs, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0498-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
Ordering Code : 9060-A-5-719-91
Lamp : LED Socket : N/A Wattage : 27 W Beam : 14° Lumen : 2000 lm CCT : 3000 K Controller : DALI
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0396-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm. for dimming interface
0413-0-9-000-00
IP68 Water Tight Connecting Device 5 Pole, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0414-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 5 pole, 1 input, 2 outputs, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0498-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
Ordering Code : 9060-B-3-887-91
Lamp : LED Socket : N/A Wattage : 19 W Beam : 25° Lumen : 1130 lm CCT : 3000 K Controller : On-Off
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0248-0-9-000-00
IP68 Water Tight Connecting Device Cable Diameter 7 - 12mm.
0411-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 5.0 - 9.5mm.
0412-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 3 pole, 1 input, 2 outputs, Cable Diameter 5.0 - 9.5mm.
0497-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
0138-0-9-000-00
IP68 Water Tight Connection Device for Through Wiring
0246-0-9-000-00
Gel-Filled IP68 Connector Cable Diameter 8 - 10mm
0245-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm.
Ordering Code : 9060-B-4-887-91
Lamp : LED Socket : N/A Wattage : 19 W Beam : 25° Lumen : 1130 lm CCT : 3000 K Controller : DIM 1-10V
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0396-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm. for dimming interface
0413-0-9-000-00
IP68 Water Tight Connecting Device 5 Pole, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0414-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 5 pole, 1 input, 2 outputs, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0498-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
Ordering Code : 9060-B-5-887-91
Lamp : LED Socket : N/A Wattage : 19 W Beam : 25° Lumen : 1130 lm CCT : 3000 K Controller : DALI
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0396-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm. for dimming interface
0413-0-9-000-00
IP68 Water Tight Connecting Device 5 Pole, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0414-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 5 pole, 1 input, 2 outputs, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0498-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
Ordering Code : 9060-B-3-902-91
Lamp : LED Socket : N/A Wattage : 26 W Beam : 25° Lumen : 1540 lm CCT : 3000 K Controller : On-Off
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0248-0-9-000-00
IP68 Water Tight Connecting Device Cable Diameter 7 - 12mm.
0411-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 5.0 - 9.5mm.
0412-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 3 pole, 1 input, 2 outputs, Cable Diameter 5.0 - 9.5mm.
0497-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
0138-0-9-000-00
IP68 Water Tight Connection Device for Through Wiring
0246-0-9-000-00
Gel-Filled IP68 Connector Cable Diameter 8 - 10mm
0245-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm.
Ordering Code : 9060-B-4-902-91
Lamp : LED Socket : N/A Wattage : 26 W Beam : 25° Lumen : 1540 lm CCT : 3000 K Controller : DIM 1-10V
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0396-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm. for dimming interface
0413-0-9-000-00
IP68 Water Tight Connecting Device 5 Pole, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0414-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 5 pole, 1 input, 2 outputs, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0498-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
Ordering Code : 9060-B-5-902-91
Lamp : LED Socket : N/A Wattage : 26 W Beam : 25° Lumen : 1540 lm CCT : 3000 K Controller : DALI
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0396-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm. for dimming interface
0413-0-9-000-00
IP68 Water Tight Connecting Device 5 Pole, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0414-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 5 pole, 1 input, 2 outputs, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0498-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
Ordering Code : 9060-C-3-887-91
Lamp : LED Socket : N/A Wattage : 19 W Beam : 35° Lumen : 760 lm CCT : 3000 K Controller : On-Off
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0248-0-9-000-00
IP68 Water Tight Connecting Device Cable Diameter 7 - 12mm.
0411-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 5.0 - 9.5mm.
0412-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 3 pole, 1 input, 2 outputs, Cable Diameter 5.0 - 9.5mm.
0497-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
0138-0-9-000-00
IP68 Water Tight Connection Device for Through Wiring
0246-0-9-000-00
Gel-Filled IP68 Connector Cable Diameter 8 - 10mm
0245-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm.
Ordering Code : 9060-C-4-887-91
Lamp : LED Socket : N/A Wattage : 19 W Beam : 35° Lumen : 760 lm CCT : 3000 K Controller : DIM 1-10V
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0396-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm. for dimming interface
0413-0-9-000-00
IP68 Water Tight Connecting Device 5 Pole, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0414-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 5 pole, 1 input, 2 outputs, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0498-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
Ordering Code : 9060-C-5-887-91
Lamp : LED Socket : N/A Wattage : 19 W Beam : 35° Lumen : 760 lm CCT : 3000 K Controller : DALI
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0396-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm. for dimming interface
0413-0-9-000-00
IP68 Water Tight Connecting Device 5 Pole, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0414-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 5 pole, 1 input, 2 outputs, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0498-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
Ordering Code : 9060-C-3-902-91
Lamp : LED Socket : N/A Wattage : 26 W Beam : 35° Lumen : 1040 lm CCT : 3000 K Controller : On-Off
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0248-0-9-000-00
IP68 Water Tight Connecting Device Cable Diameter 7 - 12mm.
0411-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 5.0 - 9.5mm.
0412-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 3 pole, 1 input, 2 outputs, Cable Diameter 5.0 - 9.5mm.
0497-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
0138-0-9-000-00
IP68 Water Tight Connection Device for Through Wiring
0246-0-9-000-00
Gel-Filled IP68 Connector Cable Diameter 8 - 10mm
0245-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm.
Ordering Code : 9060-C-4-902-91
Lamp : LED Socket : N/A Wattage : 26 W Beam : 35° Lumen : 1040 lm CCT : 3000 K Controller : DIM 1-10V
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0396-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm. for dimming interface
0413-0-9-000-00
IP68 Water Tight Connecting Device 5 Pole, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0414-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 5 pole, 1 input, 2 outputs, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0498-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
Ordering Code : 9060-C-5-902-91
Lamp : LED Socket : N/A Wattage : 26 W Beam : 35° Lumen : 1040 lm CCT : 3000 K Controller : DALI
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0396-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm. for dimming interface
0413-0-9-000-00
IP68 Water Tight Connecting Device 5 Pole, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0414-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 5 pole, 1 input, 2 outputs, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0498-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
Ordering Code : 9060-A-3-769-91
Lamp : LED Socket : N/A Wattage : 20 W Beam : 14° Lumen : 1570 lm CCT : 4000 K Controller : On-Off
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0248-0-9-000-00
IP68 Water Tight Connecting Device Cable Diameter 7 - 12mm.
0411-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 5.0 - 9.5mm.
0412-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 3 pole, 1 input, 2 outputs, Cable Diameter 5.0 - 9.5mm.
0497-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
0138-0-9-000-00
IP68 Water Tight Connection Device for Through Wiring
0246-0-9-000-00
Gel-Filled IP68 Connector Cable Diameter 8 - 10mm
0245-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm.
Ordering Code : 9060-A-4-769-91
Lamp : LED Socket : N/A Wattage : 20 W Beam : 14° Lumen : 1570 lm CCT : 4000 K Controller : DIM 1-10V
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0396-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm. for dimming interface
0413-0-9-000-00
IP68 Water Tight Connecting Device 5 Pole, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0414-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 5 pole, 1 input, 2 outputs, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0498-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
Ordering Code : 9060-A-5-769-91
Lamp : LED Socket : N/A Wattage : 20 W Beam : 14° Lumen : 1570 lm CCT : 4000 K Controller : DALI
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0396-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm. for dimming interface
0413-0-9-000-00
IP68 Water Tight Connecting Device 5 Pole, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0414-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 5 pole, 1 input, 2 outputs, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0498-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
Ordering Code : 9060-A-3-720-91
Lamp : LED Socket : N/A Wattage : 27 W Beam : 14° Lumen : 2120 lm CCT : 4000 K Controller : On-Off
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0248-0-9-000-00
IP68 Water Tight Connecting Device Cable Diameter 7 - 12mm.
0411-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 5.0 - 9.5mm.
0412-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 3 pole, 1 input, 2 outputs, Cable Diameter 5.0 - 9.5mm.
0497-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
0138-0-9-000-00
IP68 Water Tight Connection Device for Through Wiring
0246-0-9-000-00
Gel-Filled IP68 Connector Cable Diameter 8 - 10mm
0245-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm.
Ordering Code : 9060-A-4-720-91
Lamp : LED Socket : N/A Wattage : 27 W Beam : 14° Lumen : 2120 lm CCT : 4000 K Controller : DIM 1-10V
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0396-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm. for dimming interface
0413-0-9-000-00
IP68 Water Tight Connecting Device 5 Pole, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0414-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 5 pole, 1 input, 2 outputs, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0498-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
Ordering Code : 9060-A-5-720-91
Lamp : LED Socket : N/A Wattage : 27 W Beam : 14° Lumen : 2120 lm CCT : 4000 K Controller : DALI
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0396-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm. for dimming interface
0413-0-9-000-00
IP68 Water Tight Connecting Device 5 Pole, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0414-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 5 pole, 1 input, 2 outputs, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0498-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
Ordering Code : 9060-B-3-891-91
Lamp : LED Socket : N/A Wattage : 19 W Beam : 25° Lumen : 1150 lm CCT : 4000 K Controller : On-Off
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0248-0-9-000-00
IP68 Water Tight Connecting Device Cable Diameter 7 - 12mm.
0411-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 5.0 - 9.5mm.
0412-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 3 pole, 1 input, 2 outputs, Cable Diameter 5.0 - 9.5mm.
0497-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
0138-0-9-000-00
IP68 Water Tight Connection Device for Through Wiring
0246-0-9-000-00
Gel-Filled IP68 Connector Cable Diameter 8 - 10mm
0245-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm.
Ordering Code : 9060-B-4-891-91
Lamp : LED Socket : N/A Wattage : 19 W Beam : 25° Lumen : 1150 lm CCT : 4000 K Controller : DIM 1-10V
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0396-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm. for dimming interface
0413-0-9-000-00
IP68 Water Tight Connecting Device 5 Pole, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0414-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 5 pole, 1 input, 2 outputs, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0498-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
Ordering Code : 9060-B-5-891-91
Lamp : LED Socket : N/A Wattage : 19 W Beam : 25° Lumen : 1150 lm CCT : 4000 K Controller : DALI
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0396-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm. for dimming interface
0413-0-9-000-00
IP68 Water Tight Connecting Device 5 Pole, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0414-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 5 pole, 1 input, 2 outputs, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0498-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
Ordering Code : 9060-B-3-905-91
Lamp : LED Socket : N/A Wattage : 26 W Beam : 25° Lumen : 1580 lm CCT : 4000 K Controller : On-Off
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0248-0-9-000-00
IP68 Water Tight Connecting Device Cable Diameter 7 - 12mm.
0411-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 5.0 - 9.5mm.
0412-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 3 pole, 1 input, 2 outputs, Cable Diameter 5.0 - 9.5mm.
0497-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
0138-0-9-000-00
IP68 Water Tight Connection Device for Through Wiring
0246-0-9-000-00
Gel-Filled IP68 Connector Cable Diameter 8 - 10mm
0245-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm.
Ordering Code : 9060-B-4-905-91
Lamp : LED Socket : N/A Wattage : 26 W Beam : 25° Lumen : 1580 lm CCT : 4000 K Controller : DIM 1-10V
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0396-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm. for dimming interface
0413-0-9-000-00
IP68 Water Tight Connecting Device 5 Pole, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0414-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 5 pole, 1 input, 2 outputs, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0498-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
Ordering Code : 9060-B-5-905-91
Lamp : LED Socket : N/A Wattage : 26 W Beam : 25° Lumen : 1580 lm CCT : 4000 K Controller : DALI
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0396-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm. for dimming interface
0413-0-9-000-00
IP68 Water Tight Connecting Device 5 Pole, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0414-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 5 pole, 1 input, 2 outputs, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0498-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
Ordering Code : 9060-C-3-891-91
Lamp : LED Socket : N/A Wattage : 19 W Beam : 35° Lumen : 770 lm CCT : 4000 K Controller : On-Off
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0248-0-9-000-00
IP68 Water Tight Connecting Device Cable Diameter 7 - 12mm.
0411-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 5.0 - 9.5mm.
0412-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 3 pole, 1 input, 2 outputs, Cable Diameter 5.0 - 9.5mm.
0497-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
0138-0-9-000-00
IP68 Water Tight Connection Device for Through Wiring
0246-0-9-000-00
Gel-Filled IP68 Connector Cable Diameter 8 - 10mm
0245-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm.
Ordering Code : 9060-C-4-891-91
Lamp : LED Socket : N/A Wattage : 19 W Beam : 35° Lumen : 770 lm CCT : 4000 K Controller : DIM 1-10V
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0396-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm. for dimming interface
0413-0-9-000-00
IP68 Water Tight Connecting Device 5 Pole, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0414-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 5 pole, 1 input, 2 outputs, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0498-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
Ordering Code : 9060-C-5-891-91
Lamp : LED Socket : N/A Wattage : 19 W Beam : 35° Lumen : 770 lm CCT : 4000 K Controller : DALI
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0396-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm. for dimming interface
0413-0-9-000-00
IP68 Water Tight Connecting Device 5 Pole, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0414-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 5 pole, 1 input, 2 outputs, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0498-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
Ordering Code : 9060-C-3-905-91
Lamp : LED Socket : N/A Wattage : 26 W Beam : 35° Lumen : 1060 lm CCT : 4000 K Controller : On-Off
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0248-0-9-000-00
IP68 Water Tight Connecting Device Cable Diameter 7 - 12mm.
0411-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 5.0 - 9.5mm.
0412-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 3 pole, 1 input, 2 outputs, Cable Diameter 5.0 - 9.5mm.
0497-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
0138-0-9-000-00
IP68 Water Tight Connection Device for Through Wiring
0246-0-9-000-00
Gel-Filled IP68 Connector Cable Diameter 8 - 10mm
0245-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm.
Ordering Code : 9060-C-4-905-91
Lamp : LED Socket : N/A Wattage : 26 W Beam : 35° Lumen : 1060 lm CCT : 4000 K Controller : DIM 1-10V
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0396-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm. for dimming interface
0413-0-9-000-00
IP68 Water Tight Connecting Device 5 Pole, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0414-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 5 pole, 1 input, 2 outputs, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0498-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC
Ordering Code : 9060-C-5-905-91
Lamp : LED Socket : N/A Wattage : 26 W Beam : 35° Lumen : 1060 lm CCT : 4000 K Controller : DALI
ARC
ARC
ARC
ARC

Technical Data Download

Accessories

0396-0-9-000-00
Gel-Filled IP68 Connector for Through Wiring Cable Diameter 6.5 - 12mm. for dimming interface
0413-0-9-000-00
IP68 Water Tight Connecting Device 5 Pole, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0414-0-9-000-00
IP68 Water Tight Connecting Device with Distribution block, 5 pole, 1 input, 2 outputs, Cable Diameter 7.1 - 13mm. (1-10V or Dali)
0498-0-9-000-00
IP68 Water Tight Connecting Device, 3 Pole, Cable Diameter 7 - 11.5mm.
0509-0-9-000-00
Honey Comb Louver. (pre-assembled from factory) for ARC

CONTACT INFO

  •   461 Ramintra Road, Kannayao, Bangkok 10230 Thailand
  •   Tel : +66(0)2 943 2420-1, +66(0)2 946 4170-1
  •   Fax : +66(0)2 943 2419
  •   Email : online@unilamp.co.th

WORKING DAYS

  • MON. - FRI. 8.00 AM - 5.00 PM
  • TIME GMT +7

Follow Us
