HYPERION 40

The HYPERION LED Post Top luminaire combines contemporary design with robust performance, making it ideal for lighting in parks, residential areas, pathways, and public spaces. Its seamless housing presents a refined architectural look, while precision optics ensure excellent light distribution and minimized glare for pedestrian comfort. Constructed from high-quality aluminum alloy and equipped with tempered glass and polycarbonate lenses, the fixture delivers durability and reliable outdoor operation. Rated IP66 and IK08, the HYPERION is built to withstand demanding environmental conditions. It is designed for Ø60 mm post-top mounting and is available in various wattages to accommodate a range of lighting applications.

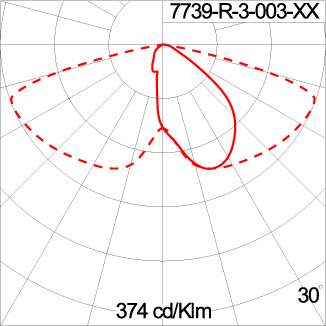

New	Ordering Code : 7739-R-3-003-XX	Lamp : LED	Socket : N/A	Wattage : 40 W	Beam : T2 - Asymmetric Long Side Throw	Lumen : 4910 lm	CCT : 3000 K	Controller : On-Off	Specsheet :
Technical Data Download IES LDT Specification Sheet Instruction 2D Drawing Energy Label Family Brochure Accessories AUN-POL-0009-XX Cylindrical aluminum pole, diameter 105mm, H= 3000mm, spigot 60mm AUN-POL-0010-XX Cylindrical aluminum pole, diameter 105mm, H= 3500mm, spigot 60mm AUN-POL-0011-XX Cylindrical aluminum pole, diameter 105mm, H= 4000mm, spigot 60mm AUN-ACB-0005-00 Anchor bolt kit, aluminum pole

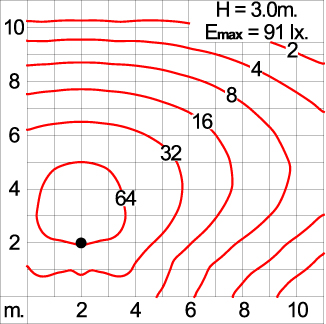

New	Ordering Code : 7739-S-3-003-XX	Lamp : LED	Socket : N/A	Wattage : 40 W	Beam : T3 - Asymmetric Medium Side Throw	Lumen : 4790 lm	CCT : 3000 K	Controller : On-Off	Specsheet :
Technical Data Download IES LDT Specification Sheet Instruction 2D Drawing Energy Label Family Brochure Accessories AUN-POL-0009-XX Cylindrical aluminum pole, diameter 105mm, H= 3000mm, spigot 60mm AUN-POL-0010-XX Cylindrical aluminum pole, diameter 105mm, H= 3500mm, spigot 60mm AUN-POL-0011-XX Cylindrical aluminum pole, diameter 105mm, H= 4000mm, spigot 60mm AUN-ACB-0005-00 Anchor bolt kit, aluminum pole
New	Ordering Code : 7739-T-3-003-XX	Lamp : LED	Socket : N/A	Wattage : 40 W	Beam : T4 - Asymmetric Forward Throw	Lumen : 4770 lm	CCT : 3000 K	Controller : On-Off	Specsheet :
Technical Data Download IES LDT Specification Sheet Instruction 2D Drawing Energy Label Family Brochure Accessories AUN-POL-0009-XX Cylindrical aluminum pole, diameter 105mm, H= 3000mm, spigot 60mm AUN-POL-0010-XX Cylindrical aluminum pole, diameter 105mm, H= 3500mm, spigot 60mm AUN-POL-0011-XX Cylindrical aluminum pole, diameter 105mm, H= 4000mm, spigot 60mm AUN-ACB-0005-00 Anchor bolt kit, aluminum pole

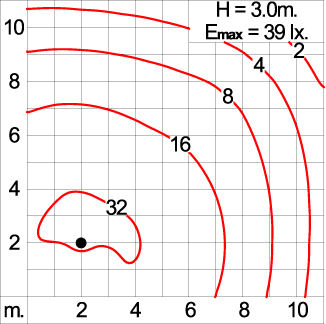

New	Ordering Code : 7739-L-3-003-XX	Lamp : LED	Socket : N/A	Wattage : 40 W	Beam : T5 - Wide Symmetric	Lumen : 4430 lm	CCT : 3000 K	Controller : On-Off	Specsheet :
Technical Data Download IES LDT Specification Sheet Instruction 2D Drawing Energy Label Family Brochure Accessories AUN-POL-0009-XX Cylindrical aluminum pole, diameter 105mm, H= 3000mm, spigot 60mm AUN-POL-0010-XX Cylindrical aluminum pole, diameter 105mm, H= 3500mm, spigot 60mm AUN-POL-0011-XX Cylindrical aluminum pole, diameter 105mm, H= 4000mm, spigot 60mm AUN-ACB-0005-00 Anchor bolt kit, aluminum pole

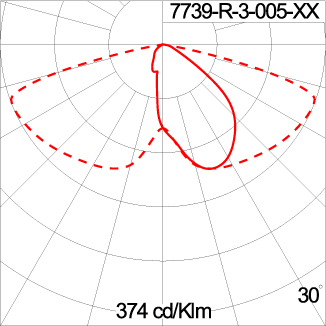

New	Ordering Code : 7739-R-3-005-XX	Lamp : LED	Socket : N/A	Wattage : 40 W	Beam : T2 - Asymmetric Long Side Throw	Lumen : 5160 lm	CCT : 4000 K	Controller : On-Off	Specsheet :
Technical Data Download IES LDT Specification Sheet Instruction 2D Drawing Energy Label Family Brochure Accessories AUN-POL-0009-XX Cylindrical aluminum pole, diameter 105mm, H= 3000mm, spigot 60mm AUN-POL-0010-XX Cylindrical aluminum pole, diameter 105mm, H= 3500mm, spigot 60mm AUN-POL-0011-XX Cylindrical aluminum pole, diameter 105mm, H= 4000mm, spigot 60mm AUN-ACB-0005-00 Anchor bolt kit, aluminum pole

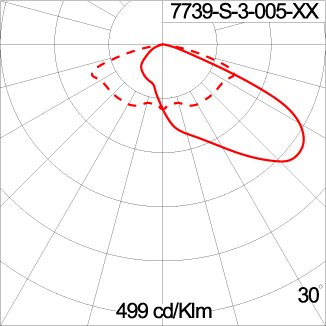

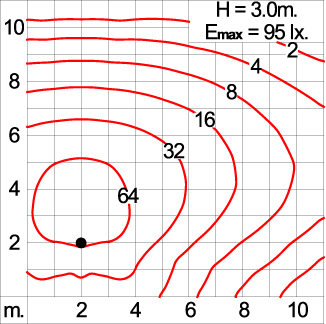

New	Ordering Code : 7739-S-3-005-XX	Lamp : LED	Socket : N/A	Wattage : 40 W	Beam : T3 - Asymmetric Medium Side Throw	Lumen : 5030 lm	CCT : 4000 K	Controller : On-Off	Specsheet :
Technical Data Download IES LDT Specification Sheet Instruction 2D Drawing Energy Label Family Brochure Accessories AUN-POL-0009-XX Cylindrical aluminum pole, diameter 105mm, H= 3000mm, spigot 60mm AUN-POL-0010-XX Cylindrical aluminum pole, diameter 105mm, H= 3500mm, spigot 60mm AUN-POL-0011-XX Cylindrical aluminum pole, diameter 105mm, H= 4000mm, spigot 60mm AUN-ACB-0005-00 Anchor bolt kit, aluminum pole

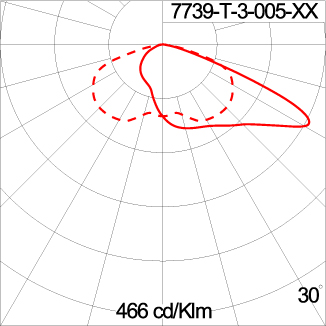

New	Ordering Code : 7739-T-3-005-XX	Lamp : LED	Socket : N/A	Wattage : 40 W	Beam : T4 - Asymmetric Forward Throw	Lumen : 5010 lm	CCT : 4000 K	Controller : On-Off	Specsheet :
Technical Data Download IES LDT Specification Sheet Instruction 2D Drawing Energy Label Family Brochure Accessories AUN-POL-0009-XX Cylindrical aluminum pole, diameter 105mm, H= 3000mm, spigot 60mm AUN-POL-0010-XX Cylindrical aluminum pole, diameter 105mm, H= 3500mm, spigot 60mm AUN-POL-0011-XX Cylindrical aluminum pole, diameter 105mm, H= 4000mm, spigot 60mm AUN-ACB-0005-00 Anchor bolt kit, aluminum pole

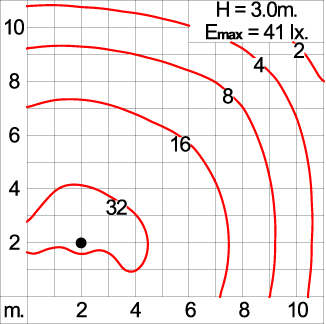

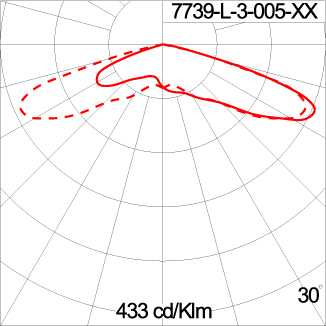

New	Ordering Code : 7739-L-3-005-XX	Lamp : LED	Socket : N/A	Wattage : 40 W	Beam : T5 - Wide Symmetric	Lumen : 4660 lm	CCT : 4000 K	Controller : On-Off	Specsheet :
Technical Data Download IES LDT Specification Sheet Instruction 2D Drawing Energy Label Family Brochure Accessories AUN-POL-0009-XX Cylindrical aluminum pole, diameter 105mm, H= 3000mm, spigot 60mm AUN-POL-0010-XX Cylindrical aluminum pole, diameter 105mm, H= 3500mm, spigot 60mm AUN-POL-0011-XX Cylindrical aluminum pole, diameter 105mm, H= 4000mm, spigot 60mm AUN-ACB-0005-00 Anchor bolt kit, aluminum pole
