FONTANA

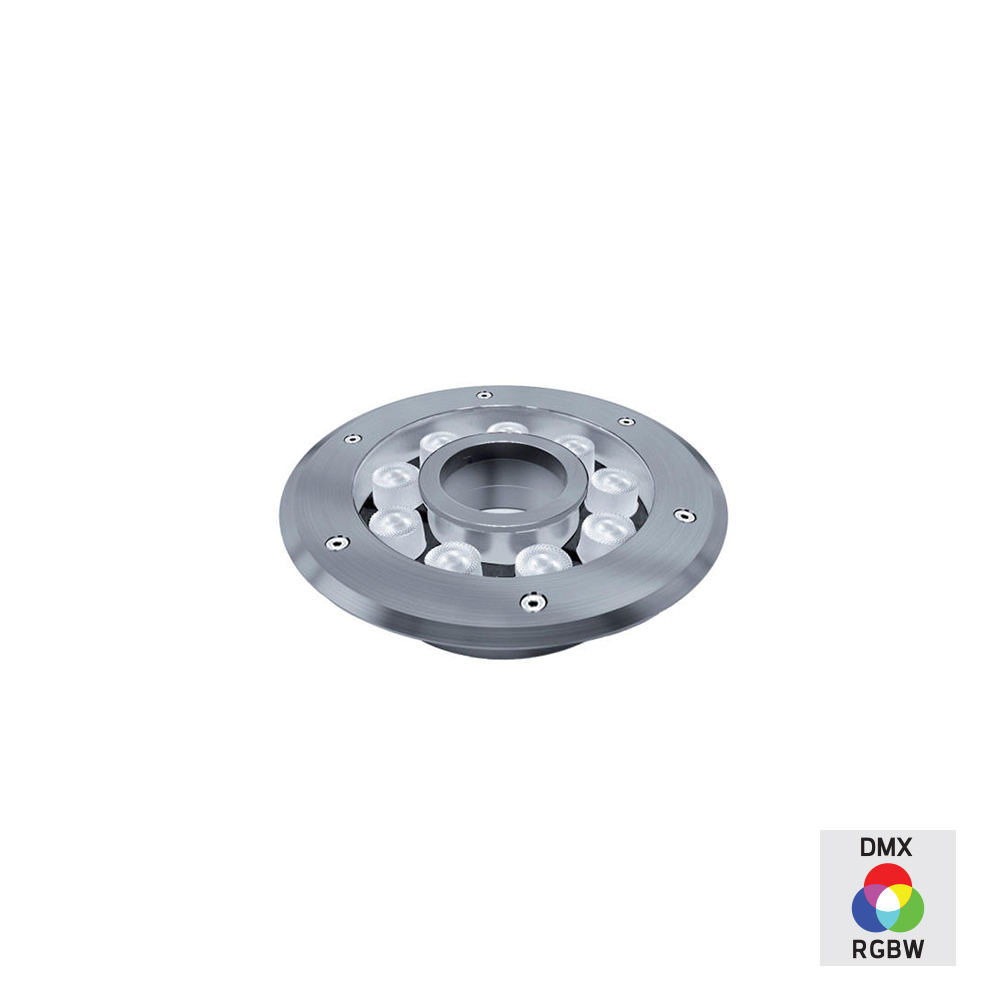

FONTANA is a family of recessed underwater luminaires designed for pools and fountains. Crafted from durable SUS316 stainless steel, it features a 6mm ultra-white tempered glass lens for enhanced durability and clarity. The family is available in brushed, polished, and passivated finishes, ensuring it complements a wide range of design settings. Equipped with high-power LEDs in 3000K, 4000K, and RGBW options, FONTANA offers both vibrant color and high-performance white light. Built for extreme environments, it operates in temperatures ranging from –20°C to +45°C, supports up to 1000kg load pressure, and carries an IP68 waterproof rating. Control options include ON/OFF and DMX, enabling both static and dynamic lighting scenarios. With a lifespan of 56,600 hours, FONTANA ensures long-lasting performance and reliability. We highly recommend considering luminaire layout during specification and planning. Installation must comply with national safety regulations.

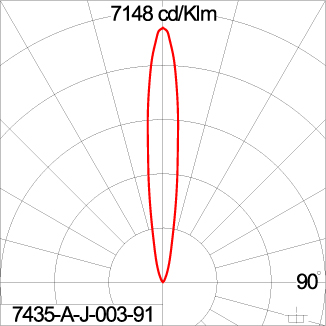

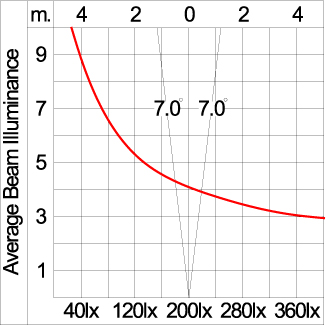

 New Ordering Code : 7435-A-J-003-91
Lamp : LED Socket : N/A Wattage : 10 W Beam : 14° Lumen : 870 lm CCT : 3000 K Controller : Remote Specsheet :
FONTANA
FONTANA

Accessories

AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-DRG-0011-00
LED constant voltage driver, 24VDC, 150W
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-CON-0003-00
IP68 Connector, cable diameter 8-10mm, gel-filled for through wiring
AUN-DRG-0024-00
LED constant voltage driver, 24VDC, 200W
AUN-DRG-0027-00
LED constant voltage driver, 24VDC, 72W

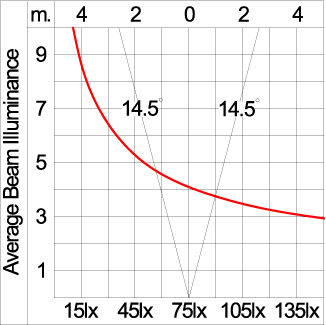

 New Ordering Code : 7435-B-J-003-91
Lamp : LED Socket : N/A Wattage : 10 W Beam : 29° Lumen : 940 lm CCT : 3000 K Controller : Remote Specsheet :
FONTANA
FONTANA

Accessories

AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-DRG-0011-00
LED constant voltage driver, 24VDC, 150W
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-CON-0003-00
IP68 Connector, cable diameter 8-10mm, gel-filled for through wiring
AUN-DRG-0024-00
LED constant voltage driver, 24VDC, 200W
AUN-DRG-0027-00
LED constant voltage driver, 24VDC, 72W
 New Ordering Code : 7435-D-J-003-91
Lamp : LED Socket : N/A Wattage : 10 W Beam : 59° Lumen : 720 lm CCT : 3000 K Controller : Remote Specsheet :
FONTANA
FONTANA

Accessories

AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-DRG-0011-00
LED constant voltage driver, 24VDC, 150W
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-CON-0003-00
IP68 Connector, cable diameter 8-10mm, gel-filled for through wiring
AUN-DRG-0024-00
LED constant voltage driver, 24VDC, 200W
AUN-DRG-0027-00
LED constant voltage driver, 24VDC, 72W

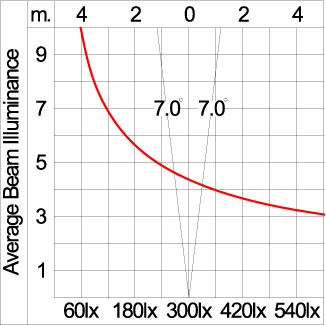

 New Ordering Code : 7435-A-J-033-91
Lamp : LED Socket : N/A Wattage : 18 W Beam : 14° Lumen : 1440 lm CCT : 3000 K Controller : Remote Specsheet :
FONTANA
FONTANA

Accessories

AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-DRG-0011-00
LED constant voltage driver, 24VDC, 150W
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-CON-0003-00
IP68 Connector, cable diameter 8-10mm, gel-filled for through wiring
AUN-DRG-0024-00
LED constant voltage driver, 24VDC, 200W
AUN-DRG-0027-00
LED constant voltage driver, 24VDC, 72W

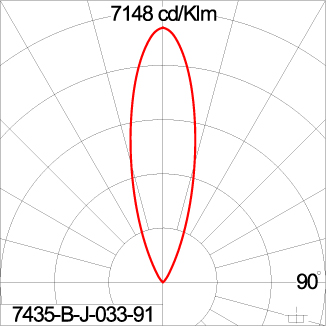

 New Ordering Code : 7435-B-J-033-91
Lamp : LED Socket : N/A Wattage : 18 W Beam : 29° Lumen : 1560 lm CCT : 3000 K Controller : Remote Specsheet :
FONTANA
FONTANA

Accessories

AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-DRG-0011-00
LED constant voltage driver, 24VDC, 150W
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-CON-0003-00
IP68 Connector, cable diameter 8-10mm, gel-filled for through wiring
AUN-DRG-0024-00
LED constant voltage driver, 24VDC, 200W
AUN-DRG-0027-00
LED constant voltage driver, 24VDC, 72W

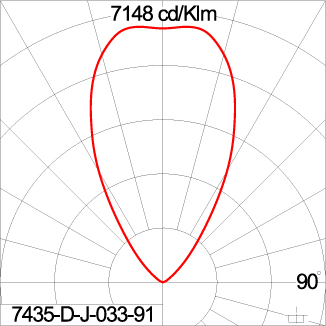

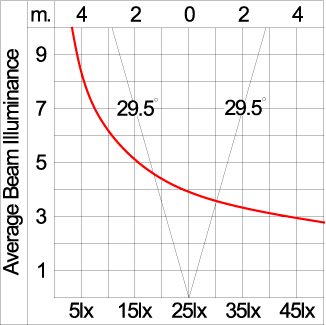

 New Ordering Code : 7435-D-J-033-91
Lamp : LED Socket : N/A Wattage : 18 W Beam : 59° Lumen : 1190 lm CCT : 3000 K Controller : Remote Specsheet :
FONTANA
FONTANA

Accessories

AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-DRG-0011-00
LED constant voltage driver, 24VDC, 150W
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
AUN-CON-0004-00
IP68 Connector, cable diameter 8-10mm, gel-filled
AUN-CON-0003-00
IP68 Connector, cable diameter 8-10mm, gel-filled for through wiring
AUN-DRG-0024-00
LED constant voltage driver, 24VDC, 200W
AUN-DRG-0027-00
LED constant voltage driver, 24VDC, 72W

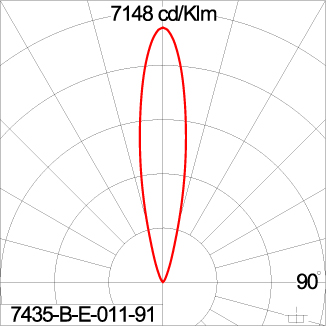

 New Ordering Code : 7435-B-E-011-91
Lamp : LED Socket : N/A Wattage : 10 W Beam : 21° Lumen : 490 lm CCT : RGBW Controller : Remote Specsheet :
FONTANA
FONTANA

Accessories

AUN-CON-0008-00
IP68 Connector, cable diameter 8-10mm, gel-filled for through wiring , 1-10V or DALI
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-DRG-0011-00
LED constant voltage driver, 24VDC, 150W
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-DRG-0024-00
LED constant voltage driver, 24VDC, 200W
AUN-DRG-0027-00
LED constant voltage driver, 24VDC, 72W
AUN-DMX-0023-00
DMX controller, Touchscreen
AUN-DMX-0024-00
DMX controller, 1-Channel
AUN-DMX-0025-00
DMX controller, 2-Channel
AUN-DMX-0026-00
DMX Connector, 3 pin male, L= 1000mm
AUN-DMX-0027-01
Splitter, IP67 aluminum enclosure, DMX
AUN-CON-0022-00
IP67 connection device, cable diameter 4.5-11mm, DMX
AUN-CON-0023-00
IP67 connection device, cable diameter 4.5-11mm, distribution block , DMX
ATR-CAB-0006-00
Cable signal, L= 2000mm, DMX
AUN-CAB-0040-00
Cable H07RN-F 2x1sqmm, L= 2000mm
AUN-CAB-0039-00
Cable H07RN-F 3x1sqmm, L= 2000mm

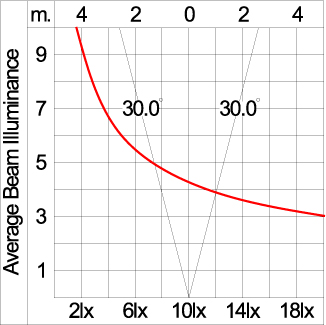

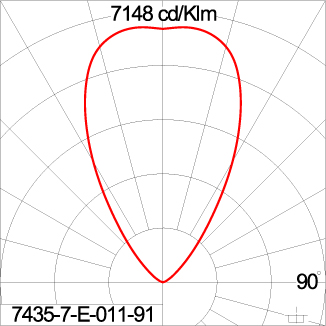

 New Ordering Code : 7435-7-E-011-91
Lamp : LED Socket : N/A Wattage : 10 W Beam : 60° Lumen : 450 lm CCT : RGBW Controller : Remote Specsheet :
FONTANA
FONTANA

Accessories

AUN-CON-0008-00
IP68 Connector, cable diameter 8-10mm, gel-filled for through wiring , 1-10V or DALI
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-DRG-0011-00
LED constant voltage driver, 24VDC, 150W
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-DRG-0024-00
LED constant voltage driver, 24VDC, 200W
AUN-DRG-0027-00
LED constant voltage driver, 24VDC, 72W
AUN-DMX-0023-00
DMX controller, Touchscreen
AUN-DMX-0024-00
DMX controller, 1-Channel
AUN-DMX-0025-00
DMX controller, 2-Channel
AUN-DMX-0026-00
DMX Connector, 3 pin male, L= 1000mm
AUN-DMX-0027-01
Splitter, IP67 aluminum enclosure, DMX
AUN-CON-0022-00
IP67 connection device, cable diameter 4.5-11mm, DMX
AUN-CON-0023-00
IP67 connection device, cable diameter 4.5-11mm, distribution block , DMX
ATR-CAB-0006-00
Cable signal, L= 2000mm, DMX
AUN-CAB-0040-00
Cable H07RN-F 2x1sqmm, L= 2000mm
AUN-CAB-0039-00
Cable H07RN-F 3x1sqmm, L= 2000mm

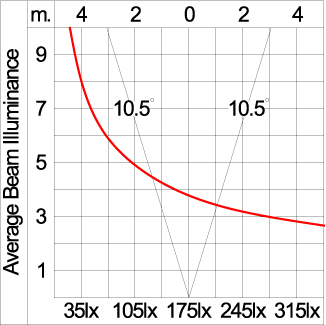

 New Ordering Code : 7435-B-E-055-91
Lamp : LED Socket : N/A Wattage : 18 W Beam : 21° Lumen : 1010 lm CCT : RGBW Controller : Remote Specsheet :
FONTANA
FONTANA

Accessories

AUN-CON-0008-00
IP68 Connector, cable diameter 8-10mm, gel-filled for through wiring , 1-10V or DALI
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-DRG-0011-00
LED constant voltage driver, 24VDC, 150W
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-DRG-0024-00
LED constant voltage driver, 24VDC, 200W
AUN-DRG-0027-00
LED constant voltage driver, 24VDC, 72W
AUN-DMX-0023-00
DMX controller, Touchscreen
AUN-DMX-0024-00
DMX controller, 1-Channel
AUN-DMX-0025-00
DMX controller, 2-Channel
AUN-DMX-0026-00
DMX Connector, 3 pin male, L= 1000mm
AUN-DMX-0027-01
Splitter, IP67 aluminum enclosure, DMX
AUN-CON-0022-00
IP67 connection device, cable diameter 4.5-11mm, DMX
AUN-CON-0023-00
IP67 connection device, cable diameter 4.5-11mm, distribution block , DMX
ATR-CAB-0006-00
Cable signal, L= 2000mm, DMX
AUN-CAB-0040-00
Cable H07RN-F 2x1sqmm, L= 2000mm
AUN-CAB-0039-00
Cable H07RN-F 3x1sqmm, L= 2000mm

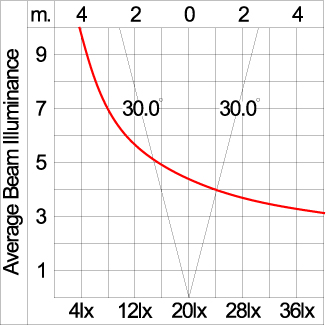

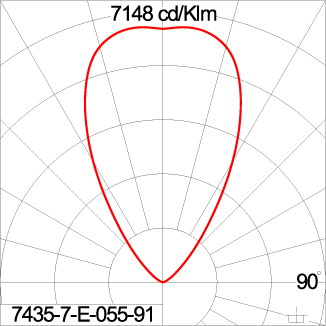

 New Ordering Code : 7435-7-E-055-91
Lamp : LED Socket : N/A Wattage : 18 W Beam : 60° Lumen : 840 lm CCT : RGBW Controller : Remote Specsheet :
FONTANA
FONTANA

Accessories

AUN-CON-0008-00
IP68 Connector, cable diameter 8-10mm, gel-filled for through wiring , 1-10V or DALI
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-DRG-0011-00
LED constant voltage driver, 24VDC, 150W
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
AUN-DRG-0024-00
LED constant voltage driver, 24VDC, 200W
AUN-DRG-0027-00
LED constant voltage driver, 24VDC, 72W
AUN-DMX-0023-00
DMX controller, Touchscreen
AUN-DMX-0024-00
DMX controller, 1-Channel
AUN-DMX-0025-00
DMX controller, 2-Channel
AUN-DMX-0026-00
DMX Connector, 3 pin male, L= 1000mm
AUN-DMX-0027-01
Splitter, IP67 aluminum enclosure, DMX
AUN-CON-0022-00
IP67 connection device, cable diameter 4.5-11mm, DMX
AUN-CON-0023-00
IP67 connection device, cable diameter 4.5-11mm, distribution block , DMX
ATR-CAB-0006-00
Cable signal, L= 2000mm, DMX
AUN-CAB-0040-00
Cable H07RN-F 2x1sqmm, L= 2000mm
AUN-CAB-0039-00
Cable H07RN-F 3x1sqmm, L= 2000mm
