VAREE - CC

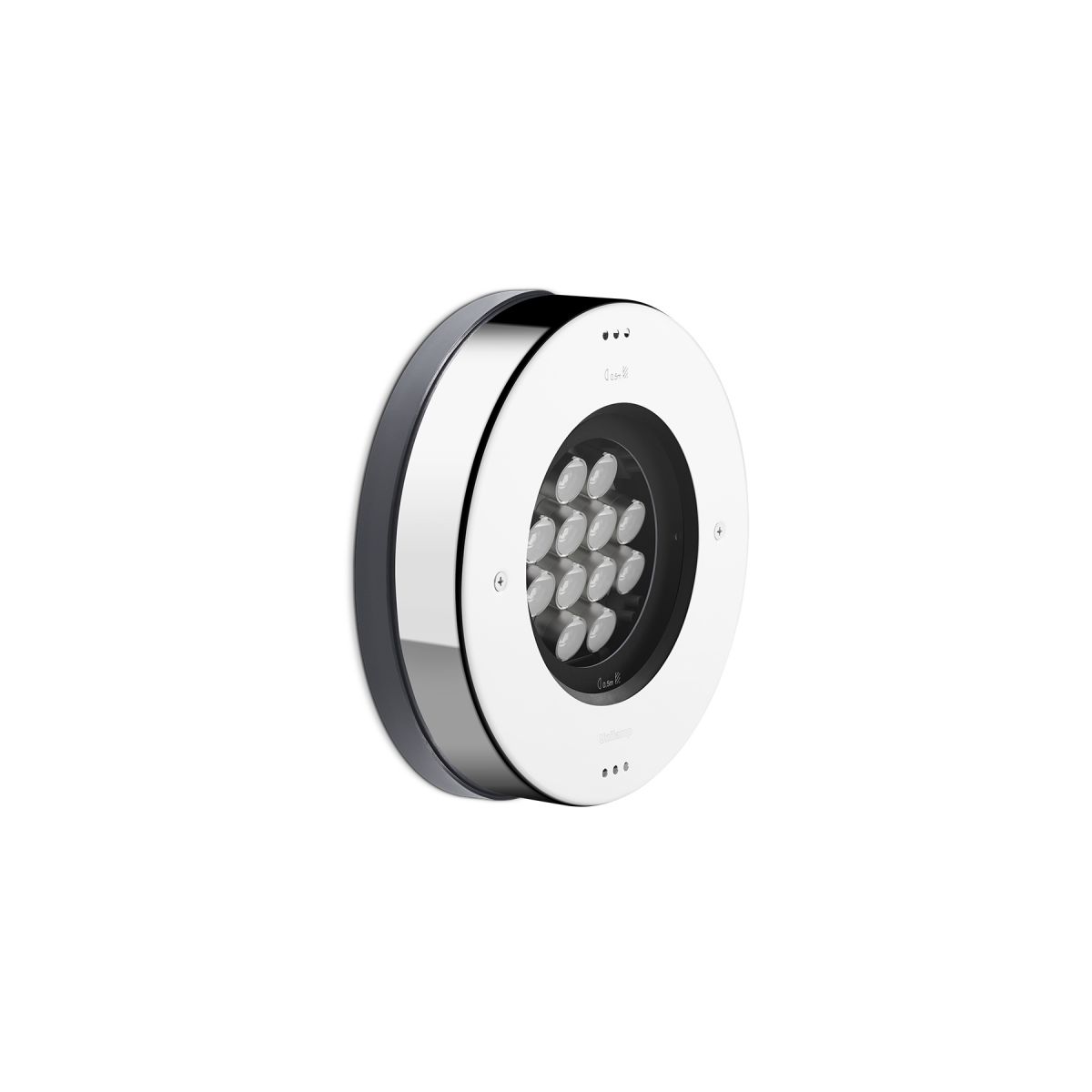

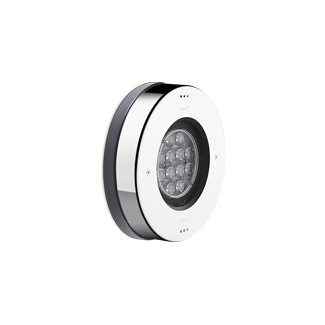

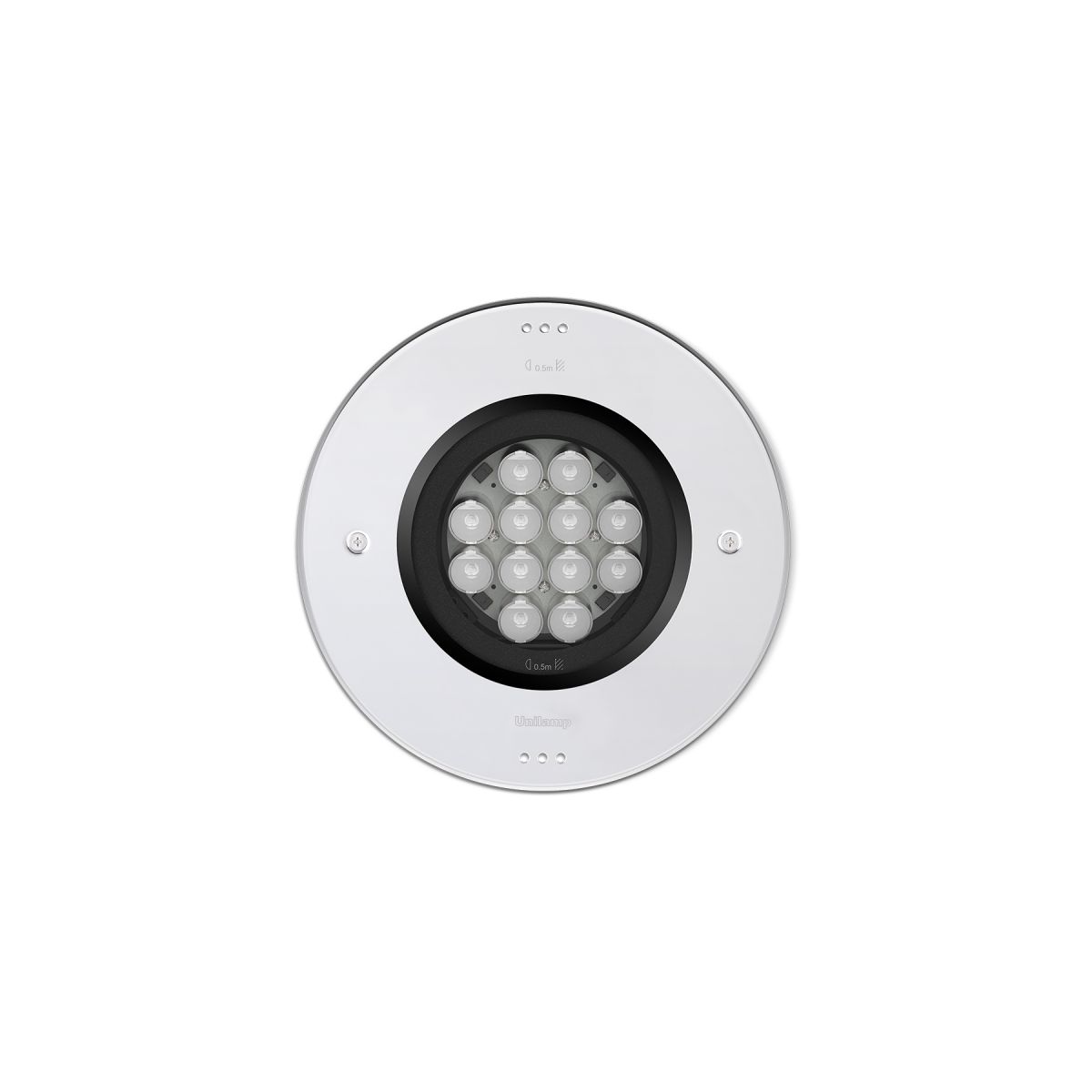

VAREE A family of LED underwater luminaires that is suitable to be installed on the ground, recess in a concrete wall or surface mounted. Operating with high lumen output LED from 2700K, 3000K, 4000K and RGBW with high CRI in 3 steps SDCM. VAREE is designed to illuminate swimming pools, decorative pools, fountains and any submersible application. A wide range of beam angles including Narrow, Medium, Wide and Elliptical beams as well as Asymmetric floor washer. VAREE is pre-wired with underwater cable and internally potted to prevent humidity and condensation. To avoid over-heating, VAREE is equipped with a thermal cut-off device thus the luminaire has to be submerged at all time. The marine grade 316 stainless steel material and advance polymer guarantees corrosion free appearance through out the life time. We highly recommend that the luminaire lay out should be considered during specifying and planning processes. Installation work must be carried out under national safety regulations.

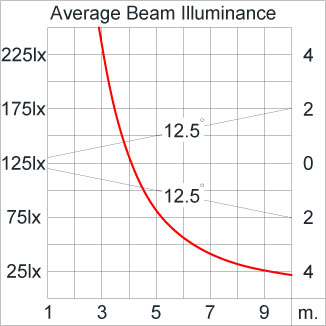

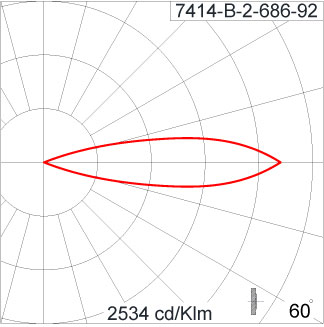

Ordering Code : 7414-B-2-686-92
Lamp : LED Socket : N/A Wattage : 24 W Beam : 25° Lumen : 1360 lm CCT : RGBW Controller : Remote Specsheet :
VAREE - CC
VAREE - CC

Accessories

AUN-DRG-0019-01
RGBW LED constant current driver (SELV output), 4x700mA, 4x25W, with IP66 aluminum enclosure, DALI, with 10kV Surge protection
AUN-GSH-0012-00
Honeycomb louver, LED, pre-assembly from factory
AUN-SOF-0026-00
Softening filter, LED, pre-assembly from factory
AUN-CON-0008-00
IP68 Connector, cable diameter 8-10mm, gel-filled for through wiring , 1-10V or DALI
AUN-DRG-0112-01
LED constant current decoder, 4x700mA, 4x23W, with IP67 GFR polymer enclosure, DMX512/RDM
AUN-DRG-0027-00
LED constant voltage driver, 24VDC, 72W
AUN-DRG-0011-00
LED constant voltage driver, 24VDC, 150W
AUN-DRG-0024-00
LED constant voltage driver, 24VDC, 200W
AUN-DMX-0023-00
DMX controller, Touchscreen
AUN-DMX-0024-00
DMX controller, 1-Channel
AUN-DMX-0025-00
DMX controller, 2-Channel
AUN-DMX-0026-00
DMX Connector, 3 pin male, L= 1000mm
AUN-DMX-0027-01
Splitter, IP67 aluminum enclosure, DMX
AUN-CON-0022-00
IP67 connection device, cable diameter 4.5-11mm, DMX
AUN-CON-0023-00
IP67 connection device, cable diameter 4.5-11mm, distribution block , DMX
ATR-CAB-0006-00
Cable signal, L= 2000mm, DMX
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CAB-0040-00
Cable H07RN-F 2x1sqmm, L= 2000mm
AUN-CAB-0039-00
Cable H07RN-F 3x1sqmm, L= 2000mm
AUN-CTR-0001-00
Touch panel, EDT4, RGBW, DALI
AUN-CTR-0002-00
Bus power supply, 15VDC 220mA, 3.3W, DALI

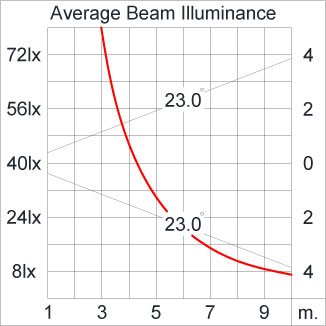

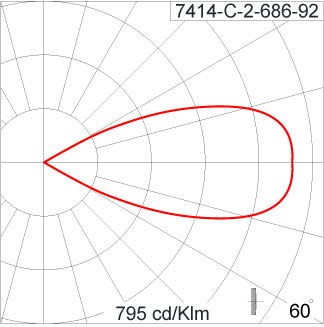

Ordering Code : 7414-C-2-686-92
Lamp : LED Socket : N/A Wattage : 24 W Beam : 46° Lumen : 1250 lm CCT : RGBW Controller : Remote Specsheet :
VAREE - CC
VAREE - CC

Accessories

AUN-DRG-0019-01
RGBW LED constant current driver (SELV output), 4x700mA, 4x25W, with IP66 aluminum enclosure, DALI, with 10kV Surge protection
AUN-GSH-0012-00
Honeycomb louver, LED, pre-assembly from factory
AUN-SOF-0026-00
Softening filter, LED, pre-assembly from factory
AUN-CON-0008-00
IP68 Connector, cable diameter 8-10mm, gel-filled for through wiring , 1-10V or DALI
AUN-DRG-0112-01
LED constant current decoder, 4x700mA, 4x23W, with IP67 GFR polymer enclosure, DMX512/RDM
AUN-DRG-0027-00
LED constant voltage driver, 24VDC, 72W
AUN-DRG-0011-00
LED constant voltage driver, 24VDC, 150W
AUN-DRG-0024-00
LED constant voltage driver, 24VDC, 200W
AUN-DMX-0023-00
DMX controller, Touchscreen
AUN-DMX-0024-00
DMX controller, 1-Channel
AUN-DMX-0025-00
DMX controller, 2-Channel
AUN-DMX-0026-00
DMX Connector, 3 pin male, L= 1000mm
AUN-DMX-0027-01
Splitter, IP67 aluminum enclosure, DMX
AUN-CON-0022-00
IP67 connection device, cable diameter 4.5-11mm, DMX
AUN-CON-0023-00
IP67 connection device, cable diameter 4.5-11mm, distribution block , DMX
ATR-CAB-0006-00
Cable signal, L= 2000mm, DMX
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CAB-0040-00
Cable H07RN-F 2x1sqmm, L= 2000mm
AUN-CAB-0039-00
Cable H07RN-F 3x1sqmm, L= 2000mm
AUN-CTR-0001-00
Touch panel, EDT4, RGBW, DALI
AUN-CTR-0002-00
Bus power supply, 15VDC 220mA, 3.3W, DALI

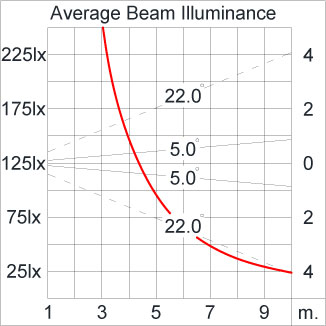

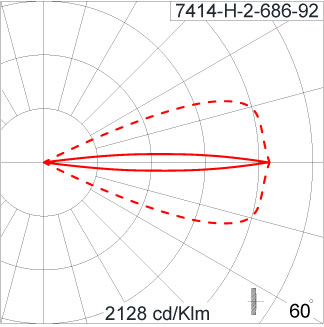

Ordering Code : 7414-H-2-686-92
Lamp : LED Socket : N/A Wattage : 24 W Beam : 44°/10° Lumen : 1330 lm CCT : RGBW Controller : Remote Specsheet :
VAREE - CC
VAREE - CC

Accessories

AUN-DRG-0019-01
RGBW LED constant current driver (SELV output), 4x700mA, 4x25W, with IP66 aluminum enclosure, DALI, with 10kV Surge protection
AUN-GSH-0012-00
Honeycomb louver, LED, pre-assembly from factory
AUN-SOF-0026-00
Softening filter, LED, pre-assembly from factory
AUN-CON-0008-00
IP68 Connector, cable diameter 8-10mm, gel-filled for through wiring , 1-10V or DALI
AUN-DRG-0112-01
LED constant current decoder, 4x700mA, 4x23W, with IP67 GFR polymer enclosure, DMX512/RDM
AUN-DRG-0027-00
LED constant voltage driver, 24VDC, 72W
AUN-DRG-0011-00
LED constant voltage driver, 24VDC, 150W
AUN-DRG-0024-00
LED constant voltage driver, 24VDC, 200W
AUN-DMX-0023-00
DMX controller, Touchscreen
AUN-DMX-0024-00
DMX controller, 1-Channel
AUN-DMX-0025-00
DMX controller, 2-Channel
AUN-DMX-0026-00
DMX Connector, 3 pin male, L= 1000mm
AUN-DMX-0027-01
Splitter, IP67 aluminum enclosure, DMX
AUN-CON-0022-00
IP67 connection device, cable diameter 4.5-11mm, DMX
AUN-CON-0023-00
IP67 connection device, cable diameter 4.5-11mm, distribution block , DMX
ATR-CAB-0006-00
Cable signal, L= 2000mm, DMX
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CAB-0040-00
Cable H07RN-F 2x1sqmm, L= 2000mm
AUN-CAB-0039-00
Cable H07RN-F 3x1sqmm, L= 2000mm
AUN-CTR-0001-00
Touch panel, EDT4, RGBW, DALI
AUN-CTR-0002-00
Bus power supply, 15VDC 220mA, 3.3W, DALI

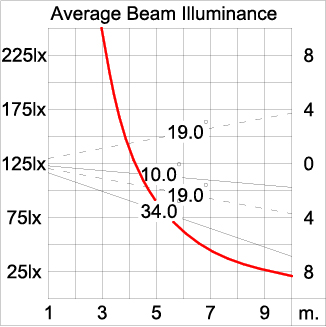

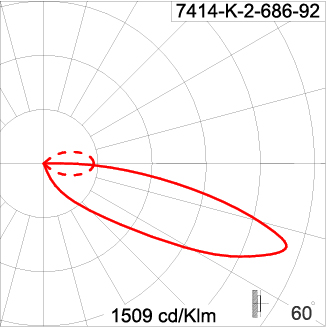

Ordering Code : 7414-K-2-686-92
Lamp : LED Socket : N/A Wattage : 24 W Beam : Asymmetric Lumen : 1560 lm CCT : RGBW Controller : Remote Specsheet :
VAREE - CC
VAREE - CC

Accessories

AUN-DRG-0019-01
RGBW LED constant current driver (SELV output), 4x700mA, 4x25W, with IP66 aluminum enclosure, DALI, with 10kV Surge protection
AUN-CON-0008-00
IP68 Connector, cable diameter 8-10mm, gel-filled for through wiring , 1-10V or DALI
AUN-DRG-0112-01
LED constant current decoder, 4x700mA, 4x23W, with IP67 GFR polymer enclosure, DMX512/RDM
AUN-DRG-0027-00
LED constant voltage driver, 24VDC, 72W
AUN-DRG-0011-00
LED constant voltage driver, 24VDC, 150W
AUN-DRG-0024-00
LED constant voltage driver, 24VDC, 200W
AUN-DMX-0023-00
DMX controller, Touchscreen
AUN-DMX-0024-00
DMX controller, 1-Channel
AUN-DMX-0025-00
DMX controller, 2-Channel
AUN-DMX-0026-00
DMX Connector, 3 pin male, L= 1000mm
AUN-DMX-0027-01
Splitter, IP67 aluminum enclosure, DMX
AUN-CON-0022-00
IP67 connection device, cable diameter 4.5-11mm, DMX
AUN-CON-0023-00
IP67 connection device, cable diameter 4.5-11mm, distribution block , DMX
ATR-CAB-0006-00
Cable signal, L= 2000mm, DMX
AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CAB-0040-00
Cable H07RN-F 2x1sqmm, L= 2000mm
AUN-CAB-0039-00
Cable H07RN-F 3x1sqmm, L= 2000mm
AUN-CTR-0001-00
Touch panel, EDT4, RGBW, DALI
AUN-CTR-0002-00
Bus power supply, 15VDC 220mA, 3.3W, DALI
