HYPERION 75

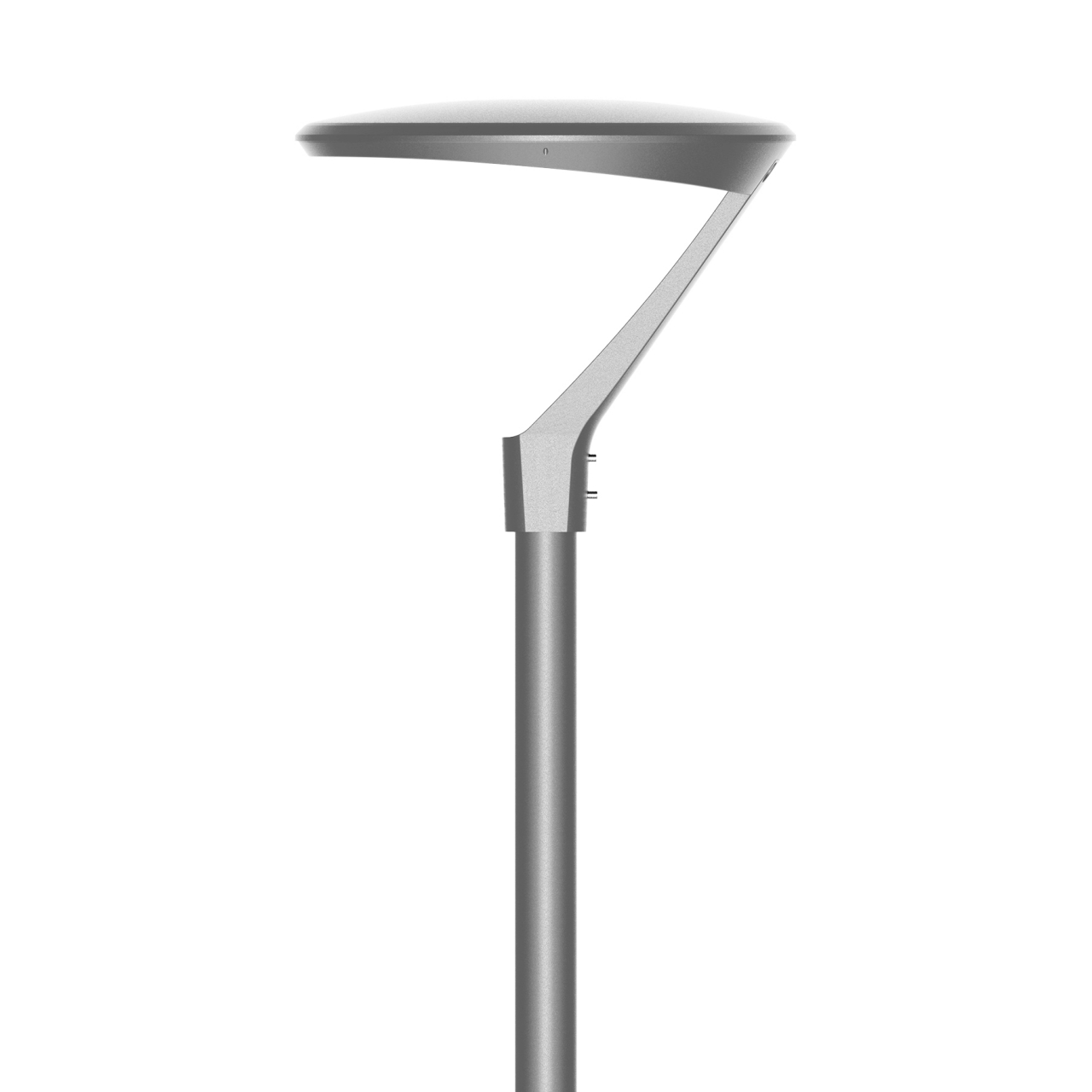

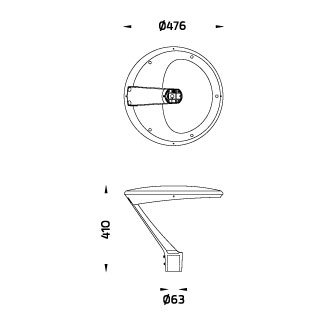

The HYPERION LED Post Top luminaire combines contemporary design with robust performance, making it ideal for lighting in parks, residential areas, pathways, and public spaces. Its seamless housing presents a refined architectural look, while precision optics ensure excellent light distribution and minimized glare for pedestrian comfort. Constructed from high-quality aluminum alloy and equipped with tempered glass and polycarbonate lenses, the fixture delivers durability and reliable outdoor operation. Rated IP66 and IK08, the HYPERION is built to withstand demanding environmental conditions. It is designed for Ø60 mm post-top mounting and is available in various wattages to accommodate a range of lighting applications.

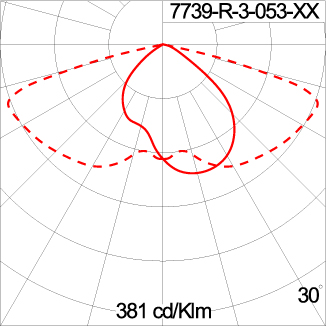

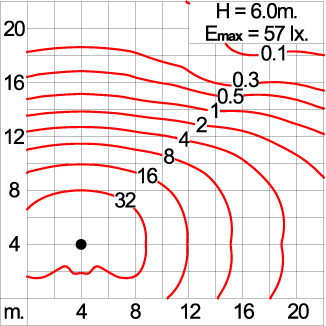

 New Ordering Code : 7739-R-3-053-XX
Lamp : LED Socket : N/A Wattage : 75 W Beam : T2 Lumen : 9500 lm CCT : 3000 K Controller : On-Off Specsheet :
HYPERION 75
HYPERION 75

Accessories

AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-POL-0009-XX
Cylindrical aluminum pole, diameter 105mm, H= 3000mm, spigot 60mm
AUN-POL-0010-XX
Cylindrical aluminum pole, diameter 105mm, H= 3500mm, spigot 60mm
AUN-POL-0011-XX
Cylindrical aluminum pole, diameter 105mm, H= 4000mm, spigot 60mm

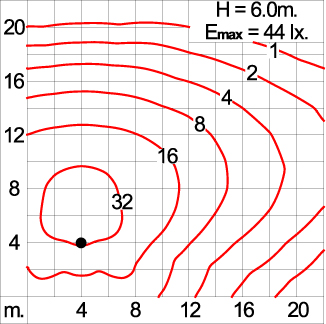

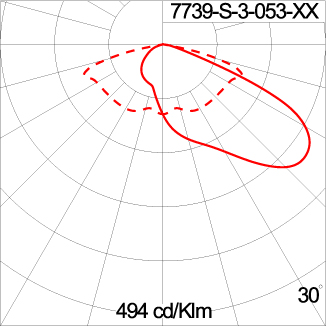

 New Ordering Code : 7739-S-3-053-XX
Lamp : LED Socket : N/A Wattage : 75 W Beam : T3 Lumen : 9160 lm CCT : 3000 K Controller : On-Off Specsheet :
HYPERION 75
HYPERION 75

Accessories

AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-POL-0009-XX
Cylindrical aluminum pole, diameter 105mm, H= 3000mm, spigot 60mm
AUN-POL-0010-XX
Cylindrical aluminum pole, diameter 105mm, H= 3500mm, spigot 60mm
AUN-POL-0011-XX
Cylindrical aluminum pole, diameter 105mm, H= 4000mm, spigot 60mm

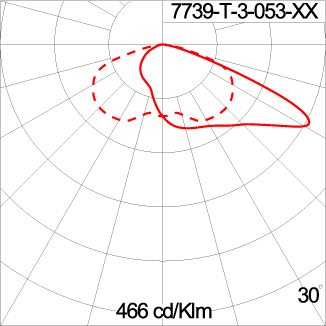

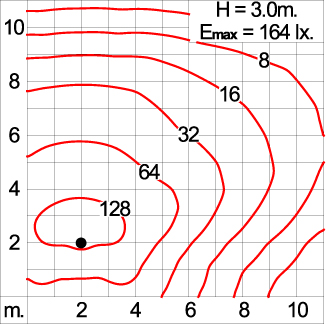

 New Ordering Code : 7739-T-3-053-XX
Lamp : LED Socket : N/A Wattage : 75 W Beam : T4 Lumen : 9010 lm CCT : 3000 K Controller : On-Off Specsheet :
HYPERION 75
HYPERION 75

Accessories

AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-POL-0009-XX
Cylindrical aluminum pole, diameter 105mm, H= 3000mm, spigot 60mm
AUN-POL-0010-XX
Cylindrical aluminum pole, diameter 105mm, H= 3500mm, spigot 60mm
AUN-POL-0011-XX
Cylindrical aluminum pole, diameter 105mm, H= 4000mm, spigot 60mm

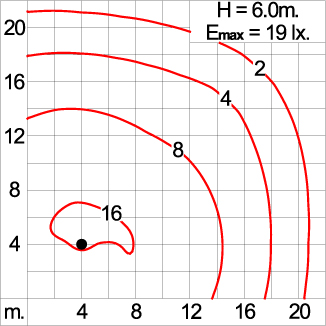

 New Ordering Code : 7739-L-3-053-XX
Lamp : LED Socket : N/A Wattage : 75 W Beam : T5 Lumen : 8480 lm CCT : 3000 K Controller : On-Off Specsheet :
HYPERION 75
HYPERION 75

Accessories

AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-POL-0009-XX
Cylindrical aluminum pole, diameter 105mm, H= 3000mm, spigot 60mm
AUN-POL-0010-XX
Cylindrical aluminum pole, diameter 105mm, H= 3500mm, spigot 60mm
AUN-POL-0011-XX
Cylindrical aluminum pole, diameter 105mm, H= 4000mm, spigot 60mm
 New Ordering Code : 7739-R-3-054-XX
Lamp : LED Socket : N/A Wattage : 75 W Beam : T2 Lumen : 9980 lm CCT : 4000 K Controller : On-Off Specsheet :
HYPERION 75
HYPERION 75

Accessories

AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-POL-0009-XX
Cylindrical aluminum pole, diameter 105mm, H= 3000mm, spigot 60mm
AUN-POL-0010-XX
Cylindrical aluminum pole, diameter 105mm, H= 3500mm, spigot 60mm
AUN-POL-0011-XX
Cylindrical aluminum pole, diameter 105mm, H= 4000mm, spigot 60mm

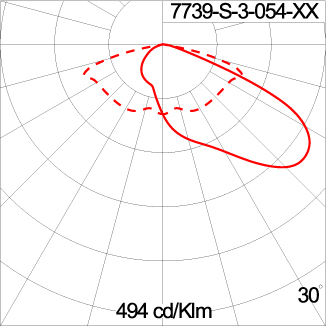

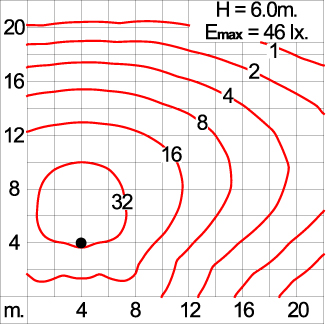

 New Ordering Code : 7739-S-3-054-XX
Lamp : LED Socket : N/A Wattage : 75 W Beam : T3 Lumen : 9620 lm CCT : 4000 K Controller : On-Off Specsheet :
HYPERION 75
HYPERION 75

Accessories

AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-POL-0009-XX
Cylindrical aluminum pole, diameter 105mm, H= 3000mm, spigot 60mm
AUN-POL-0010-XX
Cylindrical aluminum pole, diameter 105mm, H= 3500mm, spigot 60mm
AUN-POL-0011-XX
Cylindrical aluminum pole, diameter 105mm, H= 4000mm, spigot 60mm
 New Ordering Code : 7739-T-3-054-XX
Lamp : LED Socket : N/A Wattage : 75 W Beam : T4 Lumen : 9470 lm CCT : 4000 K Controller : On-Off Specsheet :
HYPERION 75
HYPERION 75

Accessories

AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-POL-0009-XX
Cylindrical aluminum pole, diameter 105mm, H= 3000mm, spigot 60mm
AUN-POL-0010-XX
Cylindrical aluminum pole, diameter 105mm, H= 3500mm, spigot 60mm
AUN-POL-0011-XX
Cylindrical aluminum pole, diameter 105mm, H= 4000mm, spigot 60mm

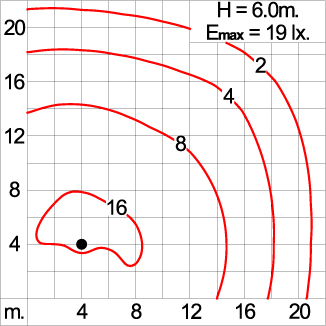

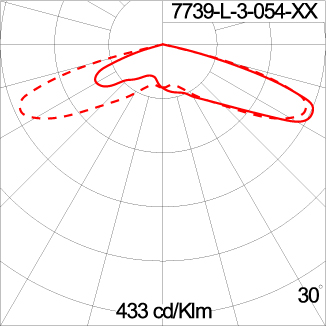

 New Ordering Code : 7739-L-3-054-XX
Lamp : LED Socket : N/A Wattage : 75 W Beam : T5 Lumen : 8910 lm CCT : 4000 K Controller : On-Off Specsheet :
HYPERION 75
HYPERION 75

Accessories

AUN-ACB-0005-00
Anchor bolt kit, aluminum pole
AUN-POL-0009-XX
Cylindrical aluminum pole, diameter 105mm, H= 3000mm, spigot 60mm
AUN-POL-0010-XX
Cylindrical aluminum pole, diameter 105mm, H= 3500mm, spigot 60mm
AUN-POL-0011-XX
Cylindrical aluminum pole, diameter 105mm, H= 4000mm, spigot 60mm
