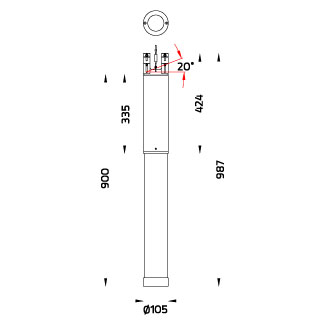

Mini PILLAR

PILLAR family is a cylindrical shaped light column, bollard and wall mount luminaire with unshielded and diffused symmetrical light distribution. This creates a uniform look throughout the lighting project. The classic slim shape is the perfect choice for small to large sized spaces. Its timeless design can be used with various architectural themes and blends equally well in parks. It is utilizing multiple LED with integrated constant current driver and surge protection device. State of the art dimming options are available as well as different color temperatures and wattage options. The standard height of this luminaire is presented in this catalogue; however, it can be customized according to specific requirement. An anchorage unit is available as an accessory. Catenary mounting of luminaires is great option for tasteful illumination of outdoor spaces. Flexible arrangement of the luminaire position enables lighting designers to set the light mood to a multitude of use cases. The innovative lever clamping system utilizes a single common tool for a trouble free easy installation. All commonly used catenary wires with a diameter of 4...8mm are suitable. Wire slope of up to 20° can be easily compensated. Catenary mount luminaires are equipped with a single prewired cable of 2000mm length. Double prewired cable for looping is available upon request.


Ordering Code : 1902-0-3-639-XX
Lamp : LED Socket : N/A Wattage : 14 W Beam : N/A Lumen : 810 lm CCT : 3000 K Controller : On-Off Specsheet :
Mini PILLAR
Mini PILLAR

Accessories

AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
Ordering Code : 1902-0-5-639-XX
Lamp : LED Socket : N/A Wattage : 14 W Beam : N/A Lumen : 810 lm CCT : 3000 K Controller : DALI Specsheet :
Mini PILLAR
Mini PILLAR

Accessories

AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
Ordering Code : 1902-0-3-640-XX
Lamp : LED Socket : N/A Wattage : 14 W Beam : N/A Lumen : 860 lm CCT : 4000 K Controller : On-Off Specsheet :
Mini PILLAR
Mini PILLAR

Accessories

AUN-CON-0009-00
IP68 connection device, cable diameter 5-9.5mm, On-Off
AUN-CON-0010-00
IP68 connection device 3 pole, cable diameter 5-9.5mm, with distribution block
AUN-CON-0013-00
IP68 connection device, cable diameter 7-11.5mm, On-Off
Ordering Code : 1902-0-5-640-XX
Lamp : LED Socket : N/A Wattage : 14 W Beam : N/A Lumen : 860 lm CCT : 4000 K Controller : DALI Specsheet :
Mini PILLAR
Mini PILLAR

Accessories

AUN-CON-0011-00
IP68 connection device, cable diameter 7.1-13mm, 1-10V or DALI
AUN-CON-0012-00
IP68 connection device 5 pole, cable diameter 7.1-13mm, with distribution block , 1-10V or DALI
AUN-CON-0014-00
IP68 connection device, cable diameter 8-12.5mm, 1-10V or DALI
